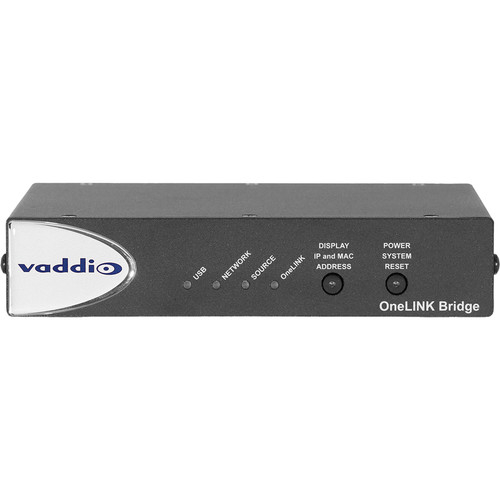

Vaddio, 999-9595-000, OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)

The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.

Features:

  • Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
  • Connects professional A/V equipment to PC applications via USB 3.0 media stream
  • Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
  • Two balanced audio inputs and two balanced audio outputs
  • Control via web interface or Telnet
  • Status lights
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Cable RunMax: 328' / 100 m
ResolutionUp to 1080p60 (Full HD)
Connectors1 x HD-SDI input
1 x HDMI input
2 x Mic/Line audio inputs
1 x USB 3.0, video output with PCM audio
2 x Line audio outputs
1 x OneLINK digital camera interface
1 x Network, IP streaming and control
1 x RS-232, control
1 x Power port
Control FeaturesWeb interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Power48 VDC, 1.36 A
Dimensions1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm
Weight1.7 lb / 0.8 kg
Package Weight3.43 lb
Box Dimensions (LxWxH)12.3 x 9.3 x 2.4"

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Cable RunMax: 328' / 100 m
ResolutionUp to 1080p60 (Full HD)
Connectors1 x HD-SDI input
1 x HDMI input
2 x Mic/Line audio inputs
1 x USB 3.0, video output with PCM audio
2 x Line audio outputs
1 x OneLINK digital camera interface
1 x Network, IP streaming and control
1 x RS-232, control
1 x Power port
Control FeaturesWeb interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Power48 VDC, 1.36 A
Dimensions1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm
Weight1.7 lb / 0.8 kg
Package Weight3.43 lb
Box Dimensions (LxWxH)12.3 x 9.3 x 2.4"
