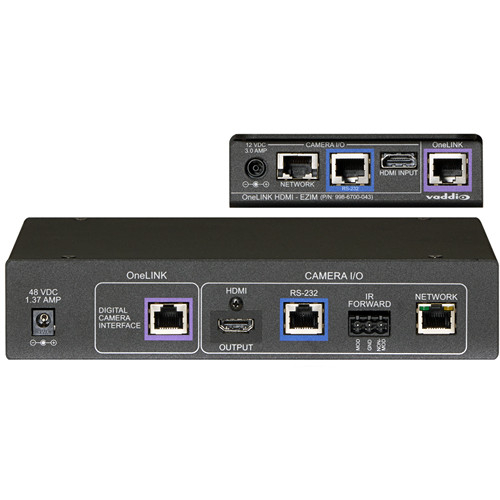

Vaddio, 999-9530-000, OneLINK HDBaseT Extender Set for Sony & Panasonic HDMI Cameras (328')

999-9530-000 Includes Only:

  • Vaddio OneLINK HDBaseT Extender Set for Sony & Panasonic HDMI Cameras (328')
  • 48 VDC, 1.36A Switching Power Supply
  • AC Power Cord
  • 12" HDMI Cable
  • 12" Sony 12 VDC Power Cable
  • 12" Panasonic 12 VDC Power Cable
  • 12" Cat5e Patch Network Cable
  • 12" RJ45 to 8-Pin Mini-DIN RS-232 Cable
  • Thin-Profile Wall Mount (Black)
  • 2 x 6-32 x 0.188" Phillips Flat Head Screws (Black)

The OneLINK HDBaseT Extender Set from Vaddio is a digital extension system for Sony and Panasonic HDMI cameras, extending HDMI video, power, network, and RS-232 control over a single Cat5e/6 cable to distances up to 328 ft. The OneLINK sends and regulates power to the camera, provides a bidirectional control channel for Ethernet and RS-232, and transmits/receives uncompressed HDMI video at resolutions up to 1080p60 and 2160p30.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
CompatibilitySony SRG-120DH & SRG-300H
Panasonic AW-HE40H & AW-HE130
Transmission Range328' (100m) over Cat5e/6
ResolutionUp to 1080p60, 2160p30
ConnectorsOneLINK HDMI Interface:
RJ45 shielded, interconnection
HDMI, video output
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
5.5 mm DC barrel, power input
3-Pin Phoenix, IR forward

OneLINK EZIM:
RJ45 shielded, interconnection
HDMI, video input
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
EIAJ-04, power output
IndicatorsOneLINK HDMI Interface:
2 x LEDs on Ethernet port

OneLINK EZIM:
2 x LEDs on Ethernet port
Operating Temperature32 to 104°F (0 to 40°C)
Operating Humidity (Relative)20 to 80%
Power Supply48 VDC, 1.36 A
DimensionsOneLINK HDMI Interface:
1.7 x 8.4 x 6.0" (43.7 x 212.7 x 152.4 mm)
OneLINK EZIM
3.9 x 4.3 x 1.2" (98.1 x 109.5 x 31.5 mm)
WeightOneLINK HDMI Interface:
1.6 lb (703 g)
OneLINK EZIM:
0.6 lb (250 g)
Package Weight7.865 lb
Box Dimensions (LxWxH)13 x 10.3 x 6.9"

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
CompatibilitySony SRG-120DH & SRG-300H
Panasonic AW-HE40H & AW-HE130
Transmission Range328' (100m) over Cat5e/6
ResolutionUp to 1080p60, 2160p30
ConnectorsOneLINK HDMI Interface:
RJ45 shielded, interconnection
HDMI, video output
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
5.5 mm DC barrel, power input
3-Pin Phoenix, IR forward

OneLINK EZIM:
RJ45 shielded, interconnection
HDMI, video input
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
EIAJ-04, power output
IndicatorsOneLINK HDMI Interface:
2 x LEDs on Ethernet port

OneLINK EZIM:
2 x LEDs on Ethernet port
Operating Temperature32 to 104°F (0 to 40°C)
Operating Humidity (Relative)20 to 80%
Power Supply48 VDC, 1.36 A
DimensionsOneLINK HDMI Interface:
1.7 x 8.4 x 6.0" (43.7 x 212.7 x 152.4 mm)
OneLINK EZIM
3.9 x 4.3 x 1.2" (98.1 x 109.5 x 31.5 mm)
WeightOneLINK HDMI Interface:
1.6 lb (703 g)
OneLINK EZIM:
0.6 lb (250 g)
Package Weight7.865 lb
Box Dimensions (LxWxH)13 x 10.3 x 6.9"
