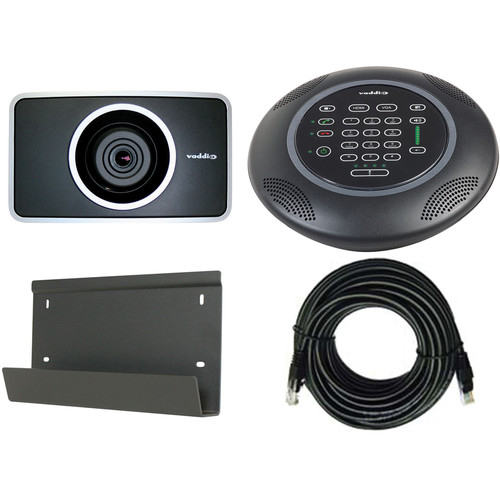

999-8920-000 Includes Only:

  • Vaddio BaseSTATION Deluxe System
  • Premium Wall Mount with Integrated Cable Tray
  • 25' Cat-6 SSTP Shielded Cable
  • 3.3' USB 2.0 Cable Type-A to Type-B Micro
  • 6' HDMI Cable
  • 24 VDC 2.0 A Power Supply and Power Cables

The BaseSTATION Deluxe System from Vaddio is a unified communications solution for video conferencing, which includes a camera and MicDock that incorporate all the audio and video functions for a small meeting room. The BaseSTATION uses an existing HD LED/LCD monitor for both audio and video display over a simple HDMI connection.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Image Sensor1/3" Type Progressive Scan CMOS Sensor with 1.3 Megapixels
Minimum Illumination0.1 LUX
Shutter Speed1/30 shutter speed
LensApprox. 3 x Optical Varifocal Zoom, 3.3mm-10.mm, Manual Zoom, Focus and Iris
Horizontal Field-of-View82.2° Wide End to Tele End, 27.4° Zoomed-all-in, 16:9 Format (94.3° wide end diagonal)
Pan & Tilt RangeManual Pan/Tilt: -30° down, +10° up and ± 3° Pan
Connectors1 x RJ-45, network
1 x HDMI, output
1 x RJ-45 Shielded, MicDock link
1 x 5.5 mm DC barrel, power input
Dimensions (W x H x D)10.94 x 6.17 x 3.97" (27.79 x 15.67 x 10.08 cm)
Weight2.81 lb (1.27 kg)
Microphones4 x Cardioid Electret Condenser
Audio ProcessingFour Acoustical Echo Cancellers (one per mic), Automatic Gain Control, Noise Reduction, Automatic Microphone Mixing, HighPass and Low Pass Filters
Frequency Response20 Hz - 20 kHz
Dynamic Range> 90 dB
THD + Noise< 0.2%
CompatibilitySkype, Cisco Jabber, Adobe Connect 8, Microsoft Lync, WebEx, Citrix GoToMeeting, LifeSize ClearSea, Polycom M100, Vidyo,Google Plus
Connectors1 x micro USB, type B
1 x RJ-45, network
1 x HDMI, input
1 x 15-pin Sub-D, VGA input
1 x RJ-45 Shielded, MicDock link
ControlsDialing
Mute & Volume
PIP
PC Video Select
1 x Power On/Off switch
Dimensions (&#216; x H)9.25 x 1.70" (23.50 x 4.32 cm)
Weight1.67 lb (0.76 kg) approximate

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Product Details
Image Sensor1/3" Type Progressive Scan CMOS Sensor with 1.3 Megapixels
Minimum Illumination0.1 LUX
Shutter Speed1/30 shutter speed
LensApprox. 3 x Optical Varifocal Zoom, 3.3mm-10.mm, Manual Zoom, Focus and Iris
Horizontal Field-of-View82.2° Wide End to Tele End, 27.4° Zoomed-all-in, 16:9 Format (94.3° wide end diagonal)
Pan & Tilt RangeManual Pan/Tilt: -30° down, +10° up and ± 3° Pan
Connectors1 x RJ-45, network
1 x HDMI, output
1 x RJ-45 Shielded, MicDock link
1 x 5.5 mm DC barrel, power input
Dimensions (W x H x D)10.94 x 6.17 x 3.97" (27.79 x 15.67 x 10.08 cm)
Weight2.81 lb (1.27 kg)
Microphones4 x Cardioid Electret Condenser
Audio ProcessingFour Acoustical Echo Cancellers (one per mic), Automatic Gain Control, Noise Reduction, Automatic Microphone Mixing, HighPass and Low Pass Filters
Frequency Response20 Hz - 20 kHz
Dynamic Range> 90 dB
THD + Noise< 0.2%
CompatibilitySkype, Cisco Jabber, Adobe Connect 8, Microsoft Lync, WebEx, Citrix GoToMeeting, LifeSize ClearSea, Polycom M100, Vidyo,Google Plus
Connectors1 x micro USB, type B
1 x RJ-45, network
1 x HDMI, input
1 x 15-pin Sub-D, VGA input
1 x RJ-45 Shielded, MicDock link
ControlsDialing
Mute & Volume
PIP
PC Video Select
1 x Power On/Off switch
Dimensions (&#216; x H)9.25 x 1.70" (23.50 x 4.32 cm)
Weight1.67 lb (0.76 kg) approximate
