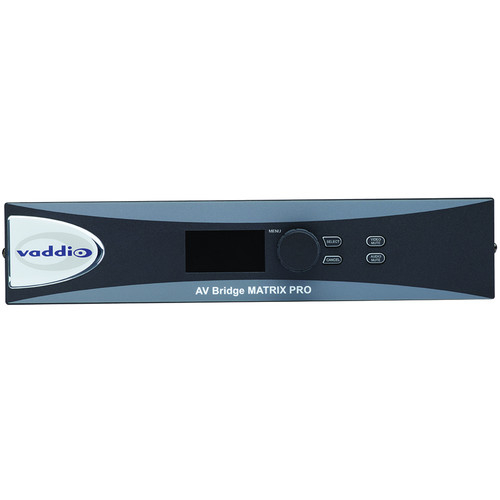

The Audio-Visual Bridge Matrix PRO from Vaddio enables you to mix multiple audio and video sources into a single USB stream. You can incorporate multiple cameras, microphones and loudspeakers into a PC-based room design. The typical PC limits the amount of connected USB peripherals to one video and one audio input device. This bridge expands the PC's capabilities to incorporate up to eight independent audio inputs and four independent video inputs, into the USB mixer.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Connectors1 x 9-pin Sub-D female, RS-232 serial port
1 x 12-pin terminal, 10 trigger inputs
4 x RJ45, EasyMic ports
4 x 3-pin terminal, input balanced or unbalanced
4 x 3-pin terminal, output balanced or unbalanced
1 x 24 VDC barrel, power
1 x RJ45, network
1 x USB 2.0 Type-B, female
3 x RJ-45, RS232
3 x RJ-45, power and video
3 x HDMI, input
1 x 15-pin Sub-D, PC RGBHV input
1 x HDMI, PC input
Controls1 x push button, select
1 x push button, cancel
1 x push button, video mute
1 x push button, audio mute
1 x turn dial, menu
Encoding ResolutionsIP (H.264 & AAC Audio) up to 1080p/30
USB 2.0 (MJPEG & PCM Audio) up to 720p/30 (limits of USB 2.0)
Video ProcessingAuto-scaling, noise filter, de-interlacing
Audio ProcessingCompressor, EQ Filter
CompatibilityEasyUSB MicPODS, Ceiling MicPODs
Interfaces with ZoomSHOT, WideSHOT, and Vaddio HD PTZ cameras
Supported Media PlayersQuick-Time
RealPlayer
VLC Media Player (IP Streaming)
Dimensions (H x W x D)3.5 x 18.9 x 8.0" (88.1 x 480.8 x 203.2 mm)
Weight5.6 lb (2.5 kg)
Package Weight9.55 lb
Box Dimensions (LxWxH)25 x 12.6 x 6.9"

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Connectors1 x 9-pin Sub-D female, RS-232 serial port
1 x 12-pin terminal, 10 trigger inputs
4 x RJ45, EasyMic ports
4 x 3-pin terminal, input balanced or unbalanced
4 x 3-pin terminal, output balanced or unbalanced
1 x 24 VDC barrel, power
1 x RJ45, network
1 x USB 2.0 Type-B, female
3 x RJ-45, RS232
3 x RJ-45, power and video
3 x HDMI, input
1 x 15-pin Sub-D, PC RGBHV input
1 x HDMI, PC input
Controls1 x push button, select
1 x push button, cancel
1 x push button, video mute
1 x push button, audio mute
1 x turn dial, menu
Encoding ResolutionsIP (H.264 & AAC Audio) up to 1080p/30
USB 2.0 (MJPEG & PCM Audio) up to 720p/30 (limits of USB 2.0)
Video ProcessingAuto-scaling, noise filter, de-interlacing
Audio ProcessingCompressor, EQ Filter
CompatibilityEasyUSB MicPODS, Ceiling MicPODs
Interfaces with ZoomSHOT, WideSHOT, and Vaddio HD PTZ cameras
Supported Media PlayersQuick-Time
RealPlayer
VLC Media Player (IP Streaming)
Dimensions (H x W x D)3.5 x 18.9 x 8.0" (88.1 x 480.8 x 203.2 mm)
Weight5.6 lb (2.5 kg)
Package Weight9.55 lb
Box Dimensions (LxWxH)25 x 12.6 x 6.9"
