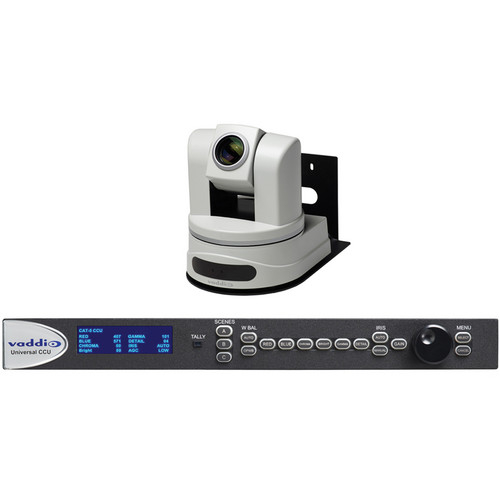

Vaddio, 999-6977-000, WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera (NTSC)

999-6977-000 Includes Only:

Vaddio WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera (NTSC)
Vaddio PowerVIEW HD-30 High Definition True 1080p 1/2.8" Progressive Scan MOS PTZ Camera
Vaddio CCU Slot Card for ClearVIEW HD-20 / 19 / 18 Cameras
36VDC Switching Power Supply with Power Cord
2-Pin Phoenix-Type (Molex 5.0mm Euro Style) Connector
Vaddio Thin Profile Wall Mount for ClearVIEW HD-18 PTZ Camera
Vaddio EZCamera Control Adapter
Vaddio IR Remote Commander for Vaddio/Sony Camera Packages

Suitable for conference rooms, Houses of Worship, and broadcast applications, the Vaddio WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera shoots in a variety of U.S. & European compatible frame rates. Equipped with a 30x power zoom the camera is suitable for large interior locations. The included CCU provides you with expanded capabilities beyond just pan, tilt, and zoom. The camera shoots Full HD at 1080p or 1080i, as well as 720p. The CCU unit outputs over HD video HDMI or analog component connections.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Zoom

30x optical

Focal Length

4.3 to 129.0 mm

F-Stop

f/1.6 to f/4.7

Image Sensor

1/2.8-type MOS, 2.2 Mp, Progressive Scan

Minimum Illumination

Color: 0.4 lux (F1.6, 1/30 sec, 50 IRE, Gain: High)
B&W: 0.04 lux (F1.6, 1/30 sec, 50 IRE, Gain: High)

Video Resolution

HD
1080p 25, 29.97, 50, 59.94
1080i 50, 59.94
720p 50, 59.94

SD
480p 59.97
576p 50

Video Output Format

HDMI (YCbCr for HDMI and sRGB for DVI), Analog Component (YPbPr)
HSDS (Power, Differential HD Video & RS-232 Control)

Signal to Noise Ratio

>50 dB (AGC: Off)

Pan Range

Pan: 170 to -170
Tilt: 90 to -30

Preset Positions

16 (internal) and 6 recalled via the included Vaddio IR Remote Commander

Image Controls

Red & Blue Gain, Detail, Chroma, Gamma, Pedestal, Iris, and Gain (Controls available through RS-232 Control and Quick-Connect CCU and Slot Card)

Tally Light

Available through RS-232 control

Video Selection Button

16-Position Rotary Switch: Used to set HD video resolution output

Camera

Settings
10-Position Dip Switch: Settings for IR select, Baud Rate 9600, Image Flip, Unpublished Functions

Dimensions (H x W x D)

7.8 x 6.7 x 7.1" / 198.4 x 169.4 x 179.3 mm

Weight

5.6 lb / 2.6 kg

Connectors

Power: 5.5 mm OD x 2.5 mm ID
RJ-45: Supplies 36 volts to EZIM slot card
RS-232 In: In RJ-45 connector (accepts RS-232 from ProductionVIEW or other nn-daisy-chain control systems
RS-232 Out: In RJ-45 connector (passes RS-232 and sync video feet to camera EZIM
Tally: 2-pin Phoenix type connector
Video from Camera RJ-45: Accepts differential video from EZIM Slot Card

Video Output

HD-YPbPr on DE-15F connector
HDMI on HDMI-F connector
HD-SDI on Edge mount carrier class, Gold BNC-F (supports 3GB/s Single Link 1080p 60 HD-SDI)

Video Adjustments

Y-Gain
Skew

Maximum Distance

Cat 5: 500' / 152 m

Dimensions (H x W x D)

1.7 x 18.9 x 7" / 43.7 x 480 x 178 mm
