999-3029-000 Includes Only:

  • Vaddio CeilingView HD-18 DocCAM with Quick-Connect USB
  • Quick-Connect USB Interface
  • IR Remote Control
  • Tile Support Brace
  • AC Cord Set
  • 24 VDC, 2.08A Power Supply
  • EZCamera Control Adapter

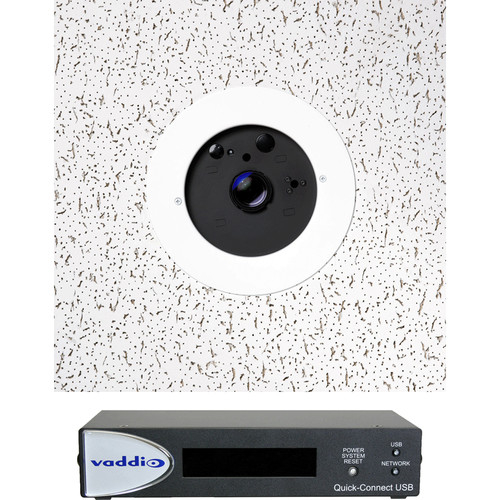

The CeilingView HD-18 DocCAM with Quick-Connect USB from Vaddio is an HD ceiling document camera designed for use with HD videoconferencing codecs, HD monitors, and HD presentation applications. It features an 18x optical zoom lens and is built around a 1/3” CCD sensor for HD color video image acquisition, even in low light applications. This system has HDMI and analog YPbPr video outputs, USB 2.0 or IP (RTSP) streaming with H.264 compression, and even RGBHV signal output on the back of the camera module enclosure. It is suitable for use at a wide range of HD video applications including UC conferencing, videoconferencing, corporate boardrooms, auditoriums, medical, government, and distance learning.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Image Device1/3" CCD, 1.3 MP
Lens18x Optical zoom lens, F= 4.7 to 84.6 mm
Minimum Object Distance3' (1 m) Telephoto end
Viewing AngleHorizontal: 3.2 to 55.2°
16:9 Format
Minimum Illumination1.8 Lux (F1.6, 50 IRE)
Serial ControlProtocol: RS-232
Resolutions1080p60 / 59.94 / 50 / 30 / 25 Frames
1080i59,94 / 50 Fields
720p59.94 / 50 Frames
RGBHV Resolutions1024 x 768 at 60 Hz (4:3)
1280 x 800 at 60 Hz (16:9)
1680 x 1050 at 60 Hz (16:10) – Overrides YPbPr & HDMI
Dimensions (H x W x D)5 x 8 x 8" (13 x 20 x 20 cm)
Weight5.1 lb (2.3 kg) with Camera module, trim ring, and aluminum tile support brace
Video OutputsUSB 2.0 (MJPEG): Resolution up to 720p30 (USB 2.0 MJPEG)
H.264 (IP) on Ethernet: Resolution up to 1080p30 (H.264 over IP)
Analog Component (YPbPr): Resolution up to 1080p60
HDMI: Resolution up to 1080p60
ConnectorsPower: 5.5 mm OD x 2.5 mm ID coaxial connector
YPbPr: DE-15 (15-pin HD), female
HDMI, female
RS-232 Input: RJ-45 jack
RS-232 Output: RJ-45 jack
EZ-Power Video: RJ-45 jack (power and differential HD video)
CAT-5e Cable2
CAT-5 Cable DistanceMaximum distance up to 100' (30.5 m)
Power Supply24 VDC, 2.08 A Switching power supply
Dimensions1/2" Rack size
W x D x H: 8 x 6 x 2" (20 x 15 x 5 cm)
Weight1.4 lb (0.6 kg)

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Image Device1/3" CCD, 1.3 MP
Lens18x Optical zoom lens, F= 4.7 to 84.6 mm
Minimum Object Distance3' (1 m) Telephoto end
Viewing AngleHorizontal: 3.2 to 55.2°
16:9 Format
Minimum Illumination1.8 Lux (F1.6, 50 IRE)
Serial ControlProtocol: RS-232
Resolutions1080p60 / 59.94 / 50 / 30 / 25 Frames
1080i59,94 / 50 Fields
720p59.94 / 50 Frames
RGBHV Resolutions1024 x 768 at 60 Hz (4:3)
1280 x 800 at 60 Hz (16:9)
1680 x 1050 at 60 Hz (16:10) – Overrides YPbPr & HDMI
Dimensions (H x W x D)5 x 8 x 8" (13 x 20 x 20 cm)
Weight5.1 lb (2.3 kg) with Camera module, trim ring, and aluminum tile support brace
Video OutputsUSB 2.0 (MJPEG): Resolution up to 720p30 (USB 2.0 MJPEG)
H.264 (IP) on Ethernet: Resolution up to 1080p30 (H.264 over IP)
Analog Component (YPbPr): Resolution up to 1080p60
HDMI: Resolution up to 1080p60
ConnectorsPower: 5.5 mm OD x 2.5 mm ID coaxial connector
YPbPr: DE-15 (15-pin HD), female
HDMI, female
RS-232 Input: RJ-45 jack
RS-232 Output: RJ-45 jack
EZ-Power Video: RJ-45 jack (power and differential HD video)
CAT-5e Cable2
CAT-5 Cable DistanceMaximum distance up to 100' (30.5 m)
Power Supply24 VDC, 2.08 A Switching power supply
Dimensions1/2" Rack size
W x D x H: 8 x 6 x 2" (20 x 15 x 5 cm)
Weight1.4 lb (0.6 kg)
