999-2704-000B Includes Only:

  • Vaddio WallVIEW 70 PTZ Camera (Black)
  • Sony EVI-D70 1/4" CCD Color Pan/Tilt/Zoom Communication Camera
  • Vaddio IR Remote Commander for Sony
  • Vaddio EZCamera Cable Shoe Interface
  • Vaddio Thin Profile Wall Mount Bracket for SONY EVI D70 (Black)
  • 12' (3.66m) S-Video Cable
  • 12' (3.66m) Composite Video Cable with RCA Connectors
  • Vaddio Quick-Connect Box
  • EZCamera Control Adapter
  • 18 VDC PowerRite Power Supply with Power Cable
  • Mounting Hardware

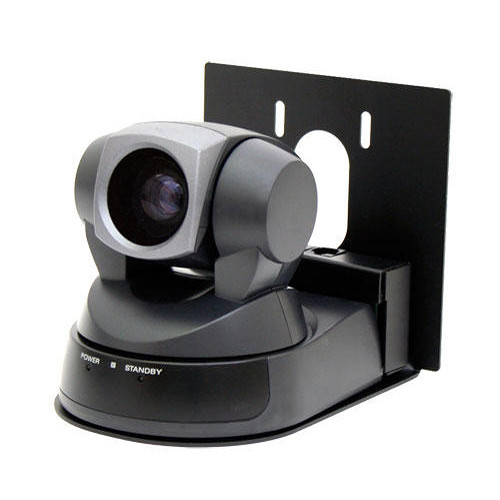

The Vaddio WallVIEW 70 PTZ Camera system has a thin-profile wall-mount bracket for easy and quick installation of the Sony EVI-D70 PTZ camera. The EVI-D70 is a high-quality 1CCD image camera that has a resolution of 470 TVL, and offers 18x optical & 12x digital zoom with a high-speed and quiet pan/tilt wide-angle view. The camera is equipped with AWB (Auto White Balance), AEC (Automatic Exposure Control), and backlight compensation features.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Signal SystemNTSC
Image Sensor1/4 Type EXView HAD CCD with electronic flip function for image inversions
Effective Pixels768 x 494
Horizontal Resolution470 TV Lines (wide end)
Lens18X Zoom, f=4.1m (wide) to 73.8mm (tele), F1.4 to F3.0
Horizontal Angle of View2.7 (tele end) to 48 (wide end)
Minimum Object Distance (M.O.D.)10mm (wide end); 800mm (tele end)
Minimum Illumination1 lx (F1.4)
Auto ExposureAuto/Manual/Priority AE; Exposure Compensation; Back Light Compensation
Shutter Speed1 to 1/10,000 s
GainAuto/Manual (-3 to +28dB, 2dB Steps)
White BalanceAuto/ATW/Indoor/Outdoor/One Push/Manual
Signal to Noise Ratio>50dB
Pan/Tilt AdjustmentPan ± 170 (Max Speed 100/s); Tilt -30 to + 90 (Max Speed 90/s)
PresetPosition Preset: 6 Positions
Picture EffectsNeg Art; Black and White
Video OutputComposite and Y/C
Control ConnectorRS-232C (VISCA); Baud Rate: 9.6Kb/s, 38.4Kb/s; RJ-45
PowerPower Supply: 18 VDC PowerRite
Power Supply (optional): 24 VDC PowerRite (available as accessory - some restrictions apply)
EnvironmentOperating Temperature: 32 to 40F (0 to 40C)
Storage Temperature: -4 to +140F (-20 to +60C)
Dimension (DxWxH)5.8 x 5.3 x 5.8" (144 x 132 x 144mm)
Weight2.1 lbs (950g)
Package Weight10.85 lb
Box Dimensions (LxWxH)17.9 x 14 x 10.2"

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Product Details
Signal SystemNTSC
Image Sensor1/4 Type EXView HAD CCD with electronic flip function for image inversions
Effective Pixels768 x 494
Horizontal Resolution470 TV Lines (wide end)
Lens18X Zoom, f=4.1m (wide) to 73.8mm (tele), F1.4 to F3.0
Horizontal Angle of View2.7 (tele end) to 48 (wide end)
Minimum Object Distance (M.O.D.)10mm (wide end); 800mm (tele end)
Minimum Illumination1 lx (F1.4)
Auto ExposureAuto/Manual/Priority AE; Exposure Compensation; Back Light Compensation
Shutter Speed1 to 1/10,000 s
GainAuto/Manual (-3 to +28dB, 2dB Steps)
White BalanceAuto/ATW/Indoor/Outdoor/One Push/Manual
Signal to Noise Ratio>50dB
Pan/Tilt AdjustmentPan ± 170 (Max Speed 100/s); Tilt -30 to + 90 (Max Speed 90/s)
PresetPosition Preset: 6 Positions
Picture EffectsNeg Art; Black and White
Video OutputComposite and Y/C
Control ConnectorRS-232C (VISCA); Baud Rate: 9.6Kb/s, 38.4Kb/s; RJ-45
PowerPower Supply: 18 VDC PowerRite
Power Supply (optional): 24 VDC PowerRite (available as accessory - some restrictions apply)
EnvironmentOperating Temperature: 32 to 40F (0 to 40C)
Storage Temperature: -4 to +140F (-20 to +60C)
Dimension (DxWxH)5.8 x 5.3 x 5.8" (144 x 132 x 144mm)
Weight2.1 lbs (950g)
Package Weight10.85 lb
Box Dimensions (LxWxH)17.9 x 14 x 10.2"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
