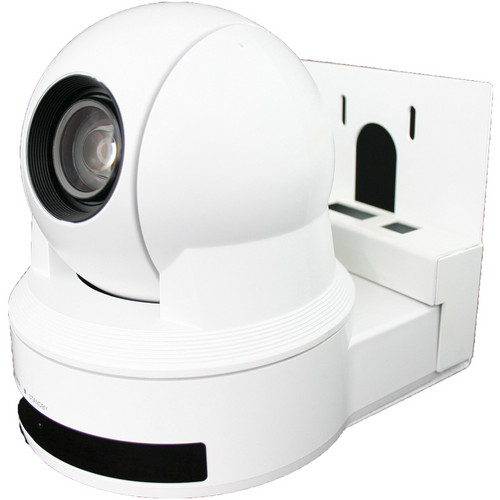

Vaddio, 999-2684-000W, WallVIEW Pan/Tilt/Zoom D80 Camera System (NTSC, White)

999-2684-000W Includes Only:

  • Vaddio WallVIEW Pan/Tilt/Zoom D80 Camera System (NTSC, White)
  • Vaddio Sony EVI-D80 SD PTZ Camera (NTSC, White)
  • EZCamera Cabling Shoe (White)
  • PowerRite 18VDC, 2.75A Power Supply
  • Vaddio EZCamera Control Adapter
  • North American Power Cord
  • Thin Profile Wall Mount with Mounting Hardware
  • 12' (3.66m) S-Video Cable
  • 12' (3.66m) Composite Video Cable
  • Sony IR Remote Control

The white WallVIEW Pan/Tilt/Zoom D80 Camera System (NTSC) from Vaddio is built around the white Sony EVI-D80 SD PTZ Camera and also includes a thin profile wall mount and the EZCamera Cabling System. The EZCamera cabling system allows the user/installer to use 2 CAT5 cables (sold separately) to run video, power, and control. Also included is the EZCamera Shoe built for the back panel of the D80 Camera and the PowerRite power supply.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Video SignalNTSC
SynchronizationInternal synchronization
Image Device1/4"-type CCD
Lens18x (optical), 12x (digital)
F 4.1 to 73.8 mm, f/1.4 to f/3.0
Horizontal Angle of View (Tele to Wide): 2.8 to 48.0°
Minimum Object DistanceWide to Tele End: 0.4 to 31.5" (10.0 to 800.0 mm)
Default: 11.42" (290.00 mm)
Minimum IlluminationLess or equal to 0.4 lux (f/1.4) with 50 IRE
Shutter Speed1 to 10,000 sec
Video S/N RatioMore or equal to 50 dB
Pan/TiltHorizontal
±170°
Maximum Panning Speed: 100°/sec
Vertical: 90, -20°
Maximum Tilting Speed: 90°/sec
Video OutputComposite (VBS Video Out): 1 x RCA phono jack, 75 unbalanced, 1 Vpp (at 75 termination)
Synchronization: negative S-Video output
(Y/C Video Out): Mini DIN 4-pin type
Input/OutputControl
VISCA In: Mini DIN 8-pin type, RS-232C
VISCA Out: Mini DIN 8-pin type, RS-232C
VISCA RS-422: 9-pin
Power ConnectorJEITA type4 (12 VDC)
Input Voltage12 VDC (10.8 to 13.2 VDC)
Current Consumption0.5 A maximum (at 12 VDC)
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
AngleInstallation: Less than ±15° to the horizontal surface
Dimensions (W x H x D)5.71 x 6.46 x 6.46" (145.00 x 164.00 x 164.00 mm); excluding protruding parts
Weight50.79 oz (1,440.0 g)
Remote Commander: 3.88 oz (110.00 g)

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Product Details
Video SignalNTSC
SynchronizationInternal synchronization
Image Device1/4"-type CCD
Lens18x (optical), 12x (digital)
F 4.1 to 73.8 mm, f/1.4 to f/3.0
Horizontal Angle of View (Tele to Wide): 2.8 to 48.0°
Minimum Object DistanceWide to Tele End: 0.4 to 31.5" (10.0 to 800.0 mm)
Default: 11.42" (290.00 mm)
Minimum IlluminationLess or equal to 0.4 lux (f/1.4) with 50 IRE
Shutter Speed1 to 10,000 sec
Video S/N RatioMore or equal to 50 dB
Pan/TiltHorizontal
±170°
Maximum Panning Speed: 100°/sec
Vertical: 90, -20°
Maximum Tilting Speed: 90°/sec
Video OutputComposite (VBS Video Out): 1 x RCA phono jack, 75 unbalanced, 1 Vpp (at 75 termination)
Synchronization: negative S-Video output
(Y/C Video Out): Mini DIN 4-pin type
Input/OutputControl
VISCA In: Mini DIN 8-pin type, RS-232C
VISCA Out: Mini DIN 8-pin type, RS-232C
VISCA RS-422: 9-pin
Power ConnectorJEITA type4 (12 VDC)
Input Voltage12 VDC (10.8 to 13.2 VDC)
Current Consumption0.5 A maximum (at 12 VDC)
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
AngleInstallation: Less than ±15° to the horizontal surface
Dimensions (W x H x D)5.71 x 6.46 x 6.46" (145.00 x 164.00 x 164.00 mm); excluding protruding parts
Weight50.79 oz (1,440.0 g)
Remote Commander: 3.88 oz (110.00 g)
