999-2304-000 Includes Only:

  • Vaddio CeilingVIEW 70 PTZ Camera System
  • Sony EVI-D70C/W PTZ Camera
  • Vaddio IR Remote Commander
  • Concealed In-Ceiling Enclosure with Trim Ring
  • EZCamera Camera Interface
  • EZCamera Quick-Connect Box
  • EZCamera Control Adapter
  • PowerRite Power Supply
  • AC Power Adapter Cable
  • 12' (3.66m) S-Video cable
  • Screws/Mounting Hardware

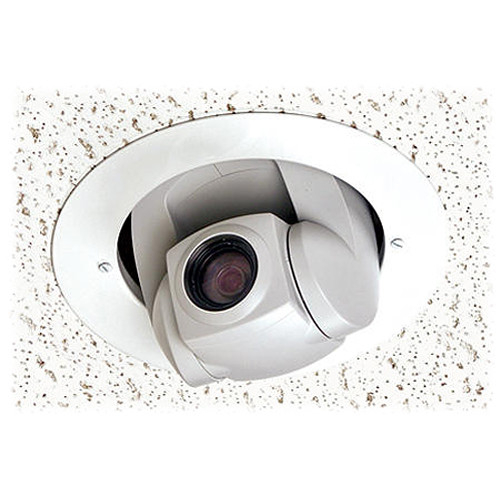

The Vaddio CeilingVIEW 70 PTZ Ceiling Mounted System includes the Sony EVI-D70C/W PTZ network camera and everything needed to install the camera recessed inside a hard or drop ceiling. The round metal backbox fits completely inside the ceiling and attaches to the ceiling grid via two 24/7.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
ApplicationVideo Conferencing, Web Casting, Day and Night Security
Image Device1/4" CCD
Signal SystemNTSC
Lens4.1-73.8mm (18x Optical Zoom) f/1.4-3.0
Additional 12x Digital Zoom
Number of Pixels379,000 Pixels
Horizontal Resolution470 TV Lines
Minimum Illumination1 Lux with f/1.4
Signal-to-Noise Ratio>50dB
Maximum Horizontal Field-of-View48°
Pan Angle±170° from Center
Pan Speed100°/s (max)
Tilt Angle90° Up,-30° Horizontal
Tilt Speed90°/s
Signal ConnectorsComposite Video: RCA (x1 Output)
S-Video: 4-Pin (x1 Output)
Control: RS-232C (x1 Input, x1 Output)
Control:RS-422 (x1 Input)
Power: Coaxial (x1 Input)
Power Requirements10.8-13.2VDC (includes power supply)
Power Consumption12W
Operating Temperature32-104°F (0-40°C)
Dimensions (WxHxD)Camera: 5.3 x 5.8 x 5.8" (13.2 x 14.4 x 14.4cm)
Backbox: 8.8 x 2.6 x 8.8" (222 x 67 x 222mm)
WeightCamera: 2 lbs 2 oz (950g)
Backbox: 7 lbs (3.2kg)
Package Weight13.45 lb
Box Dimensions (LxWxH)25.8 x 12.4 x 12.2"

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Product Details
ApplicationVideo Conferencing, Web Casting, Day and Night Security
Image Device1/4" CCD
Signal SystemNTSC
Lens4.1-73.8mm (18x Optical Zoom) f/1.4-3.0
Additional 12x Digital Zoom
Number of Pixels379,000 Pixels
Horizontal Resolution470 TV Lines
Minimum Illumination1 Lux with f/1.4
Signal-to-Noise Ratio>50dB
Maximum Horizontal Field-of-View48°
Pan Angle±170° from Center
Pan Speed100°/s (max)
Tilt Angle90° Up,-30° Horizontal
Tilt Speed90°/s
Signal ConnectorsComposite Video: RCA (x1 Output)
S-Video: 4-Pin (x1 Output)
Control: RS-232C (x1 Input, x1 Output)
Control:RS-422 (x1 Input)
Power: Coaxial (x1 Input)
Power Requirements10.8-13.2VDC (includes power supply)
Power Consumption12W
Operating Temperature32-104°F (0-40°C)
Dimensions (WxHxD)Camera: 5.3 x 5.8 x 5.8" (13.2 x 14.4 x 14.4cm)
Backbox: 8.8 x 2.6 x 8.8" (222 x 67 x 222mm)
WeightCamera: 2 lbs 2 oz (950g)
Backbox: 7 lbs (3.2kg)
Package Weight13.45 lb
Box Dimensions (LxWxH)25.8 x 12.4 x 12.2"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
