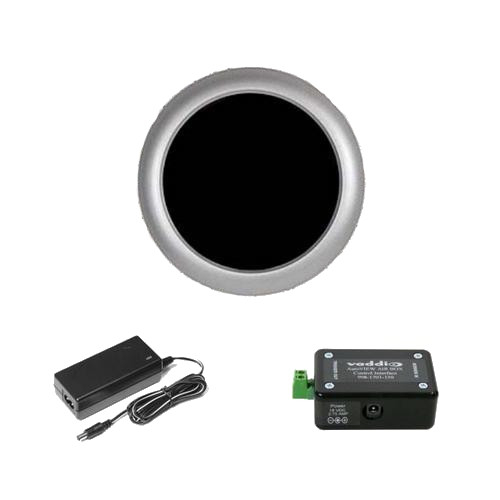

999-1701-100 Includes Only:

• (1) AutoVIEW Active IR Sensor (modified Optex with RJ-45 connector to support Cat-5e cabling)
• (1) Dark Acrylic Lens Cover
• (1) AutoVIEW Control Interface with 2-pin Phoenix type connector
• (1) 18VDC, 2.75 Amp Switching Power Supply
• (1) Power Cord (International version ships with UK and Euro power cables)

The Vaddio™ AutoVIEW IR Sensor Kit is a ceiling-mounted presenter camera control system that provides for automated presenter control over the Vaddio family of camera switching systems. The Vaddio AutoVIEW IR Sensor Kit includes the ceiling-mounted active IR sensor with a dark acrylic lens, the AutoVIEW IR Control Interface and 18 VDC power supply with power cord. This AutoVIEW IR Kit is compatible with the following Vaddio automated presenter controlled switchers and controllers. The AutoVIEW IR Sensor Kit provides a simple contact closure to trigger any camera preset or video input switch that these controllers and switchers can provide. The AutoVIEW IR Control Interface powers the IR Sensor via the Cat-5e cable. When the IR sensor picks up the presenter passing under the sensor, a contact pair is relayed down the Cat-5e through the AIR Box out of the Phoenix connector to the trigger input of the AutoPresenter. The trigger will change the input and/or the camera's PTZ position allowing for automated presenter camera control.
