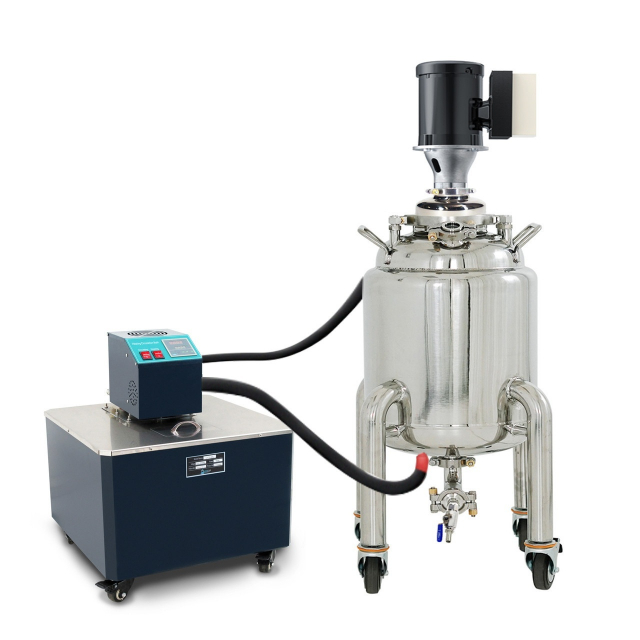

USA Lab, 25L-STIR-TK, 25L/50lb Mixing Solvent Tank w/ RH-30L and 1/2 HP Motor

mixing vessel provides superior quality at an affordable price. With a 1/2 HP USA made variable speed motor you can begin mixing with ease and reliability. Each vessel comes with a 30L 4 kW heater for maximum heat transfer as well as a drain port for easy draining.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Tank Specifications
Material 304 Stainless Steel
Capacity 25L
Lid Size 6" Tri-Clamp
Tank PSI Rating 150psi
Motor Gasket PSI Rating 3psi
Lid Connections (4 x 1/2" Compression Ports) (1x 6" Tri-Clamp x 3" Tri-Clamp)
Drain Connection 1.5" Tri-clamp ( to 1/2" Barb)
Exterior Dimensions 19" L x 20" W x 33" H
Heater Specifications
Reservoir Capacity 30L
Reservoir Dimensions 20" x 20" x 24"
Temperature Range Room Temperature to 200°C SILICONE OIL ONLY
Power Requirements 220-240V 50-60Hz 30A Single Phase 6-30P Plug
Heating Wattage 5000W / 22.7A
Temperature Accuracy +/- 0.2°C
Pump Flow 18.3L/Min
Total Pump Lift 6m
Connection Size 1/2" MNPT
Dimensions 19" x 19" x 24"
Weight 68lbs
Stirrer Specifications
Horse Power 0.5
Impeller Diameter 4" (2 included)
Power Requirements 110-120V 50-60Hz 15A
Motor 1/2 HP, TEFC, IP55
RPM 350-1750
Mount Type 3" Tri-Clamp
Bearing SS, Carbon Steel Coupler
Seal FDA Lip Seal, Duralast 4331 Seal w/ Duraloy 5163 Case, Max 3PSI Continuous
Shaft .625" Diameter x 32" Exposed - 316SS, No Polish
Impeller (2) 4" Marine Propeller, 3 Blades, Low Shear, 316SS, Set Screw
Tank Size

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Product Details
Tank Specifications
Material 304 Stainless Steel
Capacity 25L
Lid Size 6" Tri-Clamp
Tank PSI Rating 150psi
Motor Gasket PSI Rating 3psi
Lid Connections (4 x 1/2" Compression Ports) (1x 6" Tri-Clamp x 3" Tri-Clamp)
Drain Connection 1.5" Tri-clamp ( to 1/2" Barb)
Exterior Dimensions 19" L x 20" W x 33" H
Heater Specifications
Reservoir Capacity 30L
Reservoir Dimensions 20" x 20" x 24"
Temperature Range Room Temperature to 200°C SILICONE OIL ONLY
Power Requirements 220-240V 50-60Hz 30A Single Phase 6-30P Plug
Heating Wattage 5000W / 22.7A
Temperature Accuracy +/- 0.2°C
Pump Flow 18.3L/Min
Total Pump Lift 6m
Connection Size 1/2" MNPT
Dimensions 19" x 19" x 24"
Weight 68lbs
Stirrer Specifications
Horse Power 0.5
Impeller Diameter 4" (2 included)
Power Requirements 110-120V 50-60Hz 15A
Motor 1/2 HP, TEFC, IP55
RPM 350-1750
Mount Type 3" Tri-Clamp
Bearing SS, Carbon Steel Coupler
Seal FDA Lip Seal, Duralast 4331 Seal w/ Duraloy 5163 Case, Max 3PSI Continuous
Shaft .625" Diameter x 32" Exposed - 316SS, No Polish
Impeller (2) 4" Marine Propeller, 3 Blades, Low Shear, 316SS, Set Screw
Tank Size
Note

Note: Please read description carefully. Do not base your order on the picture presented.
