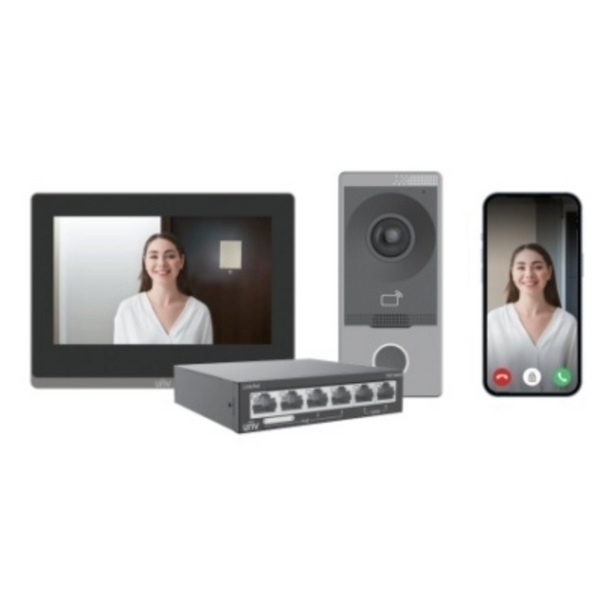

| Villa Outdoor Station |
| Power supply | DC12V plusmn;25%, PoE power supply |
| Card capacity | 10000 |
| Operating system | Linux |
| Illuminator | IR light (adaptive) |
| WDR | Support |
| FOV | - Horizontal: 124.3°
- Vertical: 67.5°
- Diagonal: 147.2°
|
| Power consumption | < 10W |
| Volume adjustment | Support |
| Audio quality | Noise reduction, echo cancellation |
| Audio input | Built-in mic |
| Audio output | Built-in speaker |
| Protocol | Uniview private protocol |
| Audio compression format | PCM, G711, MP3 |
| Audio compression bit rate | 128kbps |
| Button | Call button |
| Ingress prot | IP65 (Apply waterproof glue to the gap between the device and the wall.)
IK08 |
| Weight | 0.267kg |
| Mount method | Wall mount, flush m |
| Interface | Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
| Communication mode | 100Mbps network interface, supports IEEE802.3af; Wi-Fi |
| Dimensions (LxHxW | 79mm*171mm*34mm |
| Operating environment | 30°C to 60°C, 10% to 90% RH noncondensing, outdoor |
| Indoor Station |
| Power supply | DC12V plusmn;25%, PoE pow |
| Screen resolution | 1024 x 600 |
| Display screen | 7-inch ultra-thin TFT LCD touch screen |
| Operating system | Linux |
| Audio quality | Noise reduction, echo cancellation, auto gain cont |
| Audio input | Built-in mic |
| Audio output | Built-in speaker |
| Audio compression format | MP3, G711 |
| Audio compression bit rate | 128kbps |
| Protocol | Uniview private protocol |
| TF card | 1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. |
| Power consumption | < 10W |
| Weight | 0.377kg |
| Interface | Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Communication mode | 100Mbps network interface, supports IEEE802.3af; Wi-Fi |
| Dimensions (LxHxW) | 193.2mm*143.4mm*25mm |
| Operating environment | 10°C to 55°C, 10% to 90% RH noncondensing, indoor |

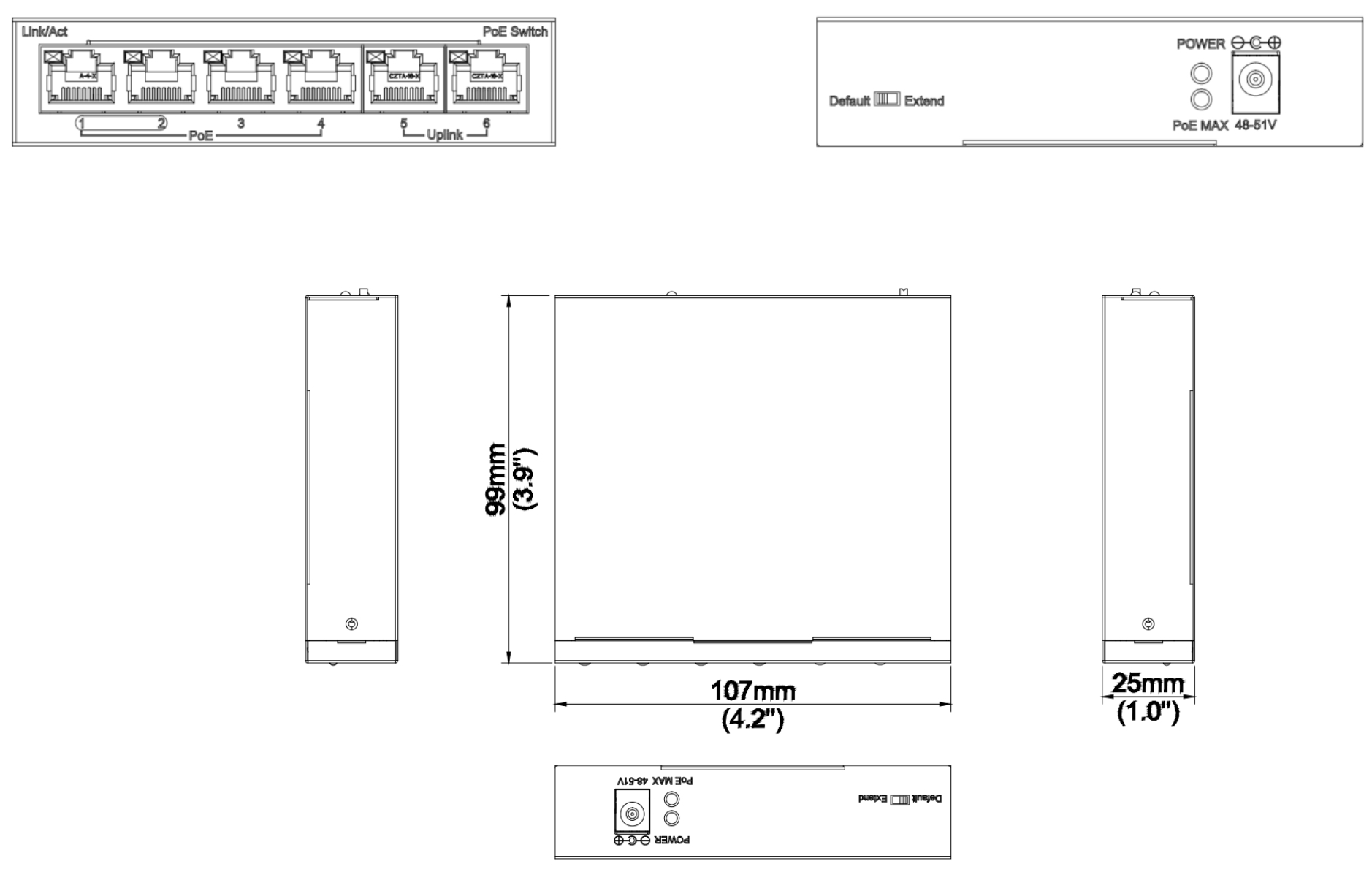

| Unmanaged Ethernet Switch (PoE) |
| Service port | 6 x 100M copper port (RJ45), including 4 x 100M copper port (supports PoE power supply) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching capacity | 1.2Gbps |
| Packet forwarding rate | 0.90Mpps |
| Packet buffer | 448kbit |
| MAC | 1K |
| Dimensions (WxDxH) | 107*99*25mm |
| Weight | 0.19kg |
| Power | DC 48V/51V |
| PoE | Supports IEEE802.3af and IEEE802.3at |
| PoE power supply mode | Mode B, 4/5+, 7 |
| PoE power | - Maximum total power: 60W
- Maximum PoE power for single port: 30W
|
| Priority port | 1 to 2 |
| Mount method | Desktop mount, wall mount |
| Fan | Fanless |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 90% RH, noncondensing |
| Storage temperature | -40°C to 70°C |
| Storage humidity | 5% to 90% RH, noncondensing |
| Indicator |
| Power | - Steady on: Normal power input
- Off: Abnormal power input
|
| PoE-MAX | - Off: The total PoE power is less than 80% of the total power of the device.
- Steady on: The total PoE power is higher than 85% of the total power of the device.
|
| Link/Act | - Off: The port is disconnected.
- Steady on: The port is connected.
- Blinking: The port is transmitting data.
|
| DIP switch | - Default: All ports can communicate with each other.
- Extend: All PoE ports can only communicate with uplink ports, and the network transmission distance can reach up to 250 meters.
|
| Kit dimensions (LxWxH) | 268mm*213mm*180mm |
| Kit weight | 2.005kg |
 |
 |
 |
