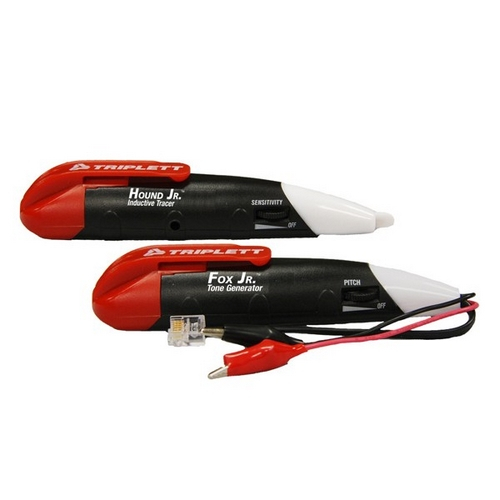

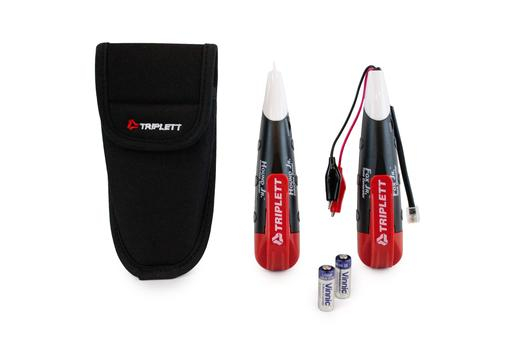

The Fox & Hound Jr™ wire tracing kit consists of a versatile Fox Jr Tone Generator (Toner) and a compact Hound Jr™ Inductive Amplifier (Probe). The Fox Jr™ is a battery operated handheld multi-function Toner that generates a Warble tone, performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and provides overload protection up to 120 VAC. The Hound Jr™ is a battery operated handheld lightweight Probe, with a thumb-wheel Sensitivity control and Signal Strength indicator LED. The Fox & Hound Jr™ are designed to work in various industrial and residential applications.

Hound Jr Features

  • Pocket-Sized with Pocket Clip
  • Small and Streamlined to get into tight places
  • Adjustable Sensitivity / Volume Control
  • Visual Signal Strength Indicator
  • Contains Hi-Gain Hi-Impedance Amplifier
  • Non-Conductive Probe Tip
  • Detects FOX Jr. Signal from up to 12″ away
  • Earphone Jack
  • Power Beeper Reminder
  • Powered by one A23 Battery (included)

Fox Jr Features

  • Pocket-Sized with Pocket Clip
  • Overload Warning Beeper – alerts user to potential hazards
  • Connects easily with alligator clips or RJ-11 / RJ-45 combo plug
  • Distinctive Warble tone is adjustable over wide range
  • 120VAC Line Cross Resistant
  • Powered by one A23 Battery (included)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications
  • Special order item. Please use the Add to Quote button to request for pricing and availability.
Notifications
Notifications:
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Declaration
Declaration Due to recent government-imposed tariffs, all pricing is subject to change based on the manufacturer updates.
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
Fox Jr
Output Frequency800kHz to 5kHz
Frequency AdjustmentThumbwheel
Output Voltage6vpp square wave (open circuit)
Tracer ToneWarble
Max. AC/DC Live Voltage120V
ConnectionsAlligator Clips and RJ11/RJ45 combo modular plug
Lead Length4"
Battery12V (A23)
Dimensions5.8 x 1.25 x 0.8” (147 x 31.8 x 20.3mm)
Weight1.6oz (45.4g)
Hound Jr
ProbeNon-conductive, insulated
SensitivityAdjustable with thumbwheel (detects Fox Jr up to 12” away)
Signal Strength IndicatorBright red dual LED visual signal strength indicator and speaker
Earphone JackAccepts 1/8” mono or stereo earphone plug (mutes speaker)
Battery12V (A23)
Power On ReminderHound Jr beeps and flashes periodically
Dimensions5.8 x 1.25 x 0.8” (147 x 31.8 x 20.3mm)
Weight1.6oz (45.4g)

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Fox Jr
Output Frequency800kHz to 5kHz
Frequency AdjustmentThumbwheel
Output Voltage6vpp square wave (open circuit)
Tracer ToneWarble
Max. AC/DC Live Voltage120V
ConnectionsAlligator Clips and RJ11/RJ45 combo modular plug
Lead Length4"
Battery12V (A23)
Dimensions5.8 x 1.25 x 0.8” (147 x 31.8 x 20.3mm)
Weight1.6oz (45.4g)
Hound Jr
ProbeNon-conductive, insulated
SensitivityAdjustable with thumbwheel (detects Fox Jr up to 12” away)
Signal Strength IndicatorBright red dual LED visual signal strength indicator and speaker
Earphone JackAccepts 1/8” mono or stereo earphone plug (mutes speaker)
Battery12V (A23)
Power On ReminderHound Jr beeps and flashes periodically
Dimensions5.8 x 1.25 x 0.8” (147 x 31.8 x 20.3mm)
Weight1.6oz (45.4g)
