Features:

• 12 HDMI inputs with 12 CC inputs via CVBS
• (Data 1 port) over UDP and RTP
• MPEG1 Layer II; Dolby AC3, AC3 pass through ; MPEG-2 AAC, MPEG-4 AAC
• HD (1080i/720p) to SD (576p/480p) downscale conversion
• 1MPTS and 24 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP
• ASI output mirrors one of the RF carriers
• PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
• Control via web management NMS
• 16 Groups Multiplexing/Scrambling/ DVB-C QAM ANNEX A and B Modulating (based on RF)
• 8 Groups Multiplexing/ DVB-T/ATSC Modulating (based on RF)
• 6 Groups Multiplexing / ISDB-T Modulating (based on RF)
• Up to 16 MPTS IP (Data2 Port Only) output over UDP, RTP/RTSP (# of MPTS is based on RF standard of device) (16MPTS for DVB-C; 8MPTS for DVB-T/ATSC; and 6MPTS for ISDB-T)

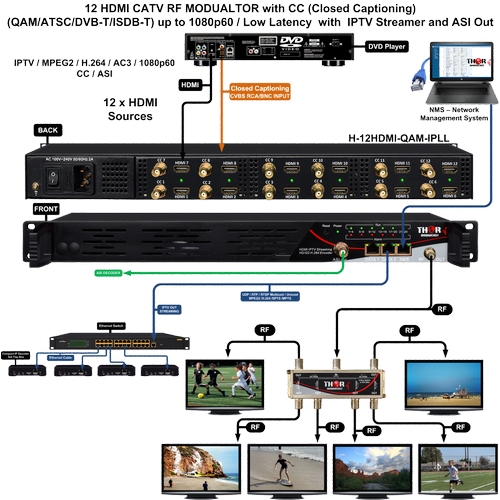

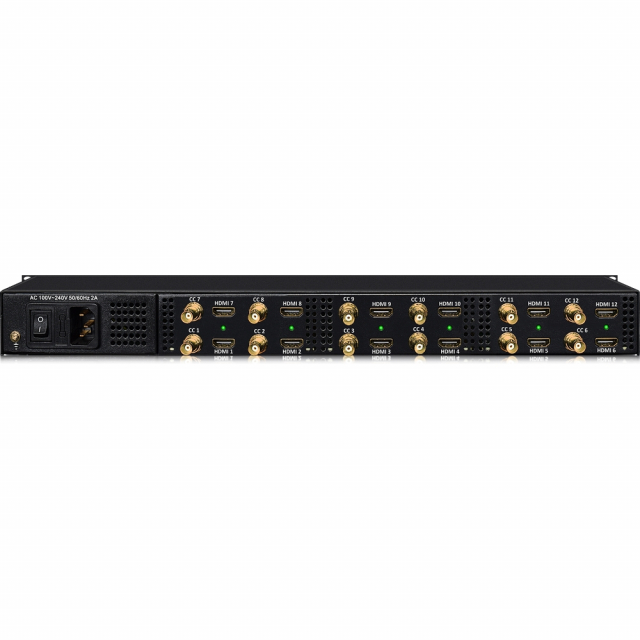

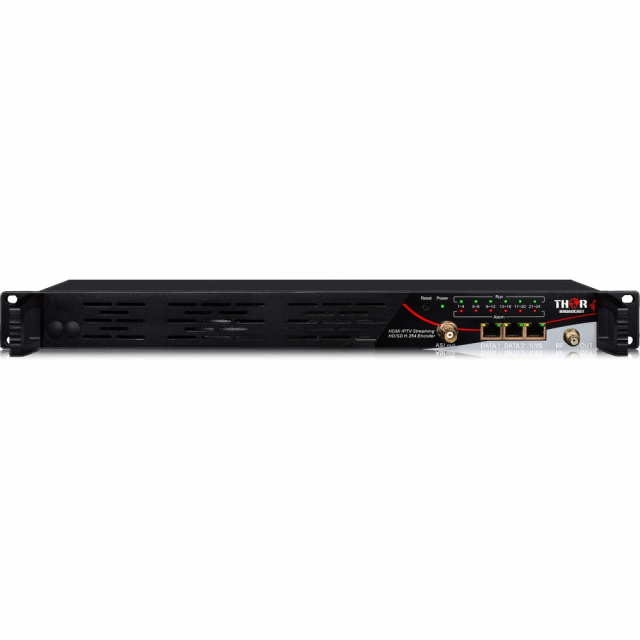

The high capacity H-12HDMI-QAM-IPLL Encoder Modulator from Thor Broadcast has a sophisticated redesigned platform for enabling modulation of up to 12 HDMI sources and 12 CVBS CC(Closed Caption) sources simultaneously. This unit has the ability to ingest IP Transport Streams and multiplex them among the RF output channels, similarly you can also input a single ATSC (or other RF modulation standard) and add its transport streams among the QAM output. This unit comes standard with a plethora of options to help you add extra transport streams from various media to build your own RF head end quickly and easily without extra hardware.
