Thor Broadcast, F-1MSDI-L-2Tx/Rx, 1-Channel HD-SDI Transmitter with Loopout and Receiver with 2 Outputs Over Singlemode Fiber Kit
F-1MSDI-L-2Tx/Rx Includes Only:
Features:
- The signal is equalized and re-clocked before fiber optic transmission
- Transmitter features a re-clocked SDI loop through
- Receiver features two re-clocked SDI outputs
- Immunity to pathological patterns over the entire link budget and operating temperature range
- Compliant with SMPTE 259M-2006, 292-2006, (424M-2006, 297-2006 Optional-model dependent)
- Supports transmission of SMPTE305M-2005, 310M-2004, 344M-2000, DVB-ASI
- Supports both single-mode and Multimode ( 62.5u & 50u) fiber types
- Supports HD/SD-SDI inputs with or without embedded audio and data
- 15 dB Optical Link Budget at 1.5Gbps and 2.97 Gbps for 3G SDI model
- Wide operating temperature range:-10° C to +50° C

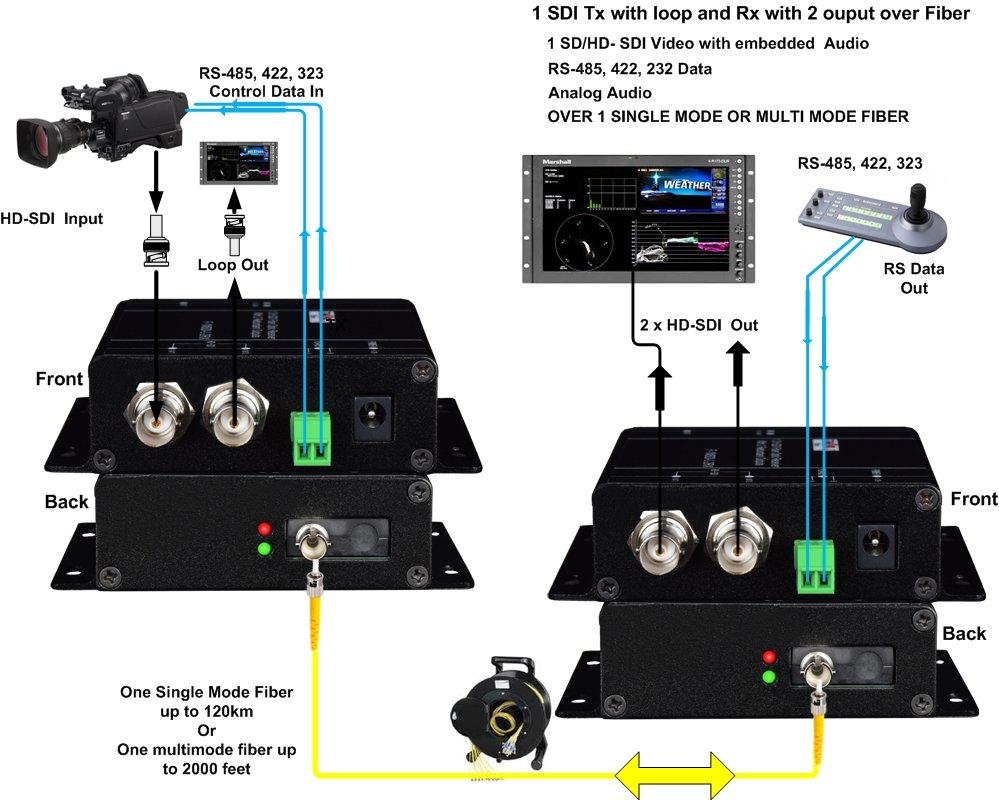

The F-1MSDI-L-2TX is a mini Fiber Optic Transport unit that utilizes an extra loop-out SDI connector on the transmitter for monitoring and additional screening. The matching receiver, F-1MSDI-L-2RX, uses the same technology as the transmitter, so you can actually have 2 SDI outputs on the receiving end of the Fiber. This allows easy access to redistribute a primary Fiber Cable that needs to be split into two SDI outputs.
It allows you to transmit HD or SD-SDI as per SMPTE 424M-2006, 292, and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked before fiber optic transmission. The transmitter features a re-clocked and equalized SDI loop through and the receiver features two re-clocked and equalized SDI outputs. You need both the transmitter F-1MSDI-L-2TX and receiver F-1MSDI-L-2RX.
The F-1MSDI-L-2TX/RX Series is compliant with SMPTE 297-2006
The F-1MSDI-L-2TX Series is immune to pathological signals over the entire budget link and operating temperature range.
Please Note: The item has ST Connectors any different connector could be ordered as a special order.
