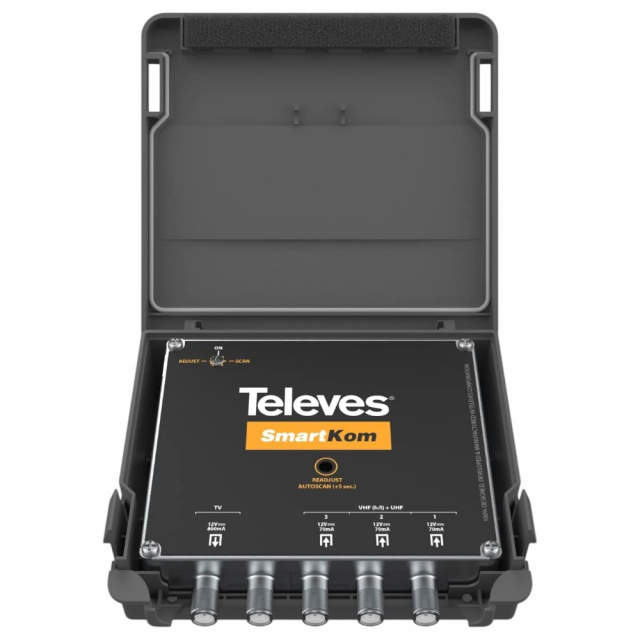

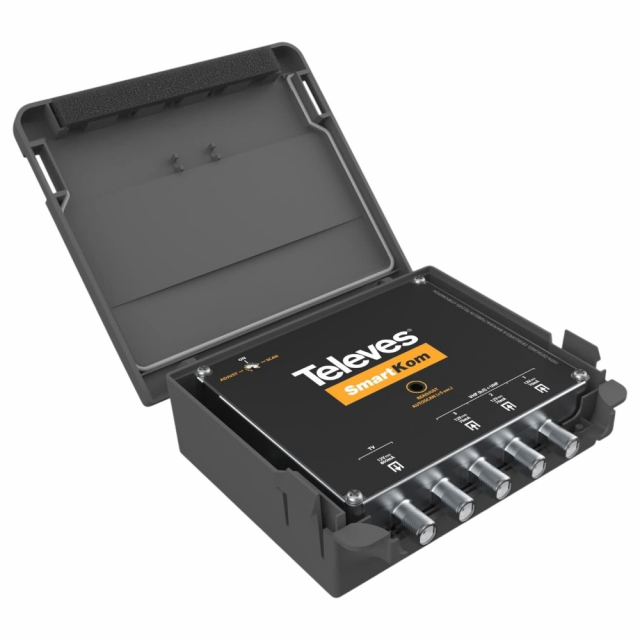

Televes, 531981, SmartKom Antenna Combiner Preamp Rotor Alternative Combines Up to 3 Antennas and Distributes Signal Fine Tune with iOS/Android App

Features:

• "All-in-one" device: it combines the functions of several devices needed in an installation including filters, combiners, and amplifiers, supplying a complete signal distribution under aSingle coaxial cable
• Plug & Play: The preamplifier automatically and optimally programs the signals from the 3 inputs. Adjusts all channels from each antenna simply by pressing the auto-programming button. In addition, SmartKom automatically powers the antenna in case the signal requires it
• Automatic gain regulation of the signal in each filter (AGC) and a wide dynamic range in each filter adjusts all carriers to the same power
• Great signal quality: its digital processing minimizes severe signal loss, co-channel interference, as well as multipath and phasing interference, common with conventional splitters/combiners
• Compatible with existing HDTV signals and UHD 4K stations (NextGen TV / ATSC 3.0)
• Undesired out-of-band and cell phone LTE/5G signals are filtered to avoid interference
• Wireless manual or automatic programming (via Bluetooth®). Use a smartphone or tablet with the ASuite app to avoid having to go to the mast

The rotor-killer solution

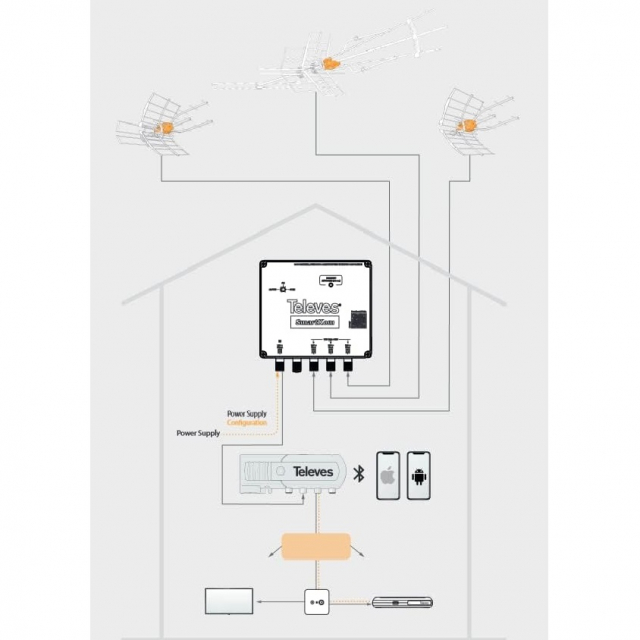

A compact high-technology preamplifier with digital channel processing is designed for outdoor installation in family houses. Equipped with 3 inputs, it combines and amplifies these terrestrialsignals (VHF+UHF) to bring in stations from different sites. Each channel can be individually filtered and adjusted by any of the 32 programmable filters. SmartKom is supplied with a 12V (750mA) domestic power supply that is inserted into the coaxial installation and powers it through its output connector.

The auto programming function of the preamplifier gives this device the ability to program and adjust itself for the best signal output, simply by pressing a button. In addition, thanks to the Bluetooth® antenna included in the PSU, manual or automatic programming of the preamplifier can be done wirelessly using a smartphone or tablet, with the ASuite application.

For more information, please see Data Sheet
