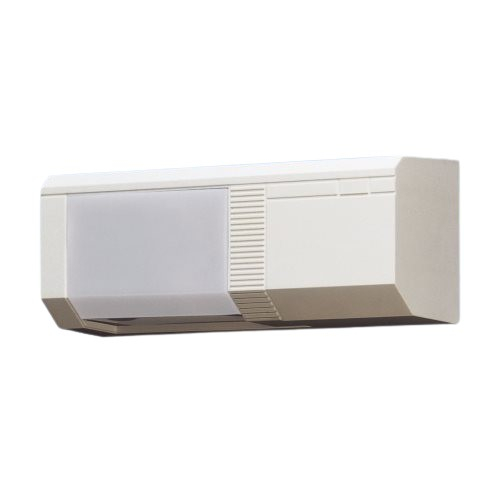

Takex, PS-520E, Single/Double Door PIR Sensor, Hold Timer, Two Form C Outputs, 12/24 VAC/DC
Features:
- Dual pyroelectric for increased stability against external light. Special circuitry provides high immunity to RFI and other electrical noise.
- Adjust from straight downward 'blanket' covering the door to angles of 35°in front of door.
- Increase or decrease to suit your site needs.
- The two position mirror provides coverage of single and double doors.
- 0.25 to 60 second adjustment for relay hold time.
- Both normally open/normally closed.
- Relays drive up to 1 amp of current for controlling door strikes and magnetic locks.
- Selectable by DIP Switch.
Designed for applications involving coverage at the threshold of a doorway, the TAKEX Passive Infrared Sensor detects the differential between a human body and the floor. It features several field selectable options and adjustments to make it the ideal choice for access control applications, door strike release, alarm system shunting and automatic door operation.
