Options and Related Products

Rated Current (A):
Rated Current (A): 50
Poles:
Poles: 3

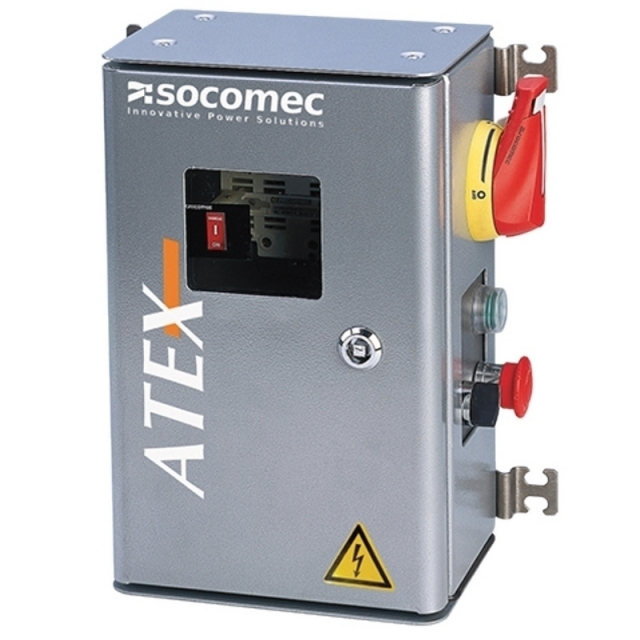

Socomec, 3V413005, Atex Steel Safety Enclosure, 3P, 50A, Bottom/Bottom Connection

Features:

  • Operator safety
  • Inductive load breaking (AC23)
  • Robust design
  • IP65 degree of protection
  • Visible breaking
  • Double locking and operating handle
  • Connection
  • Limiting the short-circuit current
  • Equipped with SIDER visible load break switches
  • Enclosures made from galvanised steel
  • Comes in version BB
  • Provided with a red S type operation handle

Applications:

  • Steel works
  • Cement works
  • Mining industries

Compliance with standards:

  • IEC 60204-1
  • IEC 61439-2
  • IEC 60947-3
  • IEC 60364
  • Directive ATEX 2014/34/UE

ATEX enclosure fitted with Socomec switches provide emergency breaking and maintenance and safety isolation for any low voltage electrical circuit which is in an area where there is a risk of explosion.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Classification
UNSPSC39122205
ETIM ClassEC000216
IGCC5176
Commerce
Country of originFR
ETIM - Electrical character
Max. rated operation voltage Ue AC [V]690
Rated operating voltage [V]400..690
Rated permanent current Iu [A]50
Number of poles3
ETIM - Mechanical characteristics
Suitable for floor mountingNo
Degree of protection (IP), front sideIP65
ETIM - Technical features
Version as main switchNo
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Number of switches1
Motor drive integratedNo
Device constructionComplete device in housing
Type of control elementDoor coupling rotary drive
InterlockableYes
Type of electrical connection of main circuitScrew connection
Logistics
Weight of the packing unit8.405
Length of the packing unit0.3
Width of the packing unit0.4
Depth of the packing unit0.6
Norms
Conformity to standardsIEC
Technical Characteristics
Control operatorSide
Number of poles3
Rated current50
TypeSteel safety enclosure

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Product Details
Classification
UNSPSC39122205
ETIM ClassEC000216
IGCC5176
Commerce
Country of originFR
ETIM - Electrical character
Max. rated operation voltage Ue AC [V]690
Rated operating voltage [V]400..690
Rated permanent current Iu [A]50
Number of poles3
ETIM - Mechanical characteristics
Suitable for floor mountingNo
Degree of protection (IP), front sideIP65
ETIM - Technical features
Version as main switchNo
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Number of switches1
Motor drive integratedNo
Device constructionComplete device in housing
Type of control elementDoor coupling rotary drive
InterlockableYes
Type of electrical connection of main circuitScrew connection
Logistics
Weight of the packing unit8.405
Length of the packing unit0.3
Width of the packing unit0.4
Depth of the packing unit0.6
Norms
Conformity to standardsIEC
Technical Characteristics
Control operatorSide
Number of poles3
Rated current50
TypeSteel safety enclosure
Note

Note: Please read description carefully. Do not base your order on the picture presented.
