Seiffert Industrial, SX-4150, RollCheck Mini Laser Roll Alignment System

SX-4150 Includes Only:

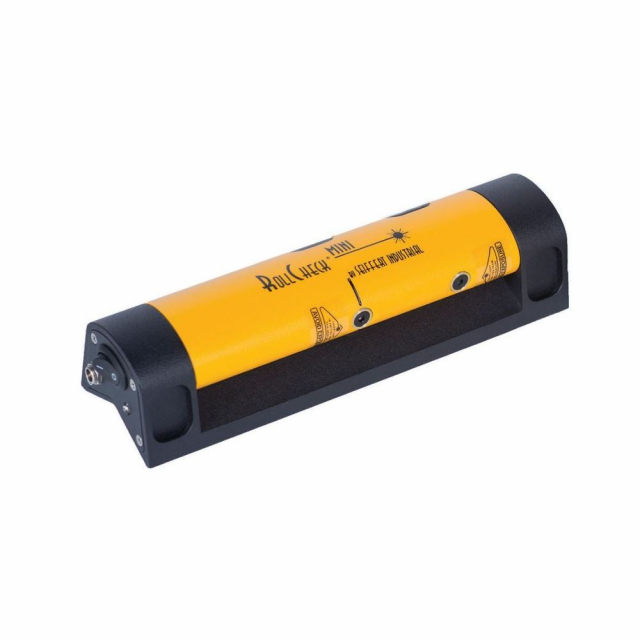

• Transmitter SX-4150T

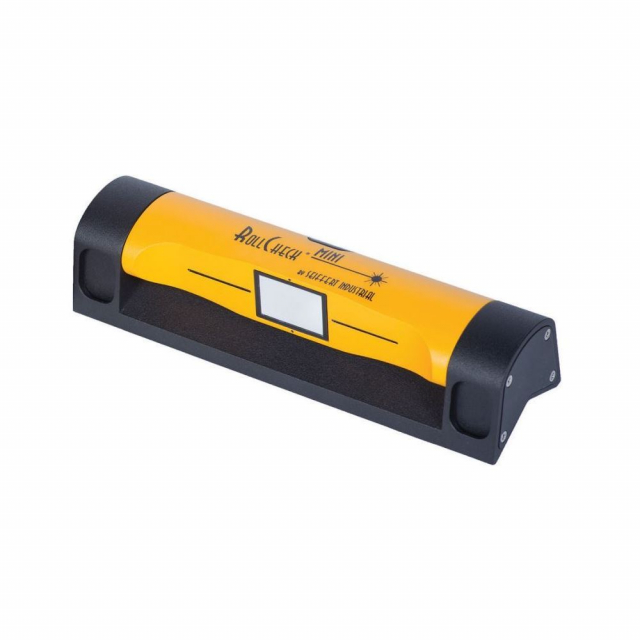

• Reflector SX-4150R

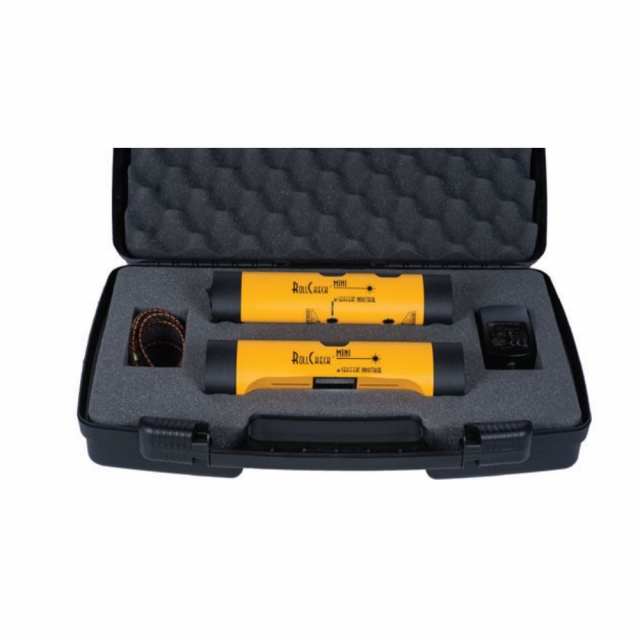

• Carrying Case

Features:

• Reduces downtime and product waste due to misalignment of rolls Increases production with proper alignment of rolls
• Compact design fits into small spaces
• Fast and easy to use
• No training required
• One-person operation
• Facilitates more frequent roll checks
• Pays for itself quickly
• Uses proven reflected laser beam technology
• Used for shots up to 4 ft. (1200 m)

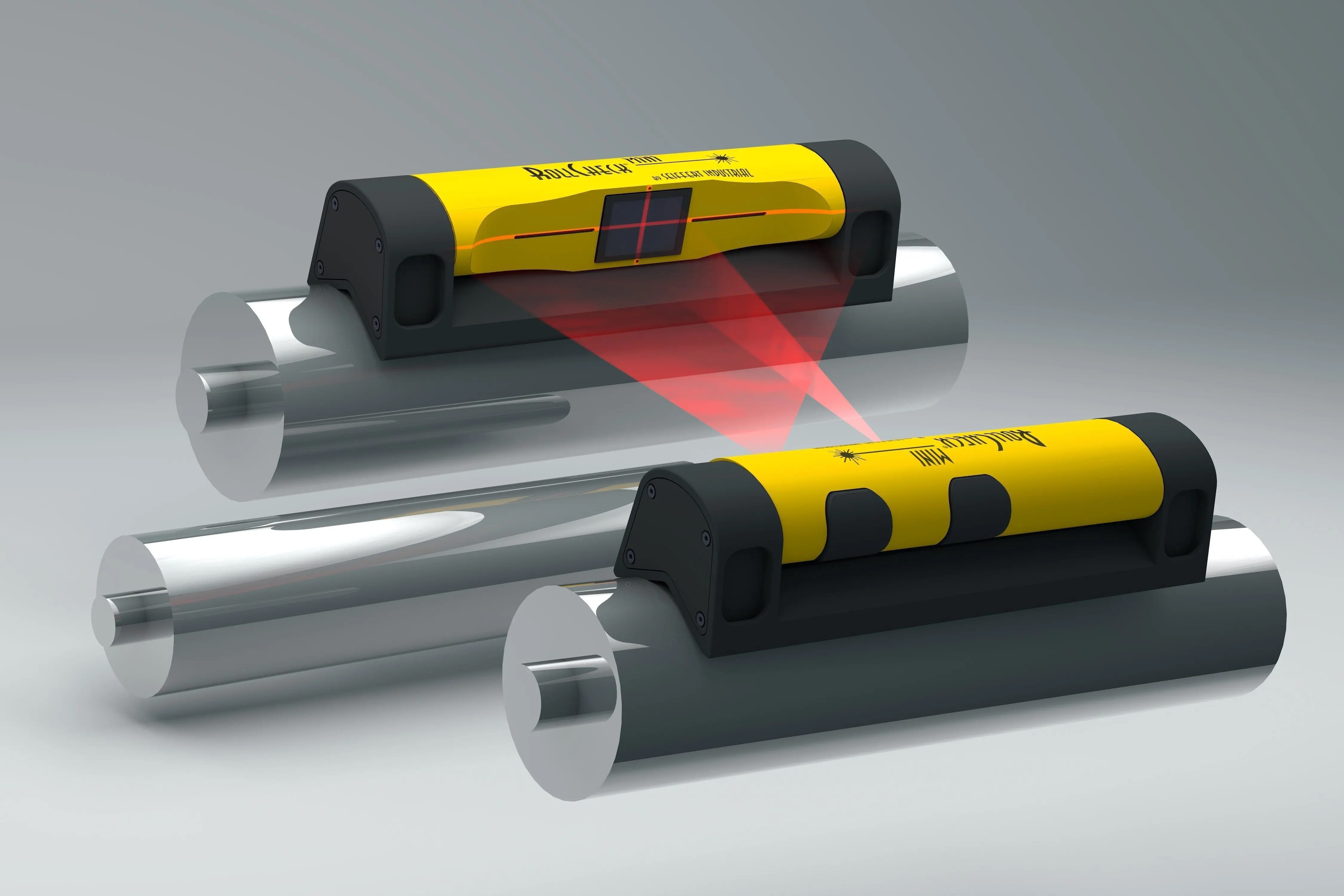

The RollCheck® mini laser alignment system for parallel roll alignment is lightweight, compact, and durable. The system can be attached to a roll up to 4" (101 mm) in diameter with the supplied straps. Use of proven reflected laser beam technology for maximum angular resolution, thus providing you with the most reliable and accurate visual reading. The RollCheck® MINI can measure spans up to 4 ft. (1200 m) from roll to roll sizes up to 4" (1200 mm) in diameter. A laser line is projected from the RollCheck® MINI transmitter to the reflector mounted on the roll to be checked or aligned. The laser line projected to the reference line on the reflector indicates immediately if the roll is aligned vertically to the stationary roll. The laser line is then automatically reflected back to the transmitter's reference line indicating if the rolls are parallel to one another. This system is very easy to use; a single person can perform the alignment task in minutes with no training!
