Material:
Material: PVC

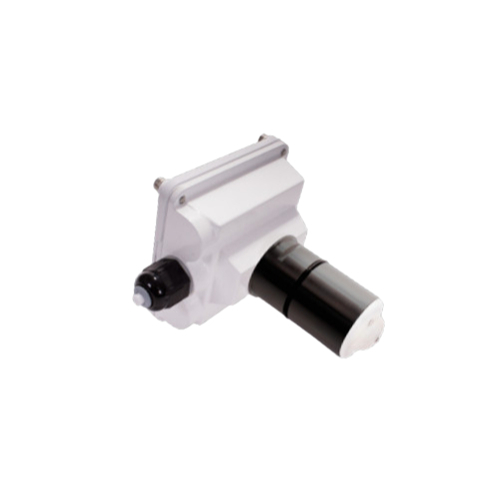

Insertion electromagnetic flowmeter are designed for use with conductive liquid in 1 to 12" pipe.

Is highly suitable for difficult applications with changing viscosities and pulsating flows, such as air-driven diaphragm pumps. With no moving parts, these meters can be used in "dirty water" applications where debris would foul a mechanical meter.

Features:

  • Electronics Module, Cover and Data Logger (Optional)
  • Housing Screw (connect ground wire to one)
  • Cable Gland Strain Relief
  • Powder-Coated Cast Aluminum Housing
  • Retaining Slot (for U-Clip) (for easy installation at correct depth setting)
  • O-Ring, EPDM (Viton® optional)
  • Sensor Body (Stainless, Brass, PVC)
  • PVDF Electrode Cap
  • Hastelloy Electrodes
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Pipe Size4" - 10"
Power
Full Power12 - 24 Vdc, 250mA
Low Power12 - 24 Vdc, 40mA average with 250mA peaks
Materials
HousingPowder-coated cast aluminum
Sensor BodyPVC
O-ringEPDM (Viton®)
Electrode CapPVDF (Kynar®)
Maximum Pressure
PVC (See Pressure vs. Temp. Chart)150 psi (10 bar) at 75° F (24° C)
Temperature
Ambient0° to 160° F (-17° to 72° C)
Fluid32° to 130° F (0° to 55° C) at 0 psi
Maximum Pressure20 microSiemens/cm
Flow Velocity0.28 to 20 ft/sec (0.08 - 6.09 m/sec)
Accuracy± 1% of full scale
OutputSquare wave pulse, opto-isolated, 500 Hz at 20 ft/sec
Empty Pipe DetectionSoftware, defaults to zero flow
CableStandard 18' (6m), #22 shielded twisted pair, 4-conn. Max. cable run at 24 Vdc = 1000' (300m); at 12 Vdc = 500' (150m). For other circumstances, contact the factory
EnvironmentalSee meter mounted electronic specification for rating
DescriptionExternally powered sensor (12 - 24Vdc) with FT430 rate and total indicator (with pulse outputs) mounted on the sensor.

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Pipe Size4" - 10"
Power
Full Power12 - 24 Vdc, 250mA
Low Power12 - 24 Vdc, 40mA average with 250mA peaks
Materials
HousingPowder-coated cast aluminum
Sensor BodyPVC
O-ringEPDM (Viton®)
Electrode CapPVDF (Kynar®)
Maximum Pressure
PVC (See Pressure vs. Temp. Chart)150 psi (10 bar) at 75° F (24° C)
Temperature
Ambient0° to 160° F (-17° to 72° C)
Fluid32° to 130° F (0° to 55° C) at 0 psi
Maximum Pressure20 microSiemens/cm
Flow Velocity0.28 to 20 ft/sec (0.08 - 6.09 m/sec)
Accuracy± 1% of full scale
OutputSquare wave pulse, opto-isolated, 500 Hz at 20 ft/sec
Empty Pipe DetectionSoftware, defaults to zero flow
CableStandard 18' (6m), #22 shielded twisted pair, 4-conn. Max. cable run at 24 Vdc = 1000' (300m); at 12 Vdc = 500' (150m). For other circumstances, contact the factory
EnvironmentalSee meter mounted electronic specification for rating
DescriptionExternally powered sensor (12 - 24Vdc) with FT430 rate and total indicator (with pulse outputs) mounted on the sensor.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
