Features:
- Lockable in the center position
- Nema 12/13, IP 65

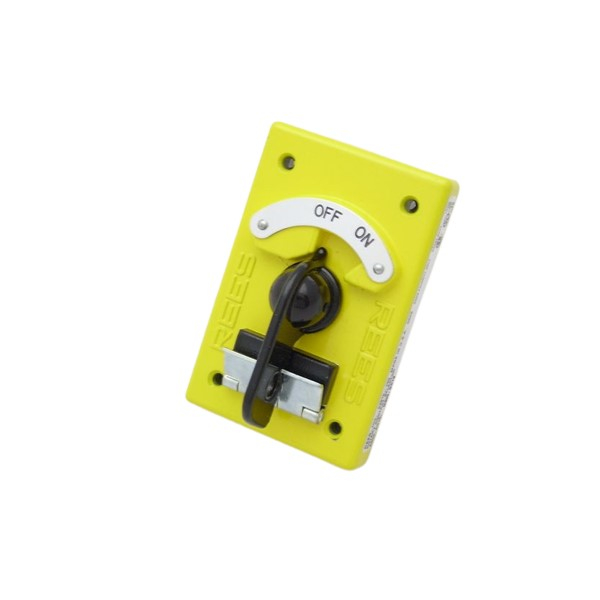

The following rotary cam switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The yellow cover and black wing lever are made from die-cast zinc and painted with a dry powder paint.

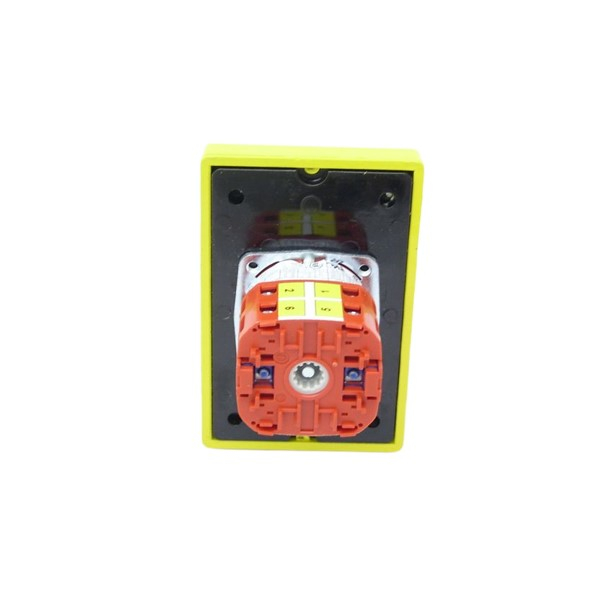

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.
This switch can be found on a variety of machinery. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial conditions.
