Rear View Safety, RVS-062710, Backup Camera System with Quad View Monitor

This system is complete with a crystal clear 7" DIGITAL TFT LCD color monitor with single, double, triple and quad viewing modes. The heavy duty backup camera(s) are equipped with 18 infra-red lights, a 130 degrees viewing angle and an IP69K waterproof rating. The two side cameras are bullet shaped and designed to mount to the side of your vehicle. Each come with 9 infra-red lights, a 120 degrees viewing angle and an IP68 waterproof rating. The system comes with all cabling, mounts and parts necessary for installation.

Features:

  • Backup Camera System with Quad View Monitor
  • 7" LED Digital Color Display with Removable Sunshade
  • Single, Double, Triple and Quad Viewing Options
  • Waterproof Cameras with Infra-Red Night Vision
  • Provides Complete View of Blind Spots around Vehicle
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Monitor Specs
TypeTFT LCD
Screen Size7"
Dot Resolution800 X 3 (RGB) X 480
Display Format/Contrast16:9 / 500:1
Display Brightness400cd/m²
Viewing AngleU:50° D:60° L/R:70°
Video Input4 channel
Video Source1Vp-p, 75Ω
Power Supply9V-32V
Power Consumption5W
Operating Temperature-30°C ~ +80° C
Video SystemAuto NTSC/PAL
Overall Dimensions7" (L) x 5" (H) x 1" (D)
Individual Quadrant Size (7' Monitor)2.75" x 3"
Weight400G
Vibration Rating5G
Active Area154.08 (H) X 86.58 (V)
Sync SystemInternal
Camera Specs
Camera1/4" Sharp® Color CCD
Picture Elements250,000 pixels
Gamma Correctionr=0.45 to 1.0
Image Sensor600 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
Lens2.1mm
View Angle130°
Waterproof RatingIP69K
Sync SystemInternal Synchronization
Infra-red distance50 Feet (18 Infrared)
Usable Illumination0 Lux (IR On)
Power SourceDC 9V-32V
S/N RatioMore than 48dB
Electronic Iris1/50, 160-1/100,000sec
Video Output1Vp-p 75 Ω
IR Switch ControlACDS Automatic Control
Vibration and Impact Rating20G / 100G
Operating Temperature-40°C ~ +80°C / RH 95% Max
Storage Temperature-40°C ~ +60°C / RH 95% Max
Overall Dimensions3.25" (H) x 3" (L) x 1.5" (D)

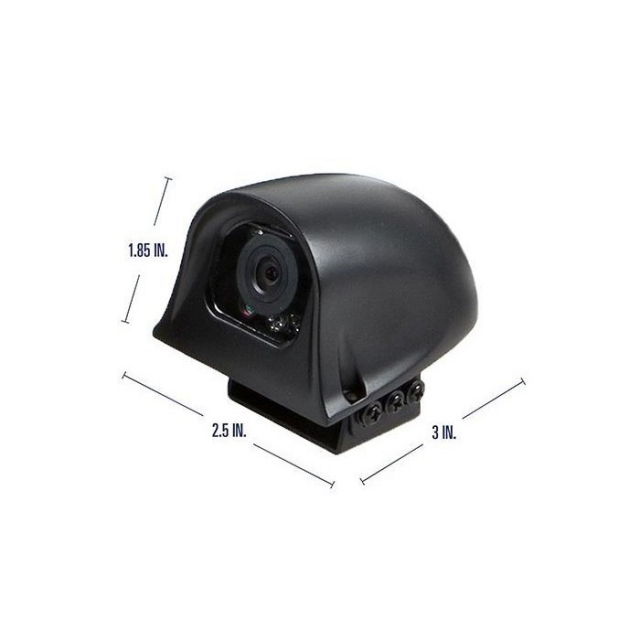

Side Camera Specs
Camera1/4" Sharp® Color CCD
Picture Elements250,000 pixels
Gamma Correctionr=0.45 to 1.0
Image Sensor420 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
Lens2.1mm
View Angle120°
Sync SystemInternal Synchronization
Infra-red distance30 Feet (9 Infrared)
Usable Illumination0 Lux (IR On)
Power SourceDC 9V-32V
S/N RatioMore than 48dB
Electronic Iris1/50, 160-1/100,000sec
Video Output1Vp-p 75 Ω
IR Switch ControlACDS Automatic Control
Vibration and Impact Rating20G / 100G
Operating Temperature-40°C ~ +80°C / RH 95% Max
Storage Temperature-40°C ~ +60°C / RH 95% Max
Overall Dimensions1.85 (H) x 2.5" (L) x 3" (D)
