PCE-TTC 30 Includes Only:

• 1 x Temperature Data Logger PCE-TTC 30
• 2 x Laboratory cables with 2 mm plug
• 1 x Thermocouple adapter to 2 mm plug
• 2 x Adapter 2 mm on 4 mm laboratory cable
• 2 x Alligator clips
• 1 x Mini USB cable
• 1 x Power supply 5 V / 1 A
• 1 x Carrying bag
• 1 x Software
• 1 x User manual

Features:

• Simulation and measurement mode
• Battery operation
• For thermocouples E, J, K, T, B, R, S, N, mV
• Hart compatible
• Manual mode & ramp function
• Continuity test
• Data logger function

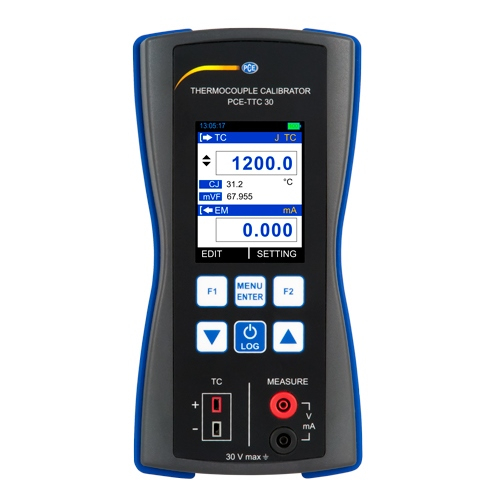

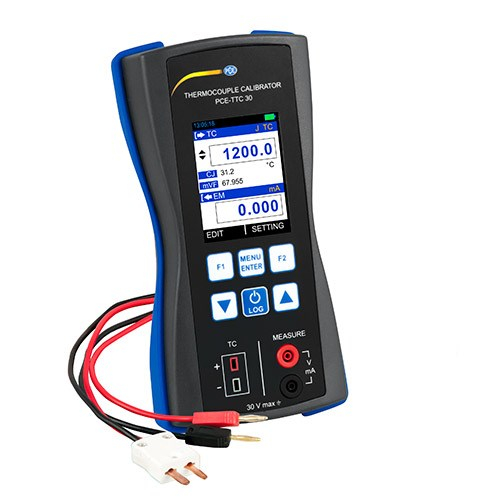

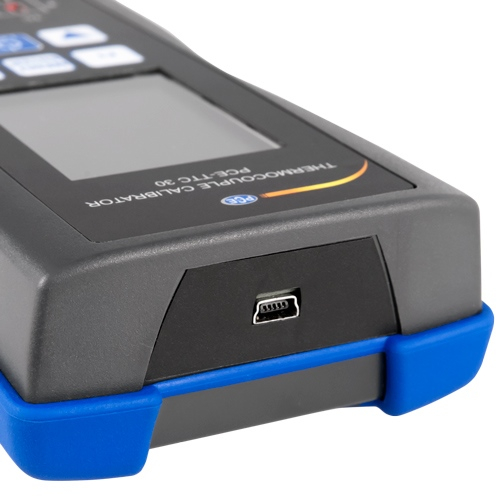

The temperature data logger PCE-TTC 30 can be used to simulate different thermocouples as well as mV. Thus, the thermocouple calibrator can be used for many thermometers and temperature displays with a thermocouple connection. The PCE-TTC 30 thermocouple calibrator simulates the most popular thermocouples, including K, T, and S. The simulator for thermocouples has an accuracy of 0.3°C / 0.54°F, making it easy to accurately calibrate thermometers. In addition to the direct specification of temperatures or extra-low voltages up to 250 mV, the thermocouple calibrator can be operated in ramp mode. Here, the user can decide whether the ramp should be run indefinitely or at defined intervals. The miniature USB interface can be used to load the thermocouple calibrator. Furthermore, recorded data can be transmitted via this interface to a PC.
