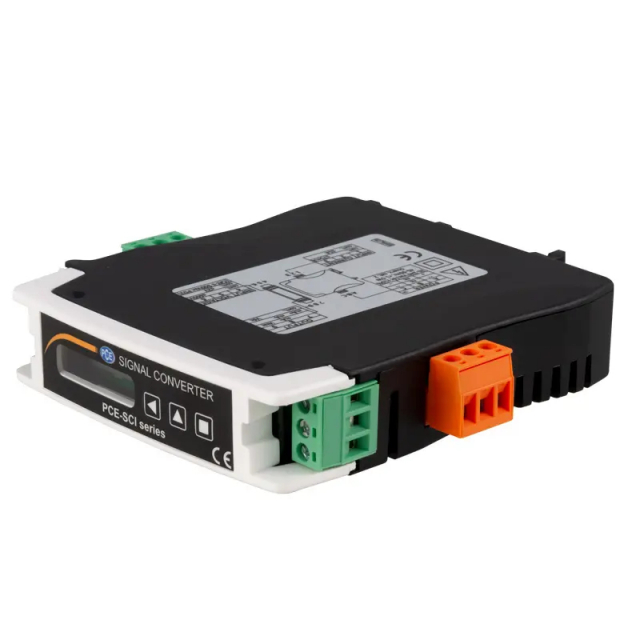

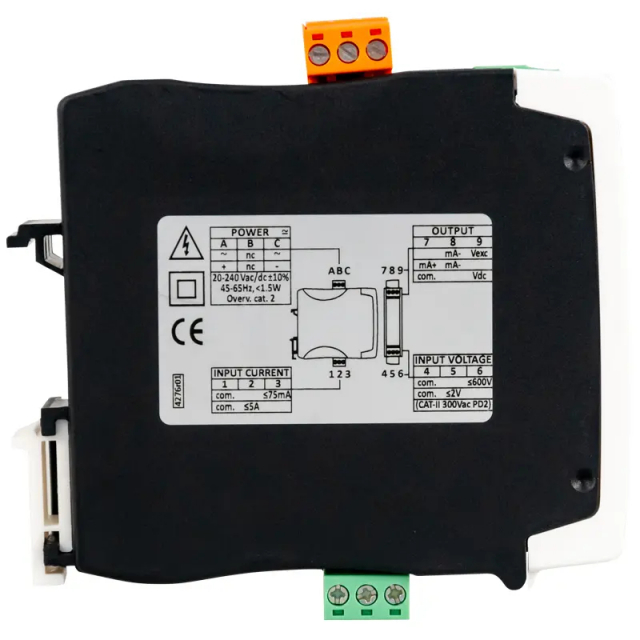

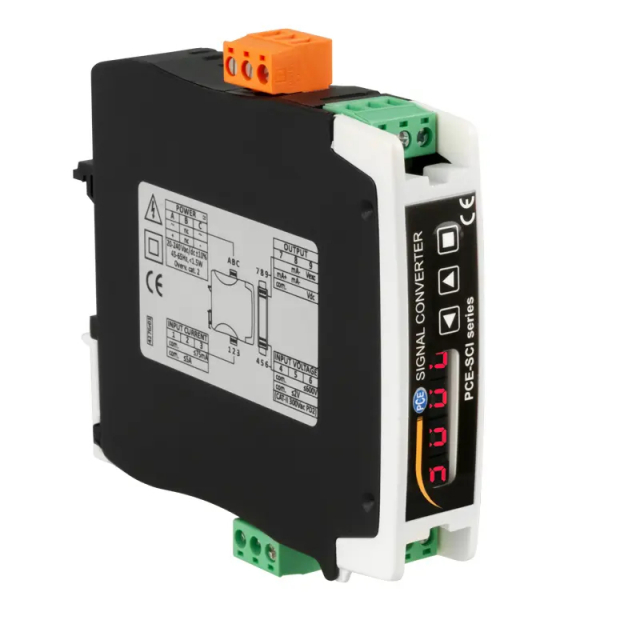

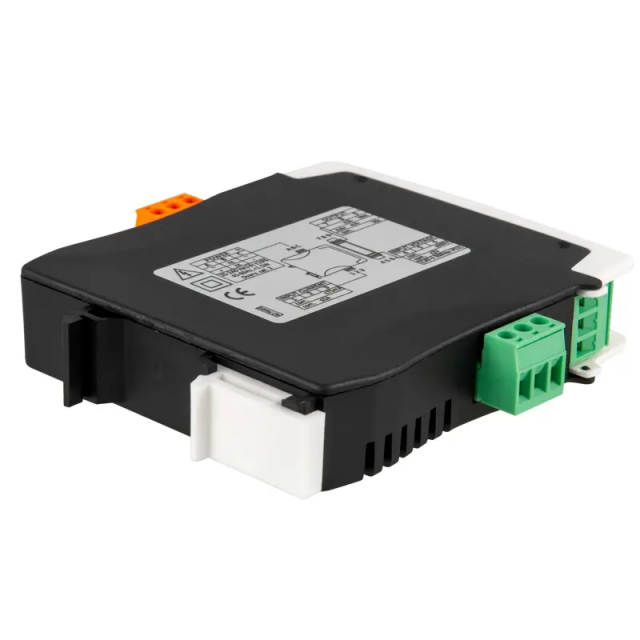

Buy PCE Instruments PCE-SCI-E, Configurable DIN Rail Converter

info@primebuyb2b.com

1-855-797-1969
1-908-282-3433 (Intl.)

PCE-SCI-E Includes Only:

1 x Current Signal Converter PCE-SCI-E
1 x User manual

Features:

DIN rail mounting
Measuring range 0 ... 600 V AC/DC
Active and passive output signal
Display and keypad for configuration
Frequency measurement
Measuring range 0 ... 5 A AC/DC

Current signal converter for top hat rail mounting / Measuring range 0 ... 600 V AC/DC / Output signals in 4 ... 20 mA and 0 ... 10 V / Configurable via keypad / Current measuring range 0 ... 5 A AC/DC / Frequency measurement

The transmitter has an adjustable measuring range of 0… 600 V AC/DC and can therefore measure a wide variety of voltages. For example, it is possible to connect the transmitter to the supply line in order to monitor the applied voltage. In addition to voltage measurement, the transmitter can also measure the current directly with a maximum adjustable measuring range of 0 … 5 A AC/DC. A current transformer can be connected to the transmitter to expand the current range. The measured value is then converted by the transmitter into a standardized analog 4 … 20 mA or 0 … 10 V signal. Thus the transmitter is the ideal extension of a process control.

Since the input and output range can be set identically, the transmitter can be used for galvanic decoupling. The transmitter is configured directly via the keypad. This means that no additional cable or software is required for the settings of the signal converter. The transmitter is mounted on a DIN rail. The transmitter is operated with a voltage of 18 … 265 V AC/DC at a frequency of 45 … 65 Hz.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input signals

AC voltage

Adjustable measuring ranges

0 ... 1 / 2 / 10 / 15 / 30 / 60 / 100 / 150 / 300 / 450 / 600 V AC,
0 ... 50 / 60 / 75 / 100 / 150 / 200 / 300 / 500 mV AC

Accuracy

<0.3 % of full range

Maximum input signal

800 V AC for the measuring ranges 10 ... 600 V AC,
50 V AC for the measuring ranges 50 mV AC ... 2 V AC

Measuring resistance

13 MΩ for the measuring ranges 10 ... 600 V AC,
81 KΩ for the measuring ranges 50 mV AC ... 2 V AC

Measurement type

True RMS

Protection category

CAT-II 300 V AC

DC voltage

Adjustable measuring ranges unipolar

0 ... 1 / 2 / 10 / 15 / 30 / 60 / 100 / 150 / 300 / 450 / 600 V DC,
0 ... 50 / 60 / 75 / 100 / 150 / 200 / 300 / 500 mV DC

Adjustable measuring ranges bipolar

±1 / ±2 / ±10 / ±15 / ±30 / ±60 / ±100 / ±150 / ±300 / ±450 / ±600 V DC,
±50 /± 60 / ±75 / ±100 / ±150 / ±200 / ±300 / ±500 mV DC

Accuracy

<0.2 % of full range

Maximum input signal

800 V DC for the measuring ranges 10 ... 600 V DC,
50 V DC for the measuring ranges 50 mV DC ... 2 V DC

Measuring resistance

13 MΩ for the measuring ranges 10 ... 600 V DC,
81 KΩ for the measuring ranges 50 mV DC ... 2 V DC

Alternating current

Adjustable measuring ranges

0 ... 1 / 2 / 3 / 4 / 5 A AC, 0 ... 5 / 10 / 20 / 50 / 75 / 300 / 500 mA AC

Accuracy

<0.3 % of full range

Maximum input signal

7 A AC for the measuring ranges
300 mA AC ... 5 A AC (for a maximum of 7 seconds),
150 mA AC for the measuring ranges
5 mA AC ... 75 mA AC

Measuring resistance

20 mΩ for the measuring ranges 300 mA AC ... 5 A AC,
3.33 Ω for the measuring ranges 5 mA AC ... 75 mA AC

Direct current

Adjustable measuring ranges

0 ... 1 / 2 / 3 / 4 / 5 A DC, 0 ... 5 / 10 / 20 / 50 / 75 / 300 / 500 mA DC

Accuracy

<0.2 % of full range

Maximum input signal

7 A DC for the measuring ranges
300 mA DC ... 5 A D (for a maximum of 7 seconds),
150 mA DC for the measuring ranges
5 mA DC ... 75 mA DC

Measuring resistance

20 mΩ for the measuring ranges 300 mA DC ... 5 A DC,
3.33 Ω for the measuring ranges 5 mA DC ... 75 mA DC

Frequency

Adjustable measuring ranges for voltage

0 ... 100 / 45 ... 55 / 55 ... 65 Hz

Adjustable measuring ranges for current

0 ... 100 / 45 ... 55 / 55 ... 65 Hz

Accuracy

<0.2 % of full range

Reaction time

AC signals

<350 ms typically 0 ... 99 %

DC signals

<90 ms typically 0 ... 99 % without filter
<175 ms typically 0 ... 99 % with 50/60 Hz filter
<350 ms typically 0 ... 99 % with 50/60 Hz filter

Output signals

Active current output

4 ... 20 mA minimum 0 mA and maximum <22 mA

Passive current output

4 ... 20 mA maximum 30 V DC

Voltage output

0 ... 10 V DC minimum 0 V DC and maximum <11 V DC

Load resistance

current output maximum <400 Ω
voltage output minimum >1 KΩ

Further specifications

Thermal drift

150 ppm / °C

Power supply

18 ... 265 V AC/DC isolated ( 20 ... 240 V AC/DC ±10 %)

Frequency

45 ... 65 Hz

Power consumption

<1.5 W

Conductor cross-section

1 ... 2.5 mm²

Overvoltage category

CAT-II

Isolation

3000 Vrms for 60 seconds

Protection class

IP30

Impact protection

IK06

Operating conditions

0 ... 50 °C / 32 ... 122 °F, 0 ... 95 % RH, non-condensing

Storage conditions

-20 ... 70 °C / -4 ... 158 °F, 0 ... 95 % RH, non-condensing

Warm-up time

15 minutes

Maximum working height

2000 meters / 6561 feet

Mounting

standard DIN rail 35 x 7.5 mm / 1.3 x 0.3"

Connection

plug-in screw terminal (grid 5.08 mm / 0.2")

Housing material

polyamide V0

Dimensions

106 x 108 x 22.5 mm / 4.1 x 4.2 x 0.9"

Weight

<150 g / 5.3 oz
