PCE-IT100 Includes Only:

• 1 x Insulation tester PCE-IT100

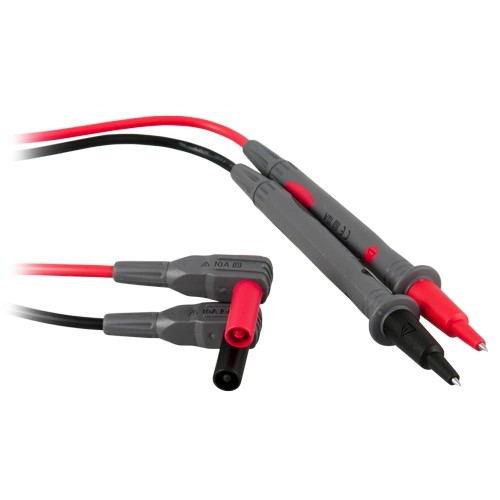

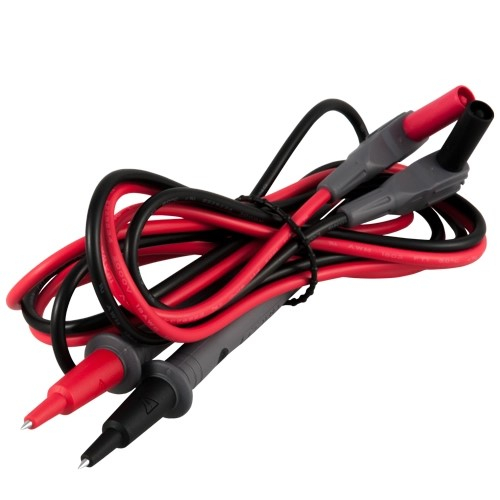

• 1 x Set of test leads

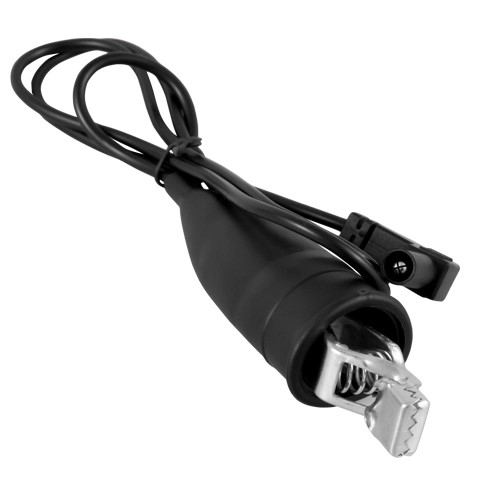

• 1 x Crocodile clip to 1 m / 3.3 ft cable
• 6 x 1.5V AA battery
• 1 x Carrying strap
• 1 x User manual

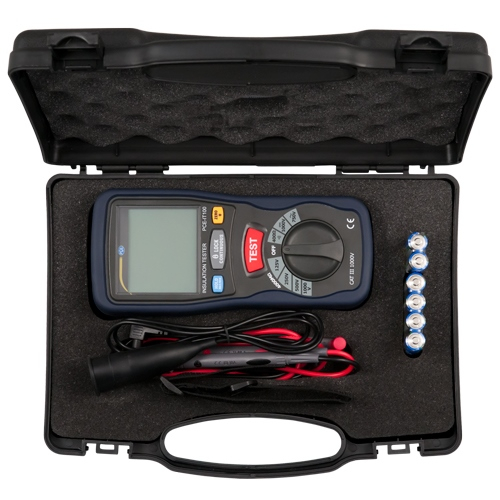

• 1 x Carrying case

Features:

• For plants (dry rooms): 1000 ohms x volts of operating voltage (eg at 230 volts> 230 kOhms)
• For installations (wet rooms, outdoors): 500 ohms x volts of operating voltage
• Earthed devices: 1000 ohms x volts of operating voltage
• Protected devices: 2 MOhm
• Power tools: 2 MOhm
• Protective extra-low voltage: 250 kOhm
• Electrical measuring devices: 5 MOhm
• Common test voltage values are 100 volts for low voltage and telecommunication systems, 500 volts for building installation and home appliances, 1000 volts for low voltage motors and transformers
• Large measuring range
• 4 different test voltages up to 1 kV
• Auto power-off function
• Safety: EN 61010-1, CAT III 1000V
• Dual display with backlight
• Single measurement and continuous measurement

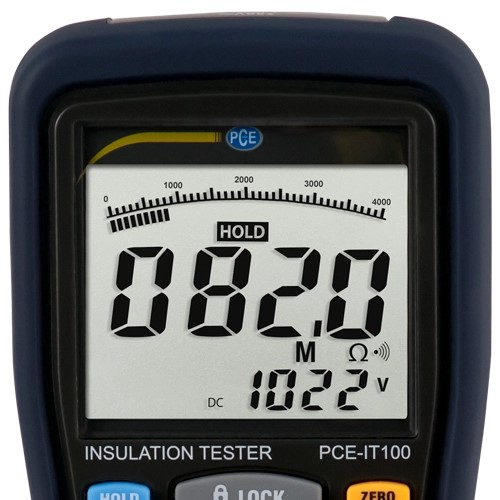

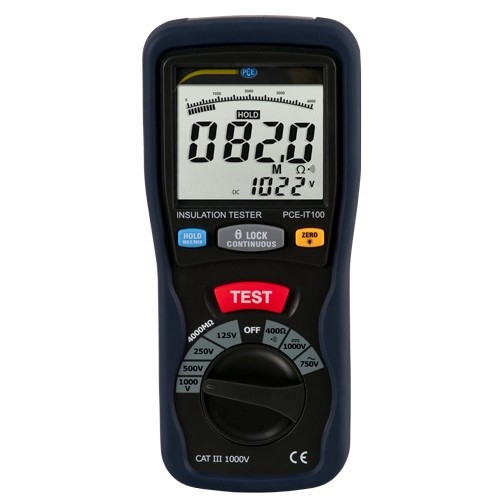

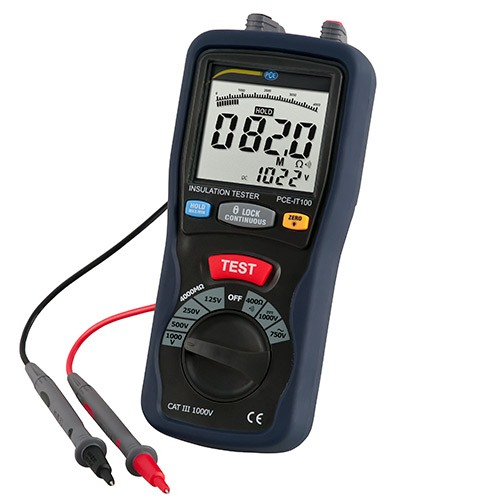

The insulation tester PCE-IT100 detects with auxiliary voltages of 125V, 250V, 500V, and 1000V insulation resistors up to max. 4000 MΩ. Furthermore, the measurement of low-resistance resistors up to 400 Ω and a measurement function for alternating and also DC voltages are offered by this insulation tester. A continuity tester with a beep is also part of the equipment of the insulation meter. In addition to a data-hold function for holding the current measured value, the max. or min. Value, in the insulation tester, can also be recorded during voltage and low-ohm measurements. Thanks to the large numbers and the lighting, the display of the insulation tester is easy to read even under difficult lighting conditions. The large buttons and the rotary knob for selecting the measuring functions allow easy operation of the PCE-IT 100 insulation meter.
