Optical Wavelength Labs (OWL), WPMS, Pro Series Wavesource Fiber Optic Light Sources, 850/1300 nm
Features:
- Temperature-stabilized sources
- Multimode version
- Optional integrated Visual Fault Locator (VFL) for multimode only or single-mode only versions
- SC connectors
- Re-chargeable Lithium Polymer battery - up to 150 hours battery life
- Combination selected source / Low battery indicator LEDs
- Intuitive 4-button interface
- Continuous Wave (CW) or modulated mode
- NISTtraceable
- Hand-held

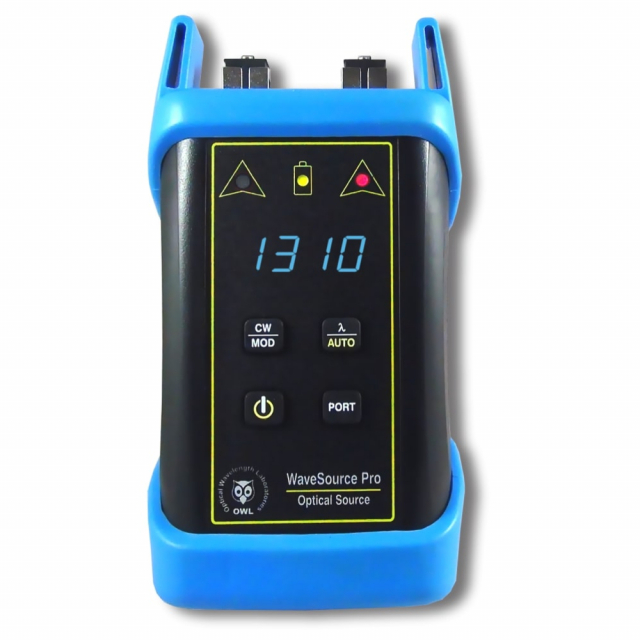

WaveSource Pro series light sources provide the fiber optic professional with a wide range of options for their testing needs. The WaveSource Pro comes configured with your choice of multimode and/or single-mode sources. Multimode only and singlemode only sources also have the option of having a Visual Fault Locator (VFL). WaveSource Pro series light sources provide high output and stability at an economical price. The sources provide temperaturecompensated outputs, and have an intuitive 4-button interface with controls for power, transmission mode, wavelength, and auto-test mode. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power. When used with a Fiber OWL 7 series optical power meter, the autotest function of the WaveSource Pro will allow auto-wavelength switching and auto-storage of test points, saving valuable test time.
