| Microscope Type | Compound |
| Magnifying Type | Multi-Power |
| Magnification Power for Brightfield | 40X-100X-250X-400X-1000X-2500X |
| Magnification Power for Phase Contrast | 100X-200X-250X-400X-500X-1000X-2500X |
| Optics | Achromatic |
| Field View | No |
| Head Type | Trinocular |
| Objective Power | 4X, 10X, 40X, 100X |
| Eyepiece Power | 10X, 25X |
| Eyepieces | Widefield WF10X/18 and WF25X |
| Objectives | Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil) |
| Phase Contrast Objectives | PH10X, PH20X, PH40X (S), PH100X (S, Oil) |

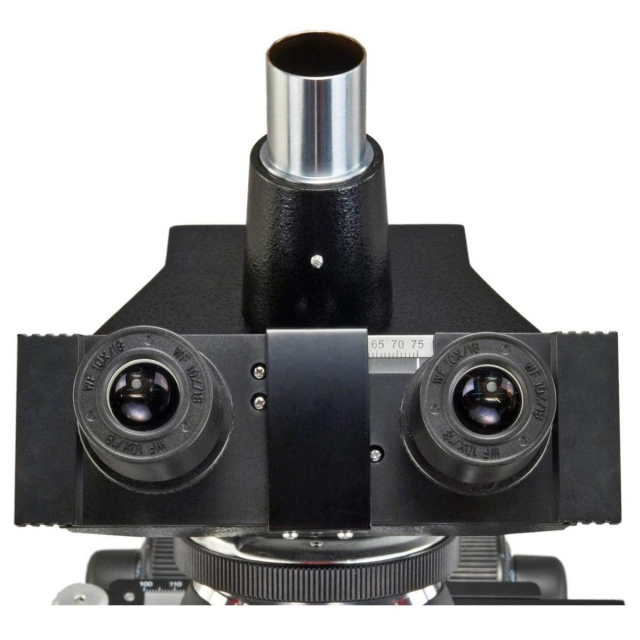

| Viewing Head | 45° Inclined 360° swiveling trinocular |
| Interpupillary Distance | Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm) |
| Diopter | Adjustable on both eyepiece tubes |
| Nosepiece | Revolving quadruple |
| Stage | - mechanical stain-resistant double layer
- size: 5-1/2" x 5-1/2" (140mm x 140mm)
- translation range: 3" x 2" (75mm x 50mm)
|
| Photo tube adjustment range | 5/8" (15mm) |
| Focus | - coaxial coarse and fine focus knobs on both sides
- rack and pinion adjustment
- tension control
|
| Condenser and Diaphragm | Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm |
| Illumination | - Transmitted (lower)
- Replaceable 3W LED light
- Variable intensity
|

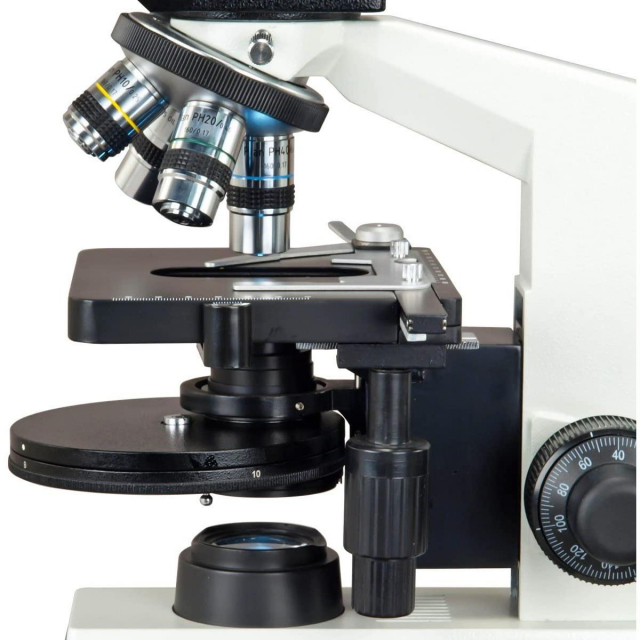

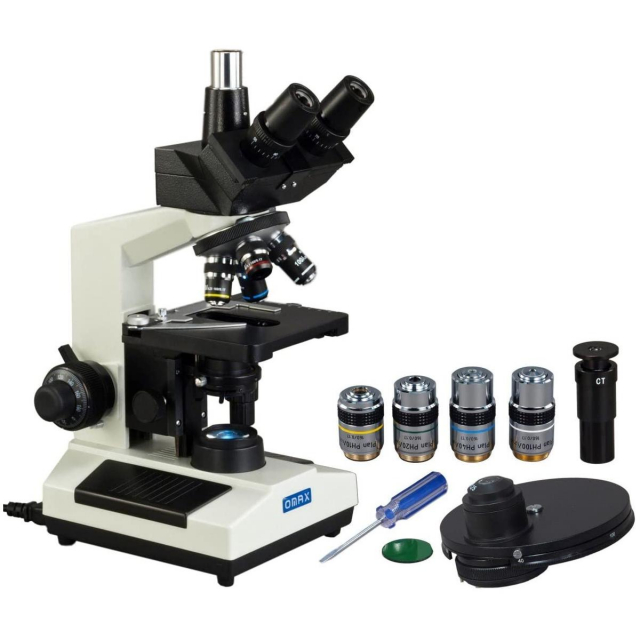

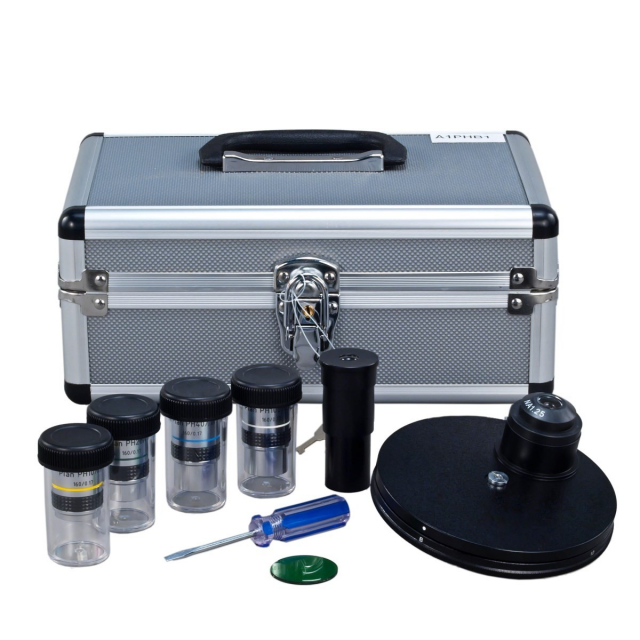

| Phase Contrast Kit | - Substage phase contrast condenser disk with five switchable positions
- One bright field NA1.25 with iris diaphragm Abbe condenser
- Four phase contrast condensers: 10X, 20X, 40X, 100X
- Each phase contrast condenser can be centered individually
- Four plan PH objectives: 10X, 20X, 40X (S), 100X (S, Oil)
- 37mm mounting size in diameter
- Centering telescope: 23.2mm
|
| Power Supply | 100V~240V 50/60Hz worldwide range (US and Canada power plug) |
| Dimension of Microscope | 16" x 10-1/4" x 7-7/8" (41cm x 26cm x 20cm) |
| Dimension of Phase Contrast Kit | 12" x 9" x 5-11/16" (30.5cm x 23cm x 14.5cm) |
| Shipping Weight | 15 lbs (7 kg) and 5 lbs (2 kg) |
