| Processor |
| Maximum Supported Cameras | 4xIP or 3xIP + 1xUSB |
| IP camera | RTSP(H.264 1080p at60/50, 720p at60/50) |
| USB Camera | UVC (MJPEG 1080p at30/25, 720p at30/25) |
| Camera Control Protocol | VISCA over IP / UVC |
| USB Device | USB 3.0 Type C, UVC |
| USB Format | MJPEG 1080p at30/25, 720p at30/25 |
| HDMI Output | HDMI 2.0 (GUI menu) |
| HDMI Output Format | 1080p at60/50 Hz |
| Power | USB Type-C Power (5V, 4A) |

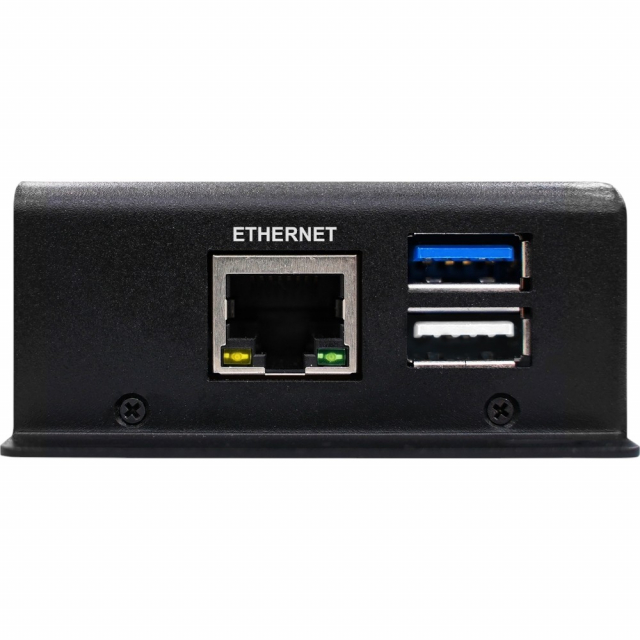

| Ethernet Port | Female RJ-45/10/100/1000 Base-T |
| USB Type A (USB Host) | Supports USB Camera / Mouse / Keyboard |
| Ref Audio Input | Line in (3.5mm phone jack) |
| LED Power Indicator | Yes |

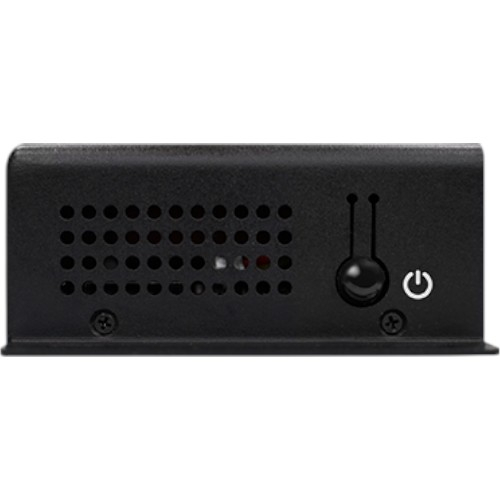

| Power Button | Yes |
| Supported Conference Software | Teams / ZoomRoom / Zoom / Google Meet |
| Supports Multi-array Microphones | Yes |
| Speaker Tracking | Yes, with supported directional microphone arrays |
| Webpage Configuration | Yes |
| Camera Auto Switching | Yes |
| Supports Multi-camera Control | Yes, up to 4 cameras |
| People Tracking | Yes |
| Center Stage | Yes |
| Multiview (Video Source Mixing) | Yes, PBP, three-split screen, four-split screen view |
| AI Director | Conversation mode, Customized mode |
| Motionless Instant Cut | Primary & Secondary Camera |
| Firmware Update | Over the Air (OTA) |
| Power Consumption | 20W |
| Operating Temperature | 0~40 °C |
| Operating Humidity | 90% |
| Dimension(WxHxD) | 4.96" x 2.76" x1.18" (126 mm x 70mm x 30mm) |
| Weight | 0.8 lbs (350g) |

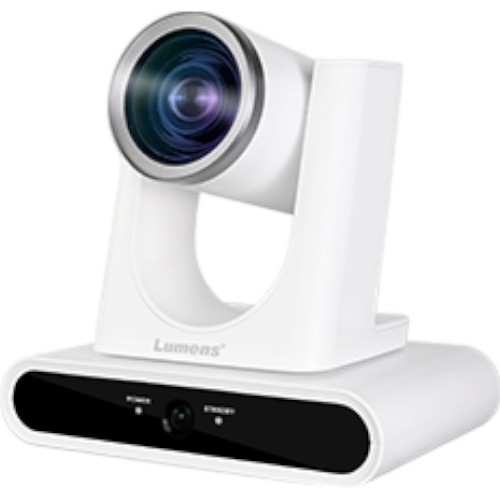

| Camera |
| PTZ Camera Sensor | 1 / 2.8" 2.16MP CMOS |
| PTZ Camera Video Format | - 1080p: 60 / 50 / 30 / 25
- 720p: 60 / 50
|
| Video Output (HD) Interface | HDMI / Ethernet / USB 3.0 |
| Optical Zoom | 20x |
| Digital Zoom | 12x |
| PTZ Camera Viewing Angle | 58.7° (H) / 33° (V) / 67.3° (D) |
| PTZ Camera Aperture | F1.6 ~ F2.8 |
| PTZ Camera Focal Length | 4.9mm ~ 94mm |
| Shutter Speed | 1 / 25 ~ 1 / 10,000 sec |
| Minimum Object Distance | 500mm |
| Video S / N Ratio | > 50dB |
| Minimum Illumination | 1 lux (F1.6, 50IRE, 30fps) |
| Exposure Control | Auto, manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Auto Tracking | Everywhere / Stage / Partition |
| Auto Framing | Everywhere / Partition |
| Gesture Control | Yes |
| Panoramic Camera Sensor | 1 / 2.8" 2MP CMOS |
| Panoramic Camera Video Format | 720p30 |
| Panoramic Camera Horizontal Viewing Angle | 111° |
| Panoramic Camera Vertical Viewing Angle | 62° |
| Panoramic Camera Aperture | F2.4 |
| Panoramic Camera Focal Length | 3.1mm |
| Panning Angle | +170 ~ -170° |
| Panning Speed | 0.2 ~ 120° / sec |
| Tilting Angle | +90 ~ -30° |
| Tilting Speed | 0.2 ~ 80° / sec |
| Preset Positions | 256 |
| IP Stream | PTZ Camera |
| Main | 1080p60/Second 720p30/Panoramic Camera 720p30 |
| IP Compression | H.264 |
| USB Output | 1080p30 |
| USB Compression | MJPEG |
| IP Protocol | HTTP / RTSP / RTMP / RTMPS / SRT |
| PoE | Yes (IEEE802.3af) |
| Audio Input | Line In / MIC In |
| Audio Output | Ethernet / USB 3.0 / HDMI |
| Audio Compression Format | AAC / PCM |
| Interface | RS-232 / Ethernet / USB 3.0 |
| Protocol | VISCA / ONVIF |
| UVC | 1.1 |
| UAC | Yes |
| DC In | 12V + / - 20% |
| Power consumption | PoE 11W/DC In 10W |
| Weight | 3.3lbs (1.5 kg) |
| Dimension | 7.5" x 7.3" x 5.4" / (190 x 185 x 138 mm) |
