VS-82HDXL Includes Only:

• Power Cord
• Switcher
• Rack "ears"

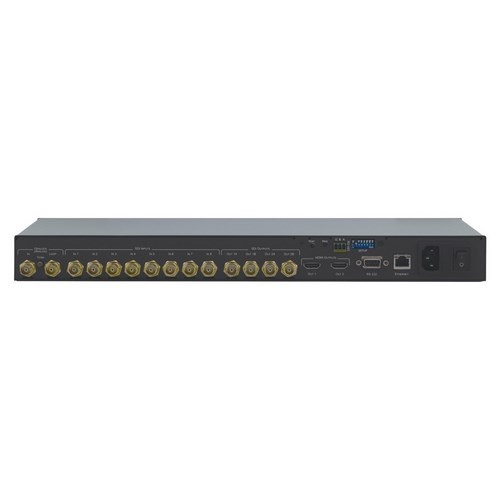

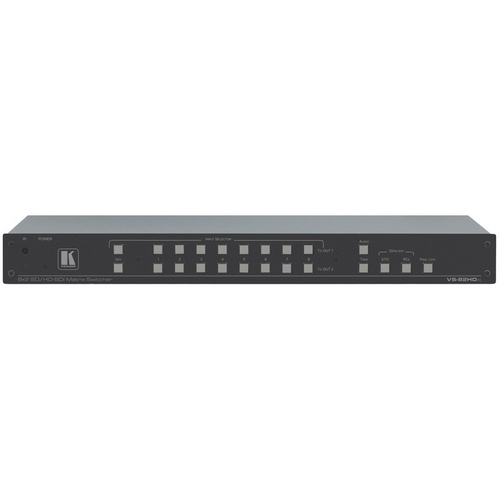

The Kramer VS82HDxl is a true 8 x 2 matrix switcher for SDI signals. The unit can switch any one of the eight SDI Inputs to one or both sets of triple Outputs (two-channel SDI and HDMI).

Features:

• Max. Data Rate - 3Gbps
• HDTV Compatible
• Multi-Standard Operation - SDI (SMPTE 259M/344M), HDSDI (SMPTE 292M), 3G HDSDI (SMPTE 424M)
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances
• Looping Input
• Supports ANC Data - Embedded audio, teletext, time code, etc
• Cable Equalization - Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals
• Clean Switching Feature - When the sources are genlocked to the selected genlock Input with a difference of no more than two lines of video
• Versatile Genlocking - Can use either an analog signal or any of the SDI Input signals for genlocking.
• If the selected genlock Input signal is unavailable, the VS82HDxl automatically selects the best SDI Input for the genlock signal
• Memory Locations - Stores 16 multiple switches as presets to be recalled and executed when needed
• Front Panel Control Lockout
• Flexible Control Options - Front panel, RS232/RS485 & Ethernet
