VP-8X8TP Includes Only:

• Switcher
• Power cord
• Windows® based Control software
• External remote IR receiver cable
• Rack "ears"

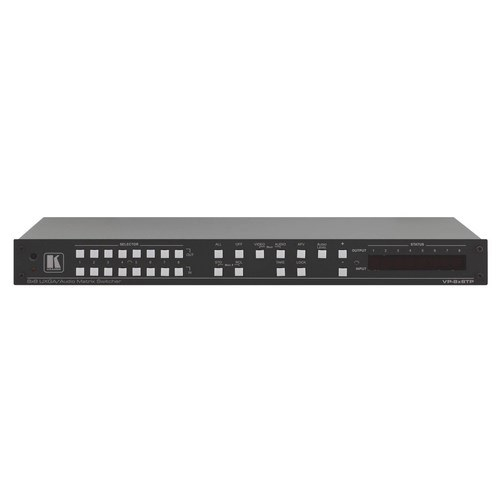

The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all Inputs to any or all twisted pair Outputs. A compatible twisted pair receiver converts each Output signal back to the original Input formats.

Features:

• High Resolution - Up to UXGA/1080p
• HDTV Compatible
• Active Input Indication™ Reporting - Each Input button on the front panel automatically lights when the unit detects a video signal on that Input. When an Input is selected for switching, the button changes to a different color to indicate it is the active Input
• Delayed Switching™ - Up to a 3.5s (user selectable) delay for clean switching
• Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Krisp® advanced sync processing can be enabled or disabled
• Power Connect™ Feature - A single connection to the transmitter (only) powers both units when the devices are within 150ft (50m) of each other
• Configurable EDID - For each Input, via RS232
• Take Button - Executes multiple switches all at once
• Memory Locations - Stores multiple switches as presets to be recalled and executed when needed
• Audio Breakaway Switching
• System Range - Over 100m (330ft) transmission range between the switcher and the TP receiver
• Audio Level Controls - For adjusting the signal level of each Input
• Front Panel Lockout
• Worldwide Power Supply - 100-240V AC
