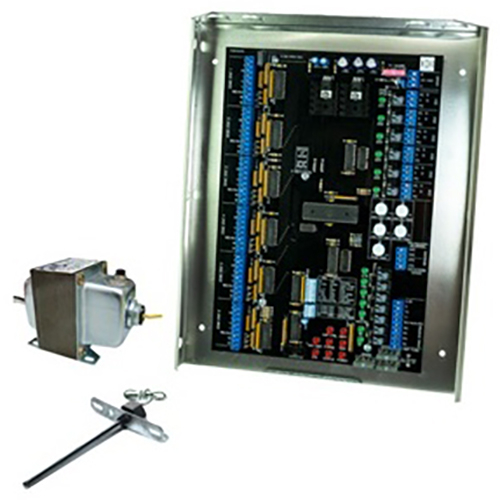

ZP6-KIT Includes Only:

• Panel
• Duct temperature sensor
• 75VA transformer

Features:

• 6 zones expandable to 12
• Auto changeover
• Priority cooling or majority wins
• Twenty-minute time share option
• LED status indication
• On-board adjustable high and low limits and balance points
• Staging by zone thermostat or adjustable staging timer
• Purge cycle option
• Competitively priced

The ZP6 is a 6-zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with the single-stage, multi-stage, heat pump, or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.
