Features:

• Fully modulating or two-position zone dampers and diffusers
• Up to 20 zones
• Auto changeover
• Works with single-stage, multi-stage, or heat pump systems
• No programming required
• Auxiliary heat control option for each zone
• Night setback option
• All low-voltage wiring
• LED status indication of equipment and zones
• Fused inputs and outputs
• Majority Wins control algorithm
• Selectable Minimum Call requirement
• Dedicated economizer output
• Requires only a single 24VAC transformer

Benefits:

• Low cost
• Simple to wire
• Easy to set up (No Laptop Required)
• Reliable design
• Toll-free phone number for technical support

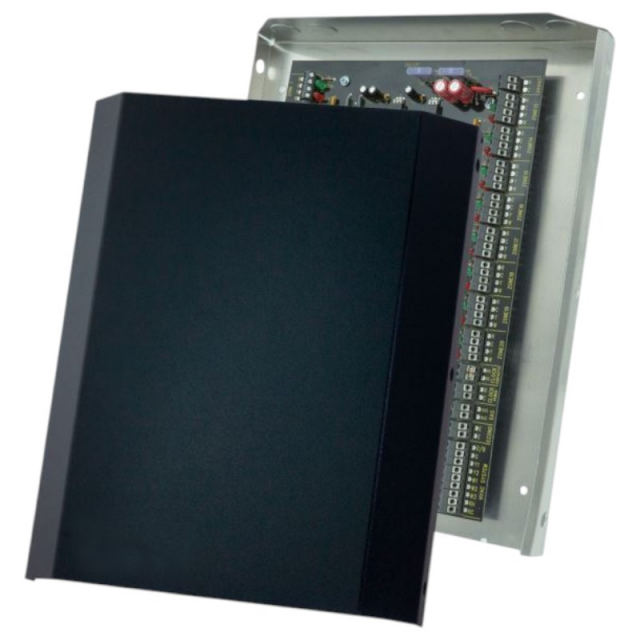

The Z-2000 (formerly the Z-1600) is the latest generation of commercial zone control systems that allows a single HVAC unit to have up to 20 individual zones. Each zone is controlled by its own space thermostat and a modulating or two-position zone damper. When a majority of zones are calling for cooling, the system operates in the cooling mode. The Z-2000 controls up to two stages of cooling to maintain a cooling discharge air setpoint. If a majority of zones are calling for heating, the system changes from the cooling mode to the heating mode. The Z-2000 then controls up to two stages of heating to maintain a heating discharge air setpoint. When the number of heating and cooling requests are equal, the system satisfies the cooling requests first.
