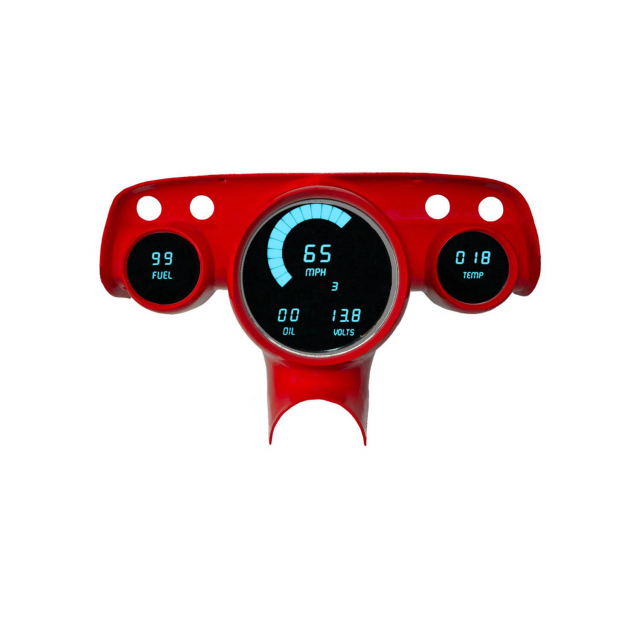

Intellitronix, DP1102T, LED Digital Replacement Gauge Panel (1957 Bel Air) Direct Replacement Gauge Cluster

DP1102T Includes only:

• Direct fit printed circuit boards
• Custom fit "smoked" Plexiglas faceplate
• Universal temperature sending unit
• Oil pressure sending unit
• Speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control
• Instructions for installation

Features:

• Speedometer reads up to 255 MPH
• Tachometer displays 0-6000 RPM in 300 RPM increments with programmable 4-6-8-cylinder engines
• Speedometer and tachometer are a combined unit
• Digital Water Temperature displays 100-300°F and range sender S8013 is included
• Oil Pressure reads 0-100 PSI range and the oil pressure sender is included.
• Voltmeter displays 7.0-25.5 volt range and no sending unit is required.
• Fuel level displays 0-99% range in 1% increments and is programmable for Jeep/Chrysler, Ford, GM, VDO (10-180 ohms) and aftermarket (240-33 ohms).
• The panel also includes turn signals, high beam, brake, and 4-wheel drive indicators

Manufactured to replace your factory gauges for easy installation into your existing gauge housing. The panel is built with platinum bright, long lasting CREE LEDs engineered as a complete, direct-fit solution, bolting to your existing gauge panel providing precision digital accuracy with all vital engine functions
