Availability
Typically In Stock
Quantity
Share:
Ask a question

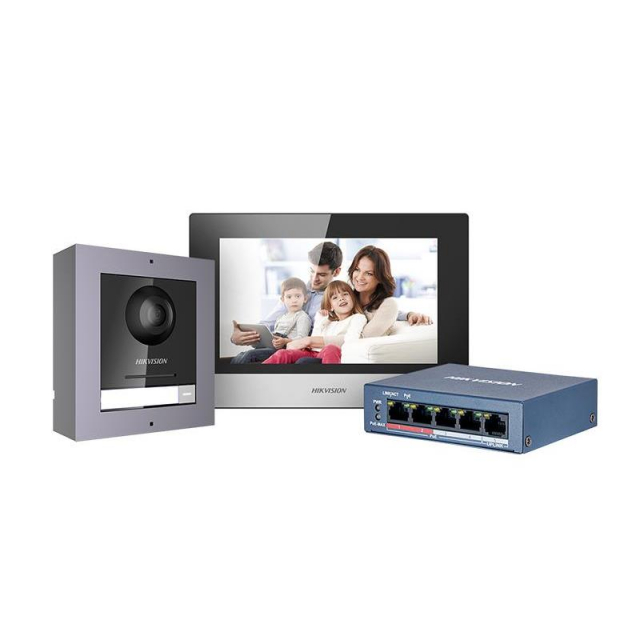

DS-KIS602 Includes Only:

  • 1 x DS-KD8003-IME1 Outdoor Station
  • 1 x DS-KD-ACW1 Surface Mount Cover and Frame Package
  • 1 x DS-KH6320-WTE1 Indoor Station
  • 1 x DS-3E0105P-E/M PoE Switch
  • 1 x Power Supply Unit (PSU)
  • 1 x 16 GB MicroSD Card

Features:

  • DS-KD8003-IME1 Door Station
    • 2 MP HD Video Intercom
    • Access Control
    • Noise Suppression and Echo Cancellation
    • H.264 Video Compression
    • Low Illumination
    • Tamper Alarm
    • Fisheye Camera with Supplemental IR Light
    • Supports Sub-Module Access (Maximum of 8)
    • Easy-To-Add Additional Modules
  • DS-KH6320-WTE1 Indoor Station
    • UI v2.0: User-Friendly Design
    • 7" Colorful IPS Capacitive Touch Screen with
    • 1024 x 600 Resolution Standard PoE
    • Stores Messages and Captured Pictures on SD Card
    • Remote Unlocking via Client Software or Mobile Client
    • Views Live Videos of Door Stations and External Cameras
    • Supports Wireless Network

The DS-KD8003-IME1 by Hikvision is a video door station that combines video intercom and access control functionality. It features a high performance CMOS, H.264 video compression, and a supplemental IR lighting mode, which facilitates night-time visual recognition. The DS-KH6320-WTE1 is a video intercom indoor station that features a 15.1 mm slim design and a colorful 7" capacitive touch screen. It can be combined with other Hikvision products and used to set up security solutions with varying levels of sophistication. The DS-3E0105P-E/M PoE Switch connects the video door station to the video intercom indoor station. It contains four PoE connection ports.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Indoor Station
Memory128 MB
Flash32 GB
Operating SystemEmbedded Linux
Display Screen7" colorful TFT LCD
Display Resolution1024 x 600
Operation MethodCapacitive touchscreen
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio CompressionStandard G.711u
Audio CompressionRate 64 kbps
Audio QualityNoise suppression and echo cancellation
Wired Network10/100 Mbps self-adaptive Ethernet
Wireless NetworkWi-Fi 802.11b/g/n
Network ProtocolTCP/IP, SIP, RTSP
Network Interface1-port self-adaptive RJ-45 10/100 Mbps
Alarm Input8-ch alarm inputs
Relay Output2
MicroSD CardUp to 32 GB, SD 2.0 or lower
RS-4851
Working Temperature14° to 131° F (-10° to 55° C)
Working Humidity10% to 90% non-condensing
Dimensions(W x H x D) 7.90" x 5.5" x 0.6" (200 mm x 140 mm x 15.1 mm)
Door Station
ProcessorEmbedded MCU
Operating SystemEmbedded Linux
Operation MethodPhysical button
Camera Low illumination2 MP HD IR camera
Video Compression StandardH.264
Resolution Main stream1920 x 1080, sub stream 720 x 480
BLCSupported
DNRSupported
WDRSupported
Anti-Flicker50 Hz, 60 Hz
Field of View Horizontal180°, vertical 96°
Physical Button1
Power Supply12 VDC/PoE (IEEE 802.3af)
Power Consumption≤10 W
Working Temperature-40° to 140° F (-40° to 60° C)
Working Humidity10% to 95% non-condensing
IP Protection LevelIP65
Dimensions(L x W x H) 3.86" x 3.93" x 1.73" (98 mm x 99.8 mm x 43.9 mm)
PoE Switch
Port Number4 x 100 Mbps PoE ports, 1 x 100 Mbps Ethernet port
Maximum Port Power30 W
Poe Power Budget35 W
Maximum Power Consumption38 W
Shell Metalmaterial, fan-free design
Net Weight0.2 kg (0.4 lb)
Dimension(L x H x D) 105 mm x 27.6 mm x 83.1 mm (4.1" x 1.1" x 3.3")
Power Supply48 VDC, 0.8 A

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Indoor Station
Memory128 MB
Flash32 GB
Operating SystemEmbedded Linux
Display Screen7" colorful TFT LCD
Display Resolution1024 x 600
Operation MethodCapacitive touchscreen
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio CompressionStandard G.711u
Audio CompressionRate 64 kbps
Audio QualityNoise suppression and echo cancellation
Wired Network10/100 Mbps self-adaptive Ethernet
Wireless NetworkWi-Fi 802.11b/g/n
Network ProtocolTCP/IP, SIP, RTSP
Network Interface1-port self-adaptive RJ-45 10/100 Mbps
Alarm Input8-ch alarm inputs
Relay Output2
MicroSD CardUp to 32 GB, SD 2.0 or lower
RS-4851
Working Temperature14° to 131° F (-10° to 55° C)
Working Humidity10% to 90% non-condensing
Dimensions(W x H x D) 7.90" x 5.5" x 0.6" (200 mm x 140 mm x 15.1 mm)
Door Station
ProcessorEmbedded MCU
Operating SystemEmbedded Linux
Operation MethodPhysical button
Camera Low illumination2 MP HD IR camera
Video Compression StandardH.264
Resolution Main stream1920 x 1080, sub stream 720 x 480
BLCSupported
DNRSupported
WDRSupported
Anti-Flicker50 Hz, 60 Hz
Field of View Horizontal180°, vertical 96°
Physical Button1
Power Supply12 VDC/PoE (IEEE 802.3af)
Power Consumption≤10 W
Working Temperature-40° to 140° F (-40° to 60° C)
Working Humidity10% to 95% non-condensing
IP Protection LevelIP65
Dimensions(L x W x H) 3.86" x 3.93" x 1.73" (98 mm x 99.8 mm x 43.9 mm)
PoE Switch
Port Number4 x 100 Mbps PoE ports, 1 x 100 Mbps Ethernet port
Maximum Port Power30 W
Poe Power Budget35 W
Maximum Power Consumption38 W
Shell Metalmaterial, fan-free design
Net Weight0.2 kg (0.4 lb)
Dimension(L x H x D) 105 mm x 27.6 mm x 83.1 mm (4.1" x 1.1" x 3.3")
Power Supply48 VDC, 0.8 A
Note

Note: Please read description carefully. Do not base your order on the picture presented.
