Measuring Ranges (A):
Measuring Ranges (A): 30 / 300 / 3000

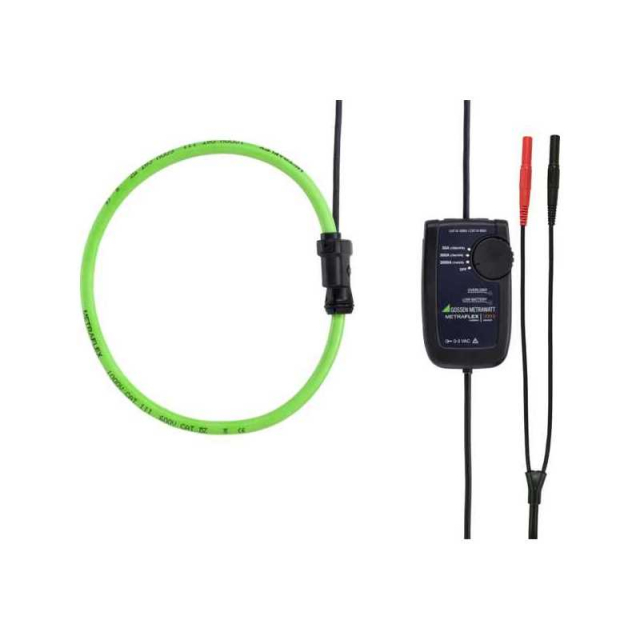

Gossen Metrawatt, Z207E, Metraflex 3000 Flexible Current Sensor, 30/300/3000 A, Loop Length 610mm

Features:

  • Wide range of applications, 3 measuring ranges 30 A/300 A/3000 A AC and large bandwidth of 10 Hz - 20 kHz for harmonic analysis
  • Simultaneous measurement in all 3 phases (METRAFLEX 3003)
  • Precise measurements even with low currents, due to wide dynamic range and high sensor sensitivity
  • Low conductor position influence and Minimum stray field influence
  • Easy to operate in restricted space thanks to a small sensor cross-section of 9.9 mm and slim end cap of 13.6 mm
  • Safe handling even with protection gloves; the opening of the sensor
  • and measuring range setting in one-hand operation
  • Extremely long battery life of up to 2,000 hours, (METRAFLEX 3003 up to 1,000 hours)
  • External power supply for long-term measurements with MAVOWATT 50, connector cable included (METRAFLEX 3001/3003)
  • Current sensor with protection type IP65, measuring amplifier with IP40
  • High level of safety for the user, measurement category 1000 V atCATIII, 600 V atCATIV, and unlimited overload capacity

The flexible current transformers can be placed around one or several conductors of any type and design (insulated cable, busbars, pipes). Internal batteries allow for the independent operation of the measuring amplifier.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Measuring Ranges30 A/ 300 A /3000 A
Output Signal (AC) 100 mV/A /10 mV/A /1 mV/A
Residual Current/Ripple8 mV eff. / 2 mV eff. / 2 mV eff.
Measuring Uncertainty (45 - 65 Hz) ±1% ±0,1 A / ±1% ±0,1 A / ±1% ±1 A
Overload CapacityUnlimited
Linearity±0,2% of rdg.
Bandwidth10 Hz bis 20 kHz (-10%)
Phase Angle Error< ±1° (45... 65 Hz)
Minimum Load Impedance100 kO for indicated accuracy

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Measuring Ranges30 A/ 300 A /3000 A
Output Signal (AC) 100 mV/A /10 mV/A /1 mV/A
Residual Current/Ripple8 mV eff. / 2 mV eff. / 2 mV eff.
Measuring Uncertainty (45 - 65 Hz) ±1% ±0,1 A / ±1% ±0,1 A / ±1% ±1 A
Overload CapacityUnlimited
Linearity±0,2% of rdg.
Bandwidth10 Hz bis 20 kHz (-10%)
Phase Angle Error< ±1° (45... 65 Hz)
Minimum Load Impedance100 kO for indicated accuracy
