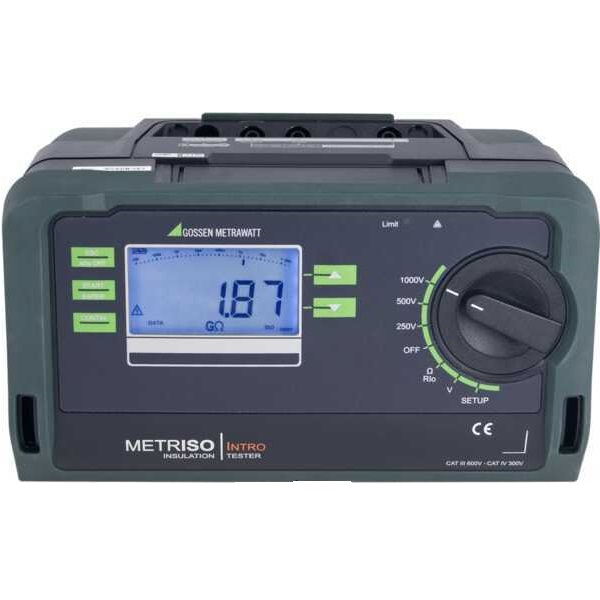

Gossen Metrawatt, M550N, Metriso Intro Test Instrument for Insulation, Low-resistance and Voltage Measurements

M550N Includes Only:

• 1 Insulation and resistance measuring instrument
• 1 Carrying strap
• 1 KS17-4 cable set
• 1 Condensed operating instructions
• 1 Supplement Safety Information
• 1 Detailed operating instructions

Features:

• The insulation and resistance measuring instruments allow for quick and effective testing of protective measures in accordance with:
  • DIN VDE 0100
  • ÖVE-EN 1 (Austria)
  • SEV 1000 (Switzerland)
  • and regulations specific to other countries as well.
• It's capable of executing all required electrical measurements and tests quickly and safely, in a retraceable fashion:
  • Insulation measurement per EN 61557-2 / VDE 0413 part 2
  • Low-resistance measurement per EN 61557-4 / VDE 0413 part 4
  • Voltage testing and measurement up to 1000 V
  • Measurement category 300 V CAT IV / 600 V CAT III

Applications:

• The insulation measuring instrument is suitable for the following applications:
  • MetrISO Application Measurement of insulation resistance at voltage-free devices and equipment, up to 1000 V
  • Testing of the resistance of earthing, protective, and equipotential bonding conductors
  • Checking of test objects for the absence of voltage
  • Testing of floor covering electrostatic discharge capability (using shielded measurement cables) - EN 1081
• Simplifies your measuring tasks:
  • Warning for hazardous shock voltages
  • A quick test with a red LED indicator on the instrument
  • Acoustic signal generation in the event of limit value violations
  • Electronic fuse for protection of the low-resistance measurement

The MetrISO Intro fulfills all expectations and requirements for getting started with the premium class. Thanks to the included functions, it's especially well-suited for applications involving troubleshooting and inspection of electrical installations, as well as for use in service and industrial applications.
