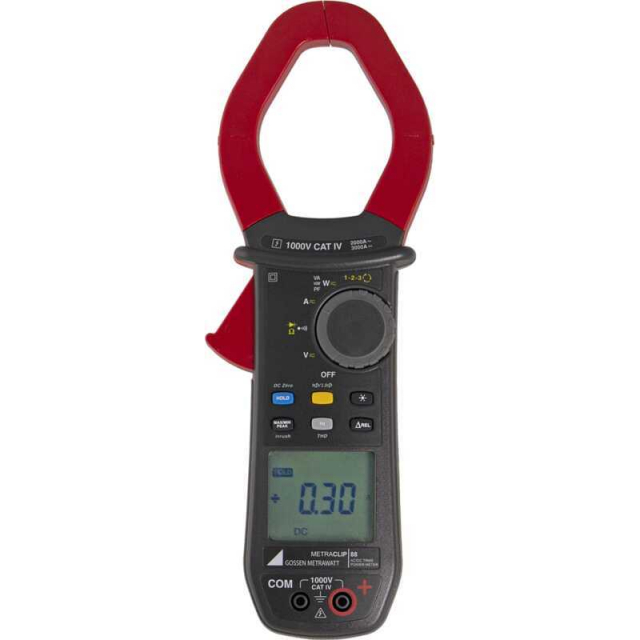

Gossen Metrawatt, M312M, MetraClip 88 Clamp Multimeter for Current, Voltage, Power, Harmonics and Frequency, 1000 V CAT IV
M312M Includes Only:
- 1 Clamp Multimeter
- 2 Measurement cables (red and black, 1.6 m long), each with contact protected plug and plug-on test probe, CAT IV 1000 V/15 A
- 4 1.5 V batteries
- 1 Carrying pouch with Holding strap
- 1 Test report
- 1 Safety Data sheet
- 1 Condensed operating instructions in D/GB/F/E/I, printed
- 1 Operating instructions in D/GB/F/E/I, on Mini CD ROM
Features:
- Electrical safety per IEC 61010
- TRMS measurement
- Current measurement (AC and DC)
- Voltage measurement (AC and DC)
- Power measurement (W, VA, var, and PF)
- THD measurement
- Starting and overcurrent measurement (true inrush)
- Frequency measurement
- Automatic measuring range selection
- Relative and differential measurements
- Display value storage (Data Hold)
- Data logging (Min., Max., peak)
- Continuity test, acoustic signal
- Resistance measurement
- Diode test
- Phase sequence display
- Phase sequence
- LCD / digits backlit in blue10,000
- Auto power-off
- Test report including
Thanks to its large clamp opening, the MetraClip 88 clamp multimeter is suitable for the low-voltage range with high power values, e.g. in the chemicals and petrochemicals industry, as well as for mixed AC+DC measurements at distribution and transmission networks.
