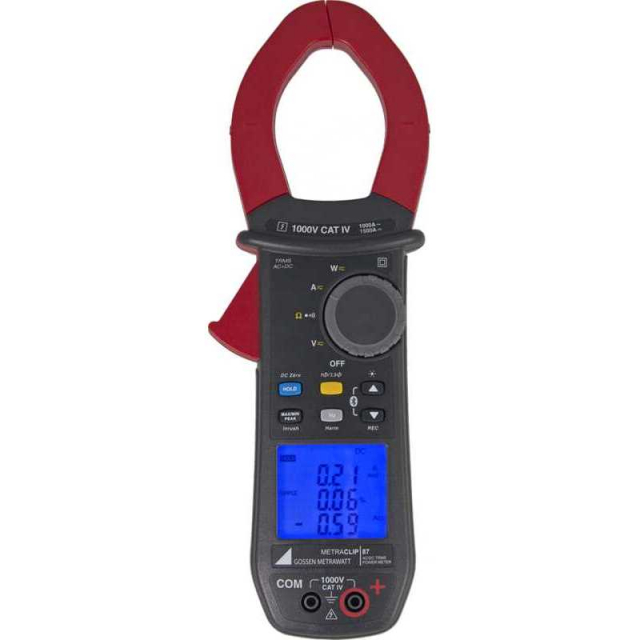

Gossen Metrawatt, M312L, MetraClip 87 Clamp Multimeter for Current, Voltage, Power, Harmonics and Frequency, 1000 V CAT IV
M312L Includes Only:
- 1 Clamp Multimeter
- 2 Measurement cables (red and black, 1.6 m long), each with contact protected plug and plug-on test probe, CAT IV 1000 V/15 A
- 2 Alligator clips, red and black, CAT IV 1000 V/15 A
- 4 1.5 V batteries
- 1 Carrying pouch with Holding strap
- 1 Test report
- 1 Safety Data sheet
- 1 Condensed operating instructions in D/GB/F/E/I, printed
- 1 Operating instructions in D/GB/F/E/I, on Mini CD ROM
- 1 PC program for measured value evaluation on Mini CD ROM
Features:
- Electrical safety per IEC 61010
- TRMS measurement
- Current measurement (AC and DC)
- Voltage measurement (AC and DC)
- Power measurement (W, VA, var and PF)
- Crest factor measurement (CF)
- Displacement factor (DPF)
- Residual ripple
- THD measurement
- Starting and overcurrent measurement (true inrush)
- Frequency measurement
- Automatic measuring range selection
- Display value storage (Data Hold)
- Data logging (Min., Max., peak)
- Continuity test, acoustic signal
- Resistance measurement
- Recording of measured values
- Wireless Data transmission via Bluetooth
- LCD / digits backlit in blue 10,000
- Auto power-off
- Software for analyzing measured values
- Test report including
The MetraClip 87 clamp multimeter is suitable for the measurement of medium power values in the low-voltage range, and thus offers optimized safety for all types of systems and under any measuring conditions. In addition to applications in the areas of maintenance, troubleshooting and repair, the MetraClip is also used for measurements in railway systems and low-voltage distribution networks.
