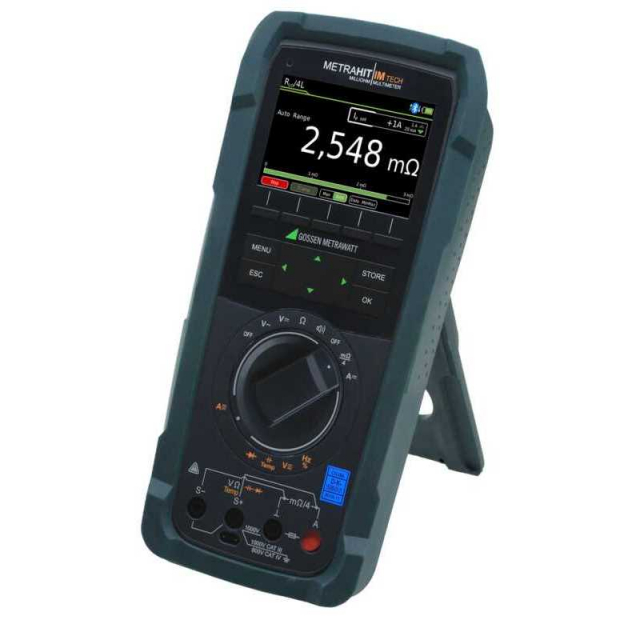

Gossen Metrawatt, M272S, MetraHit IM Tech BT Multimeter, Milliohmmeter and Data Logger

M272S Includes Only:

• 1 MetraHit IM Xtra multimeter with rubber holster
• 1 pair of type KS17-2 safety measurement cables with a 4 mm test probe
• 1 pair of type KC4 Kelvin clips
• 1 quick-change, rechargeable lithium polymer battery with micro USB charging socket
• 1 USB mains power pack (5 V DC, 2 A) with cable including a micro USB charging plug
• 1 IzytroniqBusiness Starter software
• 1 set of condensed operating instructions, German/English
• 1 set of operating instructions in German and English (download)
• 1 DAkkS calibration certificate
• 1 hard case for the multimeter and accessories

Features:

• Milliohm measurement using a 4-wire connection (Kelvin measurement) with 200 mA or 1 A
• High-End TRMS Multimeter with 100 kHz TRMS bandwidth
• Color graphics display and rechargeable lithium polymer battery
• data logger for 300,000 readings
• Bonding test and equipotential bonding measurement, e.g. on aircraft outer skins (lightning protection, wick test)
• Precise measurement of smallest resistances with micro Ohm resolution by means of 4-wire Milliohm Measurement
• Versatile applications, bonding tests respectively equipotential measurements e.g. at aircraft's outer surfaces for lightning protection (wick test)
• hand-held, mains independent device
• 4-wire milliohm measurement with Kelvin connection and 200 mA or 1 A measuring current for precise measurement of extremely small resistances with a resolution of 1
• Multifunctional instrument
• TRMS AC / AC+DC measurement for current/voltage up to 10/100 kHz
• AC, AC+DC low-pass filter
• Direct current measurement
• Current measurement with clamp sensors: The transformation ratio can be adjusted with the CLIP from 1:1 to 1:1000 and is taken into account in the amperage display.
• Capacitance measurement
• Precision temperature measurement - °C, °F for RTD and TC-K sensors
• Diode measurement (Kflow up to 5.1 V) and continuity testing
• Acoustic signals
• Acquisition of Min./Max. values, Data Hold
• Data logger thanks to the integrated memory module and real-time clock, for individual measurements as well
• The push/print function transfers measured values to application software by simply pressing a key
• MetraLog APP for Android OS
• Color graphic display
• Modular power supply: standard quick-change rechargeable lithium battery and mains module with USB port, change without interrupting the measuring circuit thanks to patented touch-protected module socket
• Automatic blocking sockets (ABS) for the current input
• Housing with IP 52 protection, dust, and splash protected, replaceable rubber holster
• Bluetooth integrated, USB
• IzytroniqWindows software for documentation, preparation of test reports, and graphic evaluation of measurements

Applications:

• The multimeter is a portable, extremely rugged instrument designed for use in the field. It's suitable for maintenance, service, and diagnostics in electro-technics and machinery.
• The instrument combines a 4-wire milliohm-meter and a universal TRMS multimeter.
• It's ideal for precise measurement of the smallest resistances, e.g. for bonding tests and lightning protection measurements.

An All-In-One device with 30,000 digits reading: Milliohm- and Multimeter with Data Logger Compact and multifunctional for use in the field and laboratories. Can be used advantageously in aircraft cockpits as well as in other constricted spaces, which would otherwise require the use of several individual instruments.
