Buy Fluke FLUKE-87V/PRV240, 87V Multimeter with PRV240 Proving Unit Kit

info@primebuyb2b.com

1-855-797-1969
1-908-282-3433 (Intl.)

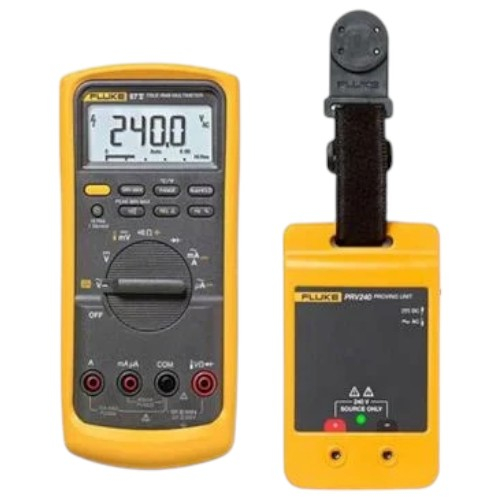

Fluke, FLUKE-87V/PRV240, 87V Digital Multimeter with PRV240 Proving Unit Kit

FLUKE-87V/PRV240 Includes Only:

Fluke 87V
PRV240

Features:

Identify complex electrical problems fast
Verify proper voltage measurement

The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations. PRV240 is a portable pocket sized battery powered voltage source to verify proper voltage measurement.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Fluke 87V

Voltage DC

Max voltage: 1000 V
Accuracy: ±(0.05% + 1)
Maximum resolution: 10 μV

Voltage AC

Max voltage: 1000 V
Accuracy: ±(0.7% + 2) True RMS
AC bandwidth: 20 kHz with low pass filter; 3 db at 1 kHz
Maximum resolution: 0.1 mV

Current DC

Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(0.2% + 2)
Maximum resolution: 0.01 μA

Current AC

Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(1.0% + 2) True RMS
Maximum resolution: 0.1 μA

Resistance

Maximum resistance: 50 MΩ
Accuracy: ±(0.2% + 1)
Maximum resolution: 0.1 Ω

Capacitance

Maximum capacitance: 9999 μF
Accuracy: ±(1% + 2)
Maximum resolution: 0.01 nF

Frequency

Maximum frequency: 200 kHz
Accuracy: ±(0.005% + 1)
Maximum resolution: 0.01 Hz

Temperature

Operating: -4 to 131°F (-20 to 55°C)
Storage: -40 to 140°F (-40 to 60°C)

Operating Altitude

6561' (2000 m)

Dimensions

7.9 x 3.9 x 2.05" (201 x 98 x 52 mm)

Weight

0.8 lb (355 g)

PRV240

Output Voltage: 240 V AC RMS or DC

±10 % ≥1 MΩ

Output Voltage: LoZ >3 kΩ load

60 V AC typical; 50 V AC RMS minimum

LED Power Indicator

Turns on when output voltage is present

Battery

4 x AA Alkaline batteries NEDA (24 A IEC LR03)

Battery Life

5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load

Operating Temperature

-10 to +50°C

Operating Humidity

0 % to 90 % (0 to 35°C)

Operating Altitude

2000 m

Safety

IEC61010-1, IEC61010-2-030

Certification

CSA-CUS, CE

Dimensions

11.7 x 7.4 x 2.8 cm (4.6 x 2.9 x 1.1")

Weight

8 oz (0.23 kg) includes batteries

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Fluke 87V

Voltage DC

Max voltage: 1000 V
Accuracy: ±(0.05% + 1)
Maximum resolution: 10 μV

Voltage AC

Max voltage: 1000 V
Accuracy: ±(0.7% + 2) True RMS
AC bandwidth: 20 kHz with low pass filter; 3 db at 1 kHz
Maximum resolution: 0.1 mV

Current DC

Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(0.2% + 2)
Maximum resolution: 0.01 μA

Current AC

Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(1.0% + 2) True RMS
Maximum resolution: 0.1 μA

Resistance

Maximum resistance: 50 MΩ
Accuracy: ±(0.2% + 1)
Maximum resolution: 0.1 Ω

Capacitance

Maximum capacitance: 9999 μF
Accuracy: ±(1% + 2)
Maximum resolution: 0.01 nF

Frequency

Maximum frequency: 200 kHz
Accuracy: ±(0.005% + 1)
Maximum resolution: 0.01 Hz

Temperature

Operating: -4 to 131°F (-20 to 55°C)
Storage: -40 to 140°F (-40 to 60°C)

Operating Altitude

6561' (2000 m)

Dimensions

7.9 x 3.9 x 2.05" (201 x 98 x 52 mm)

Weight

0.8 lb (355 g)

PRV240

Output Voltage: 240 V AC RMS or DC

±10 % ≥1 MΩ

Output Voltage: LoZ >3 kΩ load

60 V AC typical; 50 V AC RMS minimum

LED Power Indicator

Turns on when output voltage is present

Battery

4 x AA Alkaline batteries NEDA (24 A IEC LR03)

Battery Life

5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load

Operating Temperature

-10 to +50°C

Operating Humidity

0 % to 90 % (0 to 35°C)

Operating Altitude

2000 m

Safety

IEC61010-1, IEC61010-2-030

Certification

CSA-CUS, CE

Dimensions

11.7 x 7.4 x 2.8 cm (4.6 x 2.9 x 1.1")

Weight

8 oz (0.23 kg) includes batteries

Note

Note: Please read description carefully. Do not base your order on the picture presented.
