FLUKE-789 Includes Only:

  • Multimeter
  • 24 V loop power supply

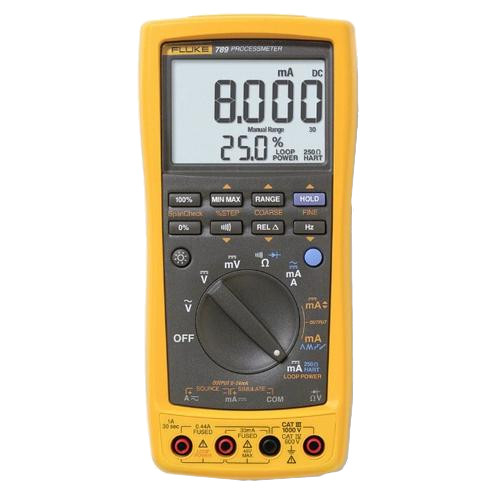

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that's not only twice as large as the Fluke 787B but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor. The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smartphone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.

Features with all optional accessories:

  • Ultimate troubleshooting tool for electricians and instrumentation professionals
  • Combines the functionality of a loop calibrator with the power of a precision 1000 V, 440 mA True-RMS digital multimeter
  • Optional IR3000FC module for wireless data logging capabilities via Fluke Connect® mobile App
  • Very large dual display with enhanced two-level backlight brightness settings
  • Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
  • Simultaneous displays mA and % of scale readings
  • Provides 20 mA DC current source/loop calibrator/simulator
  • Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
  • Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
  • Provides 1200 ohm drive capability on mA source
  • Offers HART mode setting with loop power and a built-in 250-ohm resistor
  • Offers externally accessible fuses and batteries for easy replacement
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Subject to the use of all the optional accessories
Resolution0.05% of span
Drive capability24 V Compliance or 1200 Ω at 20 mA
Frequencyto 19.999 kHz, 0.005% + 1 LSD
ContinuityBeeps for resistance < 100 Ω
Voltage measurementRange
Resolution0.1 mV to 1.0 V
Accuracy0.1% Rdg + 1 LSD (VDC)
Resistance measurementto 40 MΩ, 0.2% + 1 LSD
Diode test2.0 V shoes diode voltage drop
Display current and % of spanYes
Auto Step, Auto RampYes
Operating temperature-20°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)95% up to 30°C
75% up to 40°C
45% up to 50°C
35% up to 55°C
Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Electrical safetyDesigned in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage categoryIEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
Maximum voltage1000 V RMS
Size (H x W x L)50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight610 g (1.6 lbs)
Batteries4 AA alkaline batteries
Battery life140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibrationRandom, 2 g, 5-500 Hz
1 meter drop test

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Subject to the use of all the optional accessories
Resolution0.05% of span
Drive capability24 V Compliance or 1200 Ω at 20 mA
Frequencyto 19.999 kHz, 0.005% + 1 LSD
ContinuityBeeps for resistance < 100 Ω
Voltage measurementRange
Resolution0.1 mV to 1.0 V
Accuracy0.1% Rdg + 1 LSD (VDC)
Resistance measurementto 40 MΩ, 0.2% + 1 LSD
Diode test2.0 V shoes diode voltage drop
Display current and % of spanYes
Auto Step, Auto RampYes
Operating temperature-20°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)95% up to 30°C
75% up to 40°C
45% up to 50°C
35% up to 55°C
Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Electrical safetyDesigned in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage categoryIEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
Maximum voltage1000 V RMS
Size (H x W x L)50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight610 g (1.6 lbs)
Batteries4 AA alkaline batteries
Battery life140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibrationRandom, 2 g, 5-500 Hz
1 meter drop test
