FLUKE-438-II/BASIC Includes Only:

• Power Quality and Motor Analyzer
• Test lead set
• Battery
• Power adapter
• 8GB SD card
• Soft carry case
• CD Rom with PowerLog 430-II software and user documentation

Features:

• Brings key motor analysis parameters like speed, torque and mechanical power and calculates motor efficiency without mechanical sensors
• Highest safety rating in industry; 1000 V CAT III / 600 V CAT IV
• Calculates mechanical power and efficiency without mechanical sensors. Just connect to the input conductors
• Measures electrical power parameters such as voltage, current, power, apparent power, power factor, harmonic distortion and unbalance to identify characteristics that impact motor efficiency
• Identify power quality issues such as dips, swells, transients, harmonics and unbalance
• Uses PowerWave data capture to capture fast RMS data, and show half-cycle averages and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
• Offers waveform capture function to capture 100/120 cycles (50/60 Hz) of each detected event, in all modes, without set-up
• Uses automatic transient mode to capture waveform data at 200 kS/s on all phases simultaneously up to 6 kV
• Automatically calculate motor derating according to NEMA/IEC guidelines

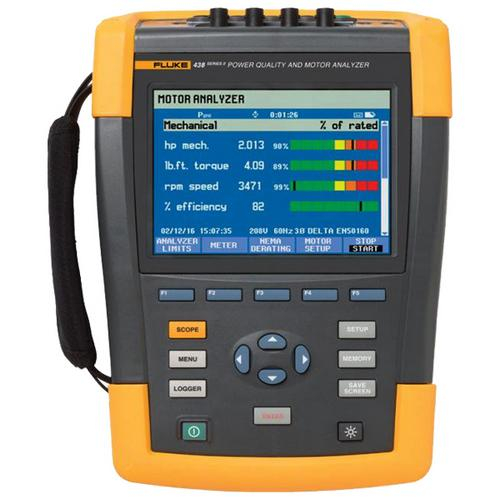

This Power Quality and Motor Analyzer adds key mechanical measurement capabilities for electric motors to the advanced power quality. Quickly and easily measure and analyze key electrical and mechanical performance parameters such as power, harmonics, unbalance, motor speed, torque and mechanical power without the need of mechanical sensors.

For more information, please see Data Sheet
