Buy Fluke FLUKE-287/FVF, Multimeter with FlukeView Forms Software

info@primebuyb2b.com

1-855-797-1969
1-908-282-3433 (Intl.)

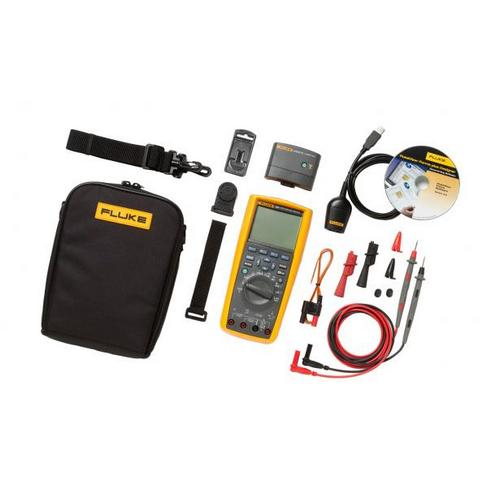

FLUKE-287/FVF Includes Only:

Fluke 287 Multimeter
FlukeView Forms Software with cable
80BK-A Thermocouple Probe
CAT III 1000 V 10 A Modular Test Leads (red, black)
CAT II 1000 V 10 A Modular Test Probes (red, black) and CAT III rated caps
CAT III 1000 V 10 A Alligator Clips (red, black)
Magnetic hanging strap
TLK287 Electronic Test Lead Set
C280 Soft Case
Amp Jack Plug Set

Features:

Let team see what see in an instant with ShareLive video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred.
Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a event.
Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time.
Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
On board help screens for measurement functions.
Saved measurements allow to name and recall measurements made in the field.
Multi-lingual interface.
Multiple logging sessions possible without download.
0.025% basic DC accuracy.
100 kHz ac bandwidth.
Real time clock for automatic time stamping of saved readings.
True RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
Measure up to 10 A (20 A for 30 seconds).
100 mF capacitance range.
Temperature function.
Relative mode to remove test lead resistance from low ohms or capacitance measurements.
Peak capture to record transients as fast as 250 µs.
FlukeView forms enable to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

DC Volts

Range/Resolution

50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

Basic Accuracy

0.025%

AC Volts

Range/Resolution

50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

Basic Accuracy

0.4% (True RMS)

DC Current

Range/Resolution

500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

Basic Accuracy

0.05%

AC Current

Range/Resolution

500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

Basic Accuracy

0.6% (True RMS)

Temperature (Excluding Probe)

Range/Resolution

-328 to 2462°F (-200 to 1350°C)

Basic Accuracy

1.0%

Resistance

Range/Resolution

500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ

Basic Accuracy

0.05%

Capacitance

Range/Resolution

1.000 n, 10.00 nF, 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100 mF

Basic Accuracy

1.0%

Frequency

Range/Resolution

99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

Basic Accuracy

0.005%

General

Maximum Voltage Between any Terminal and Earth Ground

1000 V

Battery Type

6 x AA alkaline batteries, NEDA 15A IECLR6

Battery Life

100 hours minimum, 200 hours in logging mode

Operating Temperature

-4 to 131°F (-20 to 55°C)

Storage Temperature

-40 to 140°F (-40 to 60°C)

Relative Humidity

0 to 90% at 32 to 98.6°F (0 to 37°C)
0 to 65% at 98.6 to 113°F (37 to 45°C)
0 to 45% at 113 to 131°F (45 to 55°C)

Electromagnetic Compatibility

EMC EN61326-1

Vibration

Random vibration per MIL-PRF-28800F Class 2

Shock

1 meter drop per IEC/EN 61010-1 3rd Edition

Multiple on Screen Displays

Yes

True RMS AC Bandwidth

100 kHz

dBV/dBm

Yes

DC mV Resolution

1 µV

Megohm Range

Up to 500 MΩ

Conductance

50.00 nS

Continuity Beeper

Yes

Battery/Fuse Access

Yes/Yes

Elapse Time Clock

Yes

Time of Day Clock

Yes

Min-max-avg

Yes

Peak

250 µs

Duty Cycle

0.01 to 99.99%

Pulse Width

0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms

Hold

Yes

Isolated Optical Interface

Yes

Auto/Touch Hold

Yes

Reading Memory

Yes

Log to PC

Yes

Interval/Event Logging

Yes

Logging Memory

Up to 10,000 readings

Dimensions

8.75 x 4.03 x 2.38" (22.2 x 10.2 x 6 cm)

Weight

1.9 lbs (870.9 g)
