FLUKE-1760TRBASIC Includes Only:

• Three-Phase Power Quality Recorder
• Internal Flash-memory 2 GB
• PQ Analyze software on CD-ROM
• Ethernet cable for network connection (1)
• Crosslink Ethernet cable for direct PC connection (1)
• Mains cable (1)
• Operational manuals
• Carrying bag
• Fast transient analysis up to 10 MHz

Features:

• Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
• GPS time synchronization: Correlate data with events or datasets from other instruments with precision
• Flexible and fully configurable thresholds and scale factors: Allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
• Uninterrupted power supply (40 minutes): Never miss important events - even record the beginning and end of interruptions and outages to help determine the cause
• 10 MHz, 6000 Vpk waveform capture: Get a detailed picture of even the shortest event
• 2 GB data memory: Enables detailed, simultaneous recording of numerous power parameters for long periods of time
• Comprehensive software has: Provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
• Plug and play: Allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
• Rugged field design: Insulated housing and a solid state design with no rotating components enable reliable testing under nearly any conditions

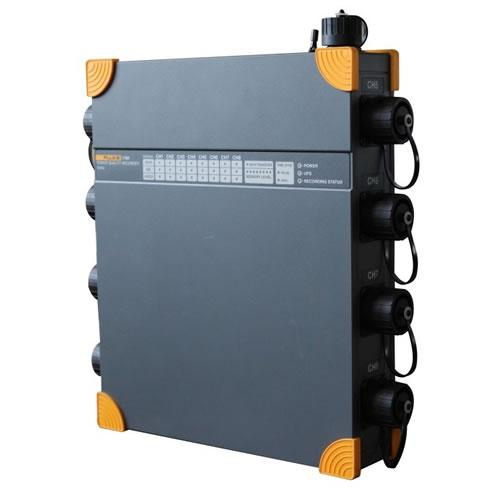

This Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks. The provides exceptional flexibility with the ability to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters; the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports.

Applications:

• Detailed disturbance analysis - Perform high-speed transient analysis and uncover root cause of equipment malfunction for later mitigation and predictive maintenance. The fast transient option, with its 6000 V measurement range, allows capture of very short impulses such as capacitor switching and lightning strikes.
• Class-A quality-of-service compliance - Validate incoming power quality at the service entrance. Thanks to Class A compliance, the Fluke 1760 allows undisputable verification. The Fluke 1760 Class A compliance has been independently verified at a world leading power quality laboratory.
• Event correlation at multiple locations - Utilizing GPS time synchronization, users can quickly detect where a fault occurred first, either inside or outside the facility. The accuracy of this time-stamping enables users with multiple 1760s on their network to understand the propagation of events across the network.
• Galvanic separation and DC coupling - Allows complete measurements on dissimilar power systems. For example troubleshoot UPS systems by simultaneously recording the battery voltage and power output.
• Power quality and power load studies - Assess baseline power quality to validate compatibility with critical systems before installation and verify electrical system capacity before adding loads.

For more information, please see Data Sheet
