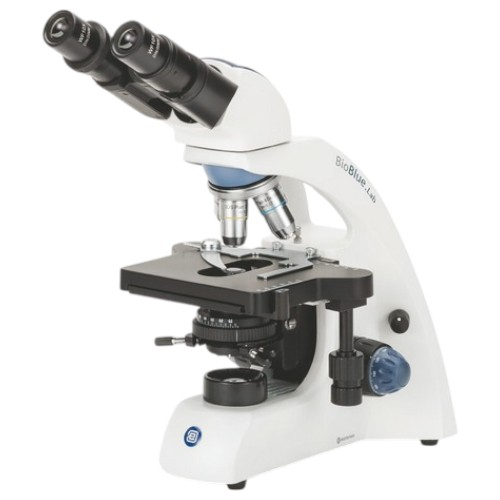

Euromex, EBB-1152-PLi, BioBlue.Lab Binocular Microscope with Plan PL 4/10/S40/S100x Oil IOS Objectives, Mechanical Rackless Stage and 3W NeoLED Illumination
EBB-1152-PLi Includes Only:
- Microscope
- Power cord
- Dust cover
- Spare fuse
- User manual
- 5 ml immersion oil
- White filter
- Polystyrene box
Features:
- WF10x/20mm eyepieces
- Reversed quadruple nosepiece
- Plan and plan IOS objectives
- Finity and infinity optical system
- Integrated mechanical stage
- NeoLED™ illumination
- Ergonomic carrying grip
Head
- It has 30° inclined 30mm tubes
- The interpupillary distance is adjustable between 48 to 75 mm
- It has a ±5 diopter adjustment on the left tube
- Head is 360° rotatable and secured with a screw
Nosepiece
Reversed quadruple nosepiece on ball bearings. Slot for analyzer (BB.9602).
Focusing
- coaxial coarse and fine adjustments with 200 graduations
- Precision 1.5 μm per graduation, 0.3mm per rotation
- Total travel is approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objectives
- The coarse adjustments are equipped with friction control
Stage
Rackless 150 x 140mm stage with mechanical 75 x 30mm X-Y translation stage.
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with a white filter.
Illumination
- It is supplied with an adjustable 3W NeoLED™ illumination system for increased light output
- Power supply with integrated 100-240 VAc
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
