| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Diagonal Size | 27" diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 23.54" x 13.24" / 597.888 mm x 336.312 mm |
| Resolution | 1920 x 1080 at 50, 60Hz |
| Other Supported Resolutions | - 640 x 480 60Hz
- 640 x 400 70Hz
- 720 x 400 70Hz
- 800 x 500 60Hz
- 800 x 600 56, 60Hz
- 1024 x 768 60Hz
- 1280 x 720 at 58Hz, 60Hz
- 1280 x 800 60Hz
- 1280 x 1024 60Hz
- 1366 x 768 60Hz, 60Hz RB
- 1440 x 900 60Hz, 60Hz RB
- 1680 x 1050 60Hz, 60Hz RB
- 1920 x 1080 50 60Hz
|
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | - LCD Panel: 300 nits
- TouchPro PCAP: 270 nits
|
| Response Time-total (typical) | 14 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB |
| Surface Treatment | Clear or Anti-glare |
| On Screen Display | - Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
- Controls: Menu, Power
- Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
- Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
- Lockouts: OSD, Power
|

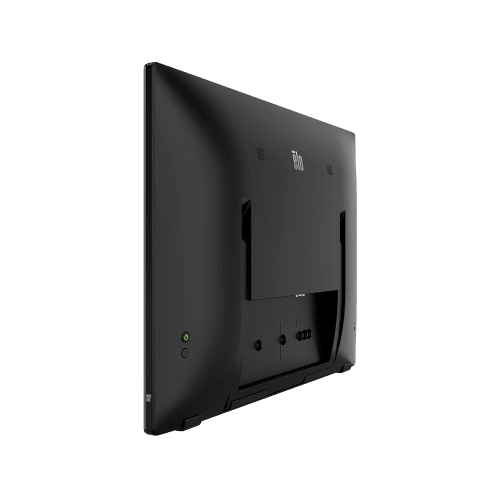

| I/O Ports | - AC Input (IEC60320 C6)
- Audio in/out
- VGA
- HDMI
- DisplayPort
- USB 2.0 Type B
- 2x USB 2.0 Type A
|
| Speakers | Two x 2W internal speakers |
| Video | - VGA (Female DB-15 connector)
- HDMI (receptacle type A)
- DisplayPort
|
| Input Video Frequency | - Horizontal: 30 - 82KHz
- Vertical: 50 - 75Hz
|
| Power | - AC power input connector: (IEC 60320 C6)
- AC input voltage range: 100-240VAC, 50/60Hz
|
| Power Consumption (Typical) | - Only display and touch function available:
- ON (Default - 80% Brightness): 16.5 W
- ON (Typical - 100% Brightness): 19 W
- SLEEP: 0.5 W
- OFF: 0.16 W
|
| Monitor Dimensions (without Stand) | 24.65" x 14.68" x 1.72" / 626.2 mm x 372.8 mm x 43.8 mm |
| Weight (Unpackaged) | 13.89 lbs / 6.3 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% (38.7°C max wet bulb temperature) |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit |
| Other Features | - Energy Star 8.0
- TUV Rheinland (Flicker Free)
- TUV Rheinland (Low Blue Light)
- Power collection function via DDCCI
|
