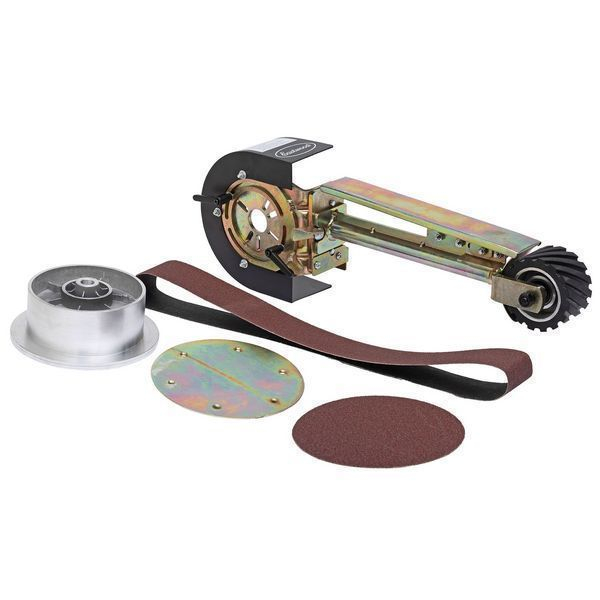

68199 Includes Only:
- (1) 2-in. x 48-in. 80 grit Abrasive Belt
- (1) 7-in. PSA Abrasive Disc, 80 grit

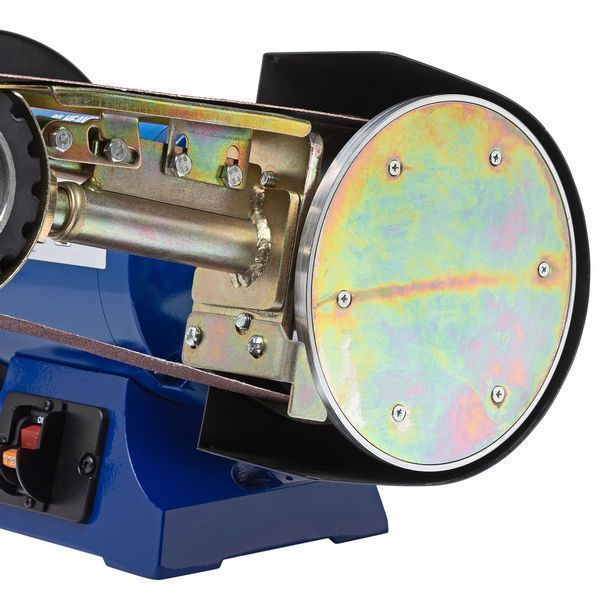

- (1) Wheel Plate
- (1) Belt Drive/Disc Wheel
- (1) Belt Frame Mounting Flange
- (1) 2x48 Big Wheel Belt Frame Assembly
- (Guard, Belt Support, Contact Wheel, Hardware installed)
- (1) 20mm I.D. Locating Collar
- (1) 17mm I.D. Locating Collar
- (2) Low-Profile Adjustable Handles M6 with M6x25 Carriage Bolts, Washers
- (3) M5x16 Round Head Screws, Captured Washers
- (6) M4x12mm Flat Head Screws
Features:

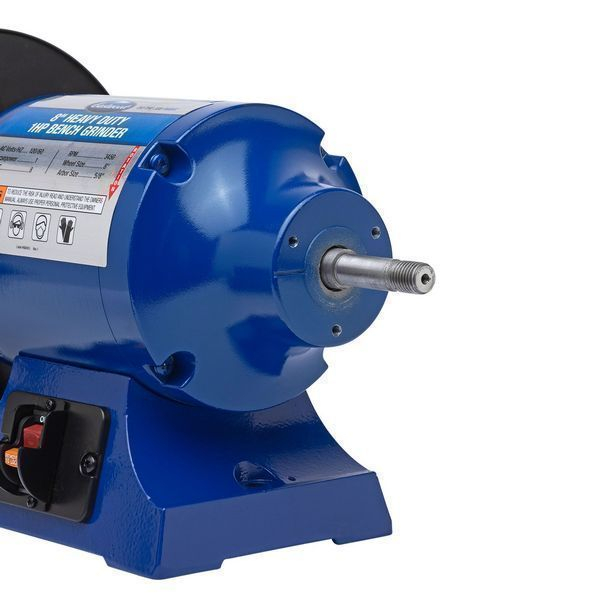

- Fits on Bench Grinders with a 5/8-in. Diameter Shaft
- Turns Your Standard Grinder Into a Belt and Disc Sander
- Tool-Less Swivel Adjustment Enables Quick Arm Position Adjustments
- Tool-less Belt Tracking Adjustment, Quick-Change Belt Replacement and Belt Tensioning Mechanism
- Recommended For Grinders with a 1 HP Motor and Maximum Speed of 3600 RPM

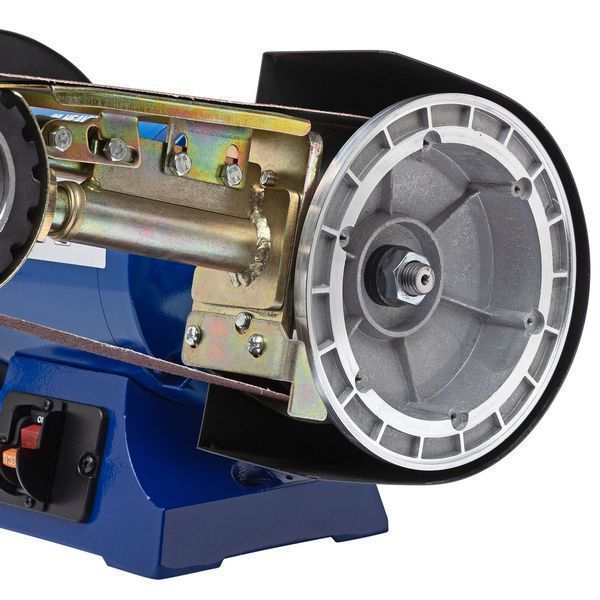

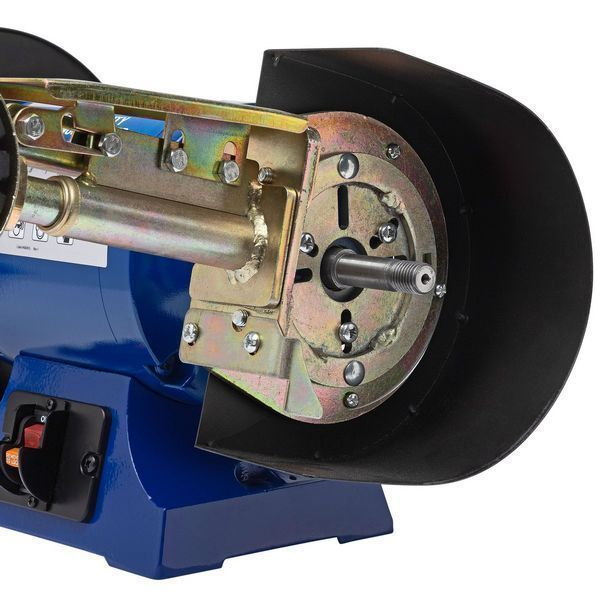

The Eastwood Versa-Grind Belt Grinder Attachment is designed to bolt to your existing bench grinder and transform it into an extremely versatile, enhanced grinding solution.

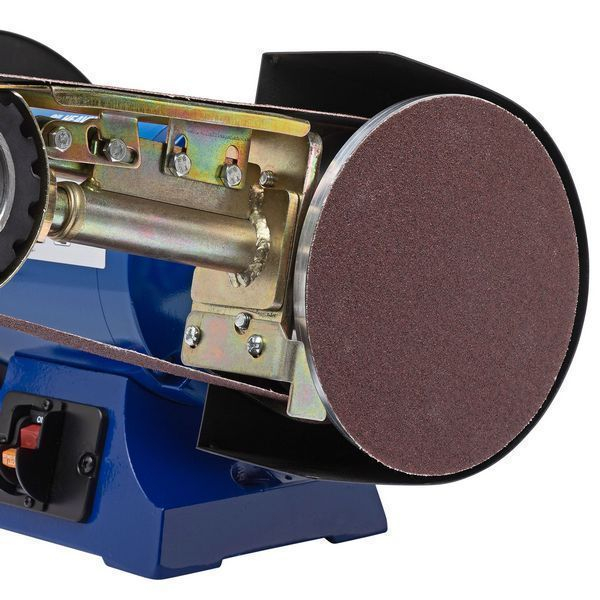

This attachment features a large abrasive Belt with a platen-supported side for flat grinds, and a slack side for grinding blades or round objects. A rubber tread Contact Wheel at the front of the Belt allows grinding inside-radius features. A 7 inch abrasive disc, at the side of the attachment, comes with provisions for an adjustable table. Eastwood's unique tool-less swivel adjustment enables arm position adjustments in a matter of seconds. Tool-less belt tracking adjustment, and a quick-change belt replacement and belt tensioning mechanism, allow fast setup and configuration changes for unparalleled versatility.
For more information, please see
Data Sheet
