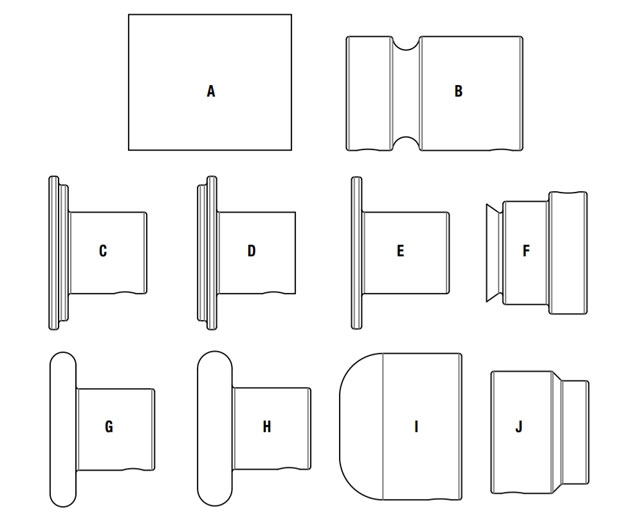

20267 Includes Only:
- (1) Polyurethane Lower Wheel (A)
- (1) 180 Degree Lower Die (B)
- (1) Inside Offset Die (C)
- (1) Outside Offset Die (D)
- (1) Knife Edge Tipping Die (E)
- (1) Lower Edge Forming Die (F)
- (1) 3/8 in Tipping Die (G)
- (1) 1/2 in Tipping Die (H)
- (1) Round Tipping Die (I)
- (1) Lower Forming Die (J)
Features:
- Fits most bead rollers with a 22mm shaft
- Includes 9 steel dies and 1 polyurethane lower wheel
- Create offsets and flanges, form style lines, contours and channels
- Dies are machined out of CR12 steel with a 35 HRC hardness
Includes 10 Forming Dies

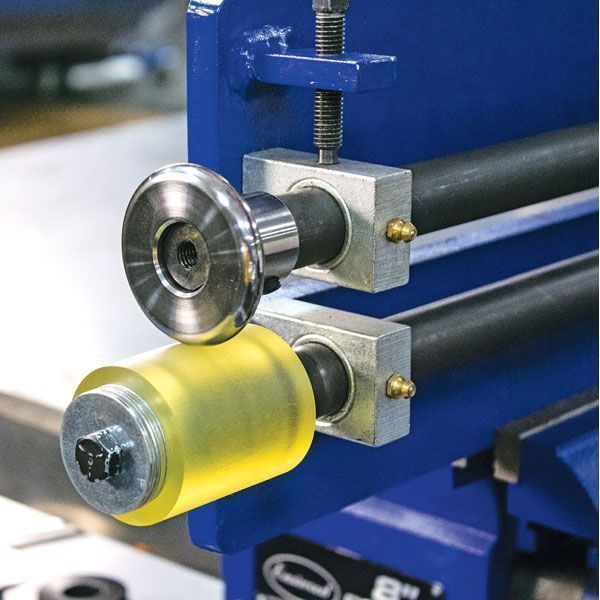

This kit includes an additional 10 dies to use with any bead roller with a 22mm shaft. While most metal bead rollers come with basic dies, some enthusiasts want to go beyond these options for their custom creations. With these additional dies on your bead roller you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower "skate board" wheel, which can be used with a variety of upper dies to modify the bends. The dies includes in this kit are inside and outside offset dies, 3/8 and 1/2 inch tipping dies, round and knife edge tipping dies, 180 degree lower die, lower edge forming die and a lower forming die. All are made of CR12 steel with a Rockwell hardness of 35 HRC.
This bead roller forming die bundle fits all three Eastwood manual bead rollers along with most universal rollers that have a 22mm shaft (They cannot be used with Eastwood motorized bead roller).
Fabricate More with your Bead Roller
The Eastwood Bead Roller Forming Dies enable you to take your bead roller to the next level. This kit enables you to form, bend, stretch and strengthen metal. Fabricate custom panels and complex parts. Create style lines, offsets, deep channels, contours and other intricate forms in steel and aluminum. Fits the Eastwood Bead Roller (32044, 21487, 21327 ) and most bead rollers with a 22mm shaft. These are not compatible with the Eastwood 20622 Motorized Bead Roller.
