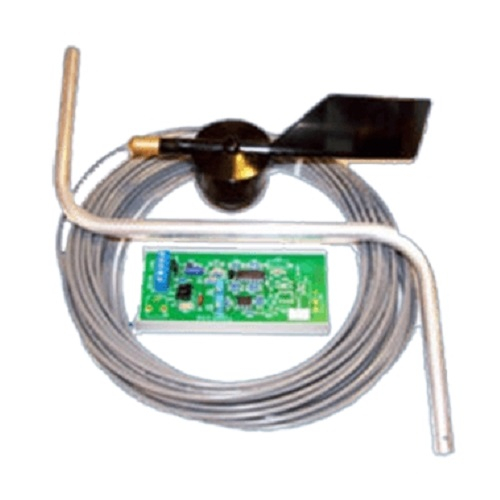

Comptus, A70-DL0-N4XFG, Wind Direction Sensor, 12-24 VDC, 4-20mA, 0-360 Degrees NEMA 12 Steel

Features:

• The A70 Wind Azimuth Transmitter monitors the signal from the Model A75-302 precision Potentiometric Wind Vane.
• The transmitter provides constant excitation for the vane.
• It also scales the signal from the vane to produce the desired output signal.
• The vane has a 4° dead band centered on North.
• Sensor operating range is -40 / 60° C.
• The system is provided with 60 feet of cable, clamps and an S mast for mounting the direction vane.

These units are used in conjunction with electronic data collection systems or for input to control systems. They are readily combined with meter relays to provide custom controls. Each system is provided with a detailed instruction manual.

For more information, please see Data Sheet
