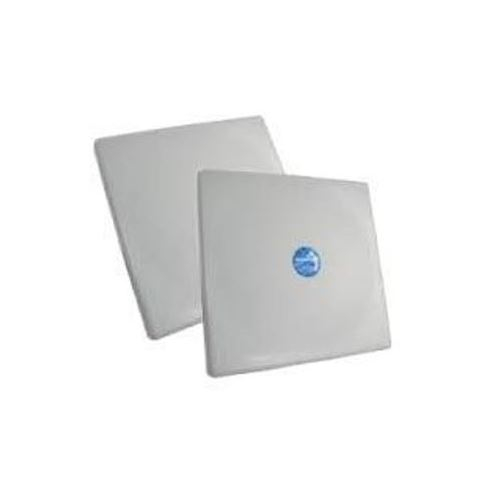

Comnet, NWK9, NetWave Ultra-High Throughput Impact-Resistant Hardened Wireless Ethernet Kit

Features:

• Up to 500 Mbps throughput
• Lifetime Warranty
• Sturdy cast aluminum enclosure
• IEEE802.3at PoE Compliant PD
• Over current protection and 3 layers of Ethernet surge suppression on the PD port
• 802.11ac Compliant
• Distances up to 2 mi (FCC) or 2 km (ETSI)
• Distances up to 4 mi (FCC) with MAC Lock enabled
• Environmentally Hardened -40° to +70°C
• Meets class IP67 dust and water immersion protection standards
• ETSI Standards (EU Region only):
  • DFS Dynamic Frequency Selection
  • TPC Transmit Power Control
• Secure transmission: WPA2 - AES or TKIP encryption
• ComNet Antenna alignment feature eases installation and setup
• RF Spectrum Survey Tools
• Antenna Alignment Tools
• LED array displays unit operational status along with received signal strength

Applications:

• High Throughput Back Haul Link for installations that require connecting to more than one Ethernet device
• Ideal for PoE Camera connectivity
• Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
• Integration of Ethernet where right-of-way issues mandate wireless communications
• ITS traffic signalization networks and Video Detection Systems (VDS)
• Multicast traffic-based video systems
• ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
• Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
• Electrical substation video and perimeter surveillance

The NetWave NWK9 ultra-high throughput, impact-resistant hardened wireless Ethernet transmission kit comes preconfigured with one Client and one Access Point. This single radio model was designed for high throughput point-to-point applications and comes with an integrated 19dBi, 17° beamwidth antenna. The NWK9[E] supports up to 500 Mbps throughput using 802.11ac MIMO technology. The units can be powered by an 802.3af/at PoE compliant device or through a soldseparately PoE injector with the second Ethernet port serving as an IEEE802.3af power source. The NWK9 is FCC certified for use in North America and the NWK9E is ETSI, DFS and TPC certified for use in the European Union.
